Setting up Compax3
I11 T11 192-120101 N6 - March 2004 71
4.4.1.4 Advanced control parameters

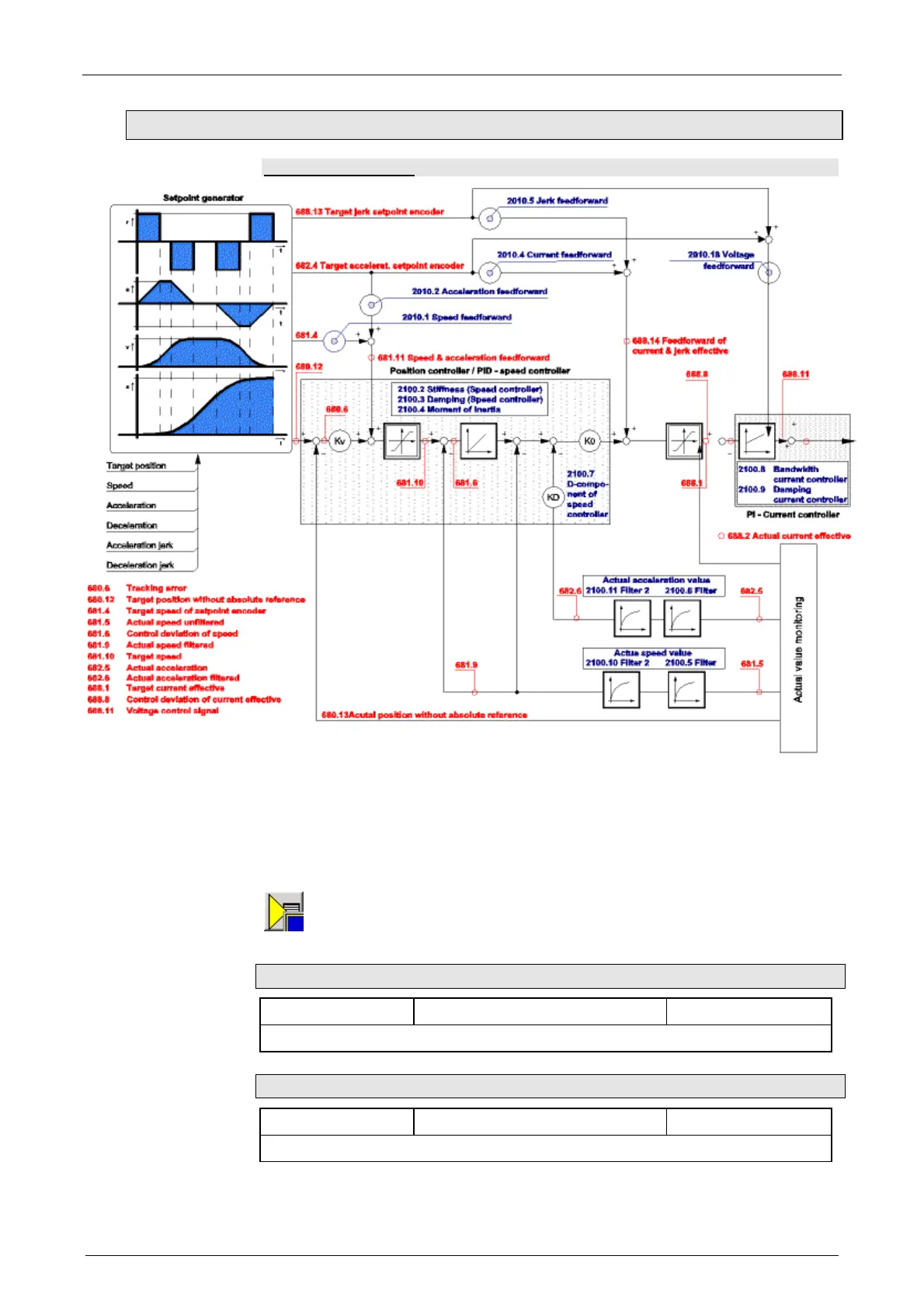

Controller structure:
The status values are divided into 2 groups (unser levels):
standard: here you can find all important status values
advanced: advanced status values, require a better knowledge
The user level can be changed in the optimization window (left hand side lower part
under selection (TAB) "optimization") with the following button.
2100.8: Current controller bandwidth
Unit: % Range: 10 ... 200 Standard value: 50%
2100.9: Damping current controller
Unit: % Range: 0 ... 500 Standard value: 100%
Switching of the
user level
