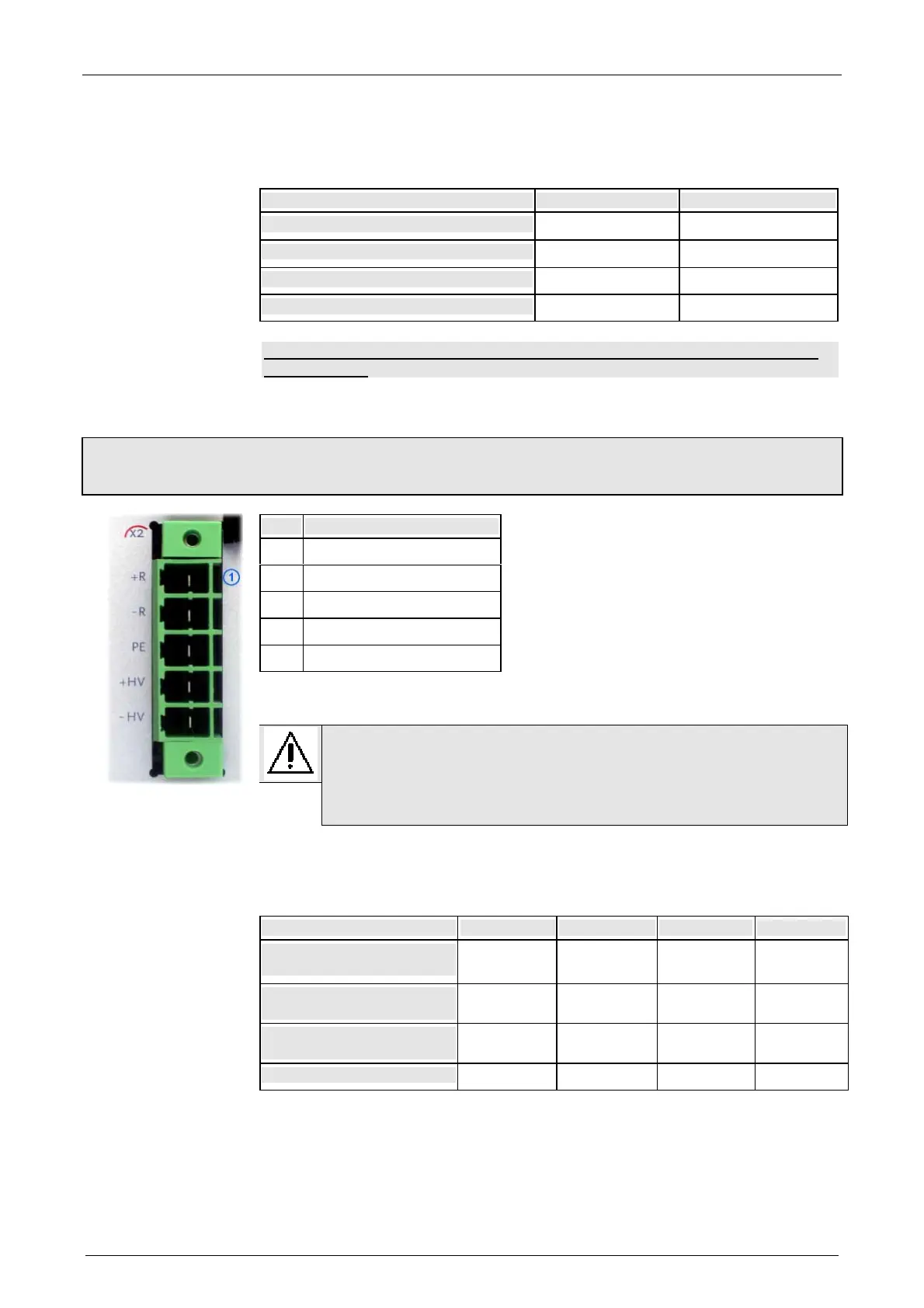

Plug and connector assignment Compax3
Ballast resistor / high voltage supply plug X2 for 400VAC devices
I11 T11 192-120101 N6 - March 2004 23
Brake operation Compax3 Sxxx V2
Controller type S025 V2 S063 V2
Capacitance / storable energy
560µF / 15Ws 1120µF /30Ws
Minimum ballast - resistance
100Ω 56Ω
Recommended nominal power rating
20 ... 60W 60 ... 180W
Pulse power rating for 1s
1kW 2.5kW
The power voltage DC of two Compax3 V2 devices (230V devices) must not
be connected.
3.1.5. Ballast resistor / high voltage supply plug X2 for 400VAC
devices
PIN Description
1 + Ballast resistor
2 - Ballast resistor
3PE
4 + DC high voltage supply
5 - DC high voltage supply
Caution! The connector assignment of X2 is changed!
Please note the screen printing on the front plate of the
device: this is valid
Compax3 Sxxx V4 brake operation
Controller type S038 V4 S075 V4 S150 V4 S300 V4
Capacitance / storable
energy
235µF / 37Ws 470µF / 75Ws 690µF /
110Ws
1100µF /
176Ws
Minimum ballast -
resistance
100Ω 56Ω 22Ω 15Ω
Recommended nominal
power rating
60 ... 250W 60 ... 500 W 60 ... 1000 W 60 ... 1000 W
Pulse power rating for 1s
2.5kW 5kW 10 kW 42kW
Caution!

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
