Compax3 device description

I11 T11 192-120101 N6 - March 2004 31

3.2 Installation and dimensions Compax3

In this chapter you can read about:

Installation and dimensions Compax3 S0xx V2...............................................................................31

Installation and dimensions Compax3 S038 and S075 V4 ..............................................................32

Installation and dimensions Compax3 S150 V4 ..............................................................................33

Installation and dimensions Compax3 S300 V4 ..............................................................................34

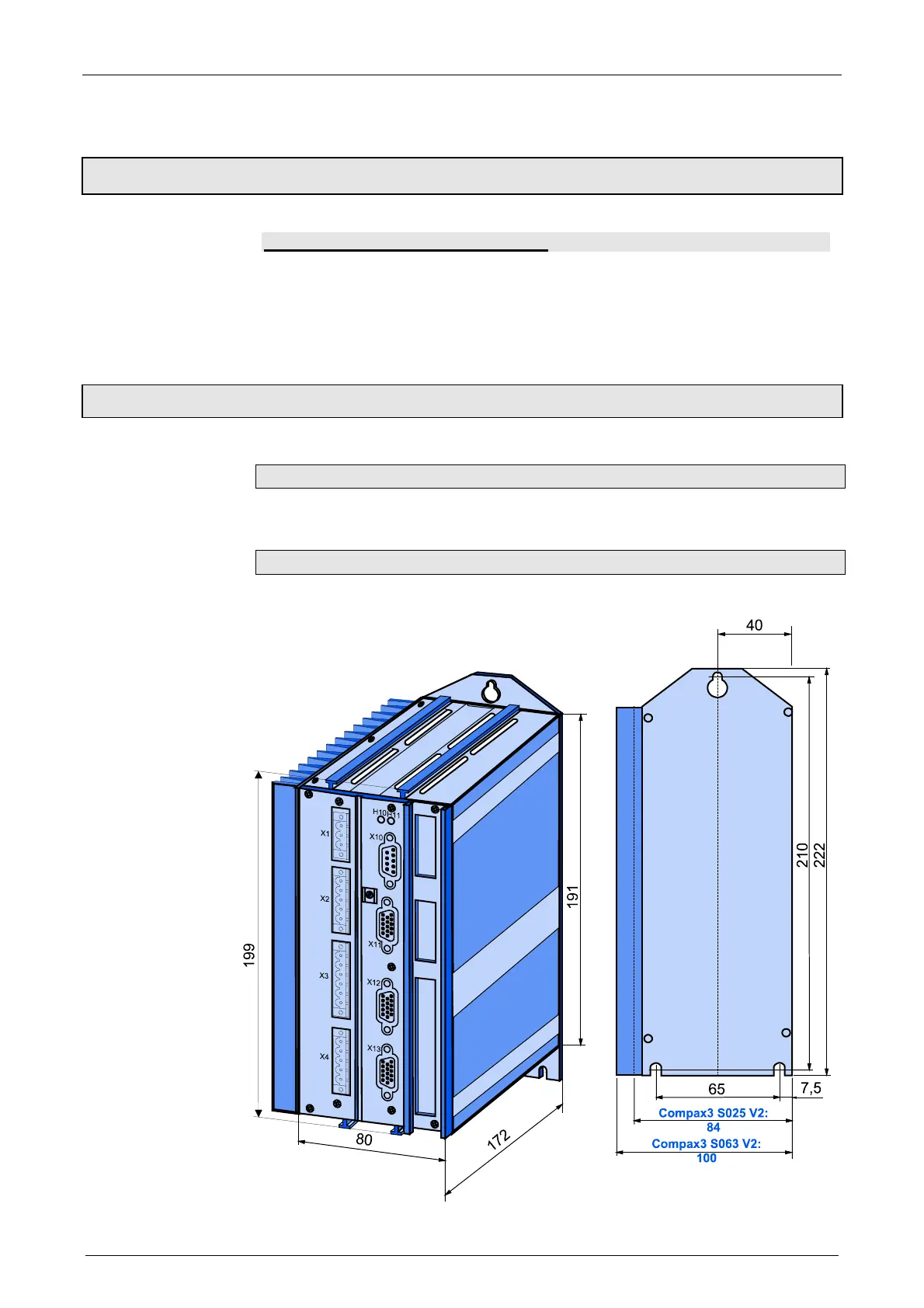

3.2.1. Installation and dimensions of Compax3 S0xx V2

Mounting:

3 socket head screws M5

Mounting spacing:

Device separation 15 mm
