Compax3 Accessories
136 I11 T11 192-120101 N6 - March 2004

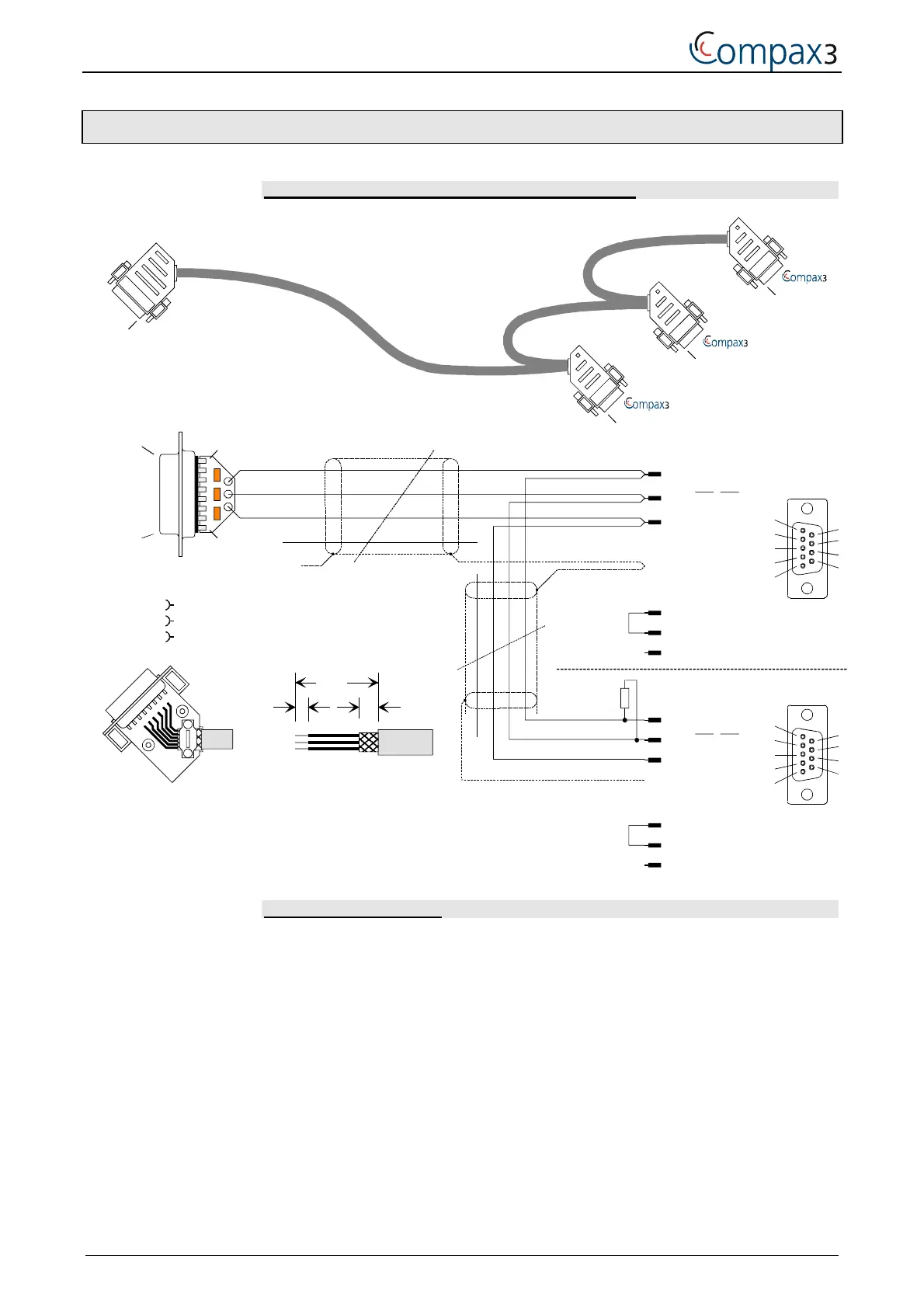

8.10.2. RS485 cable to Pop
SSK27: Connection Pop - Compax3 - Compax3 - ...
5
3
Pin 1
7
Pin 1
4 mm 6 mm
26 mm
7 - 13
1 - 4
15
Lötseite
solder side
1
2
3
4
5
6
7
8
9
NC
NC
NC
Länge / Length A
Länge / Length B
Pin 1
Pin 1
Länge / Length B
5
3
7
1
NC 4,6,8
TxD_RxD
GND
Lötseite
solder side
1
2
3
4
5
6
7
8
9
BN
WH
GN
YE
TxD_RxD
TxD_RxD
GND
TxD_RxD
CHA+
CHA-
GND
BN
WH
G
N
YE
9
BN
WH
YE
1
NC 4,6,8
9
RD
RD
X2
X3
X4
14
6
5
R21 nur im letzten Stecker
8
11
15
_n
_2
_1
R21 only on the last connector
Schirm großflächig auf Gehäuse legen
Place sheath over large area of housing
Schirm großflächig auf Gehäuse legen
Place sheath over large area of housing
Brücke /
Bridge
Brücke /
Bridge
Schirm großflächig auf Gehäuse legen
Place sheath over large area of housing
Order code: SSK27/nn/..
Length A (Pop - 1. Compax3) variable (the last two numbers according to the
length code for cable, for example SSK27/nn/01)
Length B (1. Compax3 - 2. Compax3 - ... - n. Compax3) fixed 50 cm (only if there is
more than 1 Compax3, i.e. nn greater than 01)
Number n (the last two digits)
SSK27/05/.. for connecting from Pop to 5 Compax3.
SSK27/01/.. for connection from Pop to one Compax3
Examples:
