Compax3 Accessories
I11 T11 192-120101 N6 - March 2004 131
8.8 EAM06 terminal block for inputs and outputs
The terminal block EAM06/.. can be used to route the Compax3 plug connector
X11 or X12 for further wiring to a terminal strip and to a Sub-D plug connector.
Via a supporting rail (Design:
or ) the terminal block can be installed on
a mounting rail in the control cabinet.
EAM06/ is available in2 variants:
! EAM06/01: terminal block for X11, X12 without luminous indicator
! EAM06/02: terminal block for X12 with luminous indicator
Corresponding connecting cables EAM06 - Compax3 are available:
! From X11 - EAM06/01: SSK23/..
! From X12 - EAM06/xx: SSK24/..

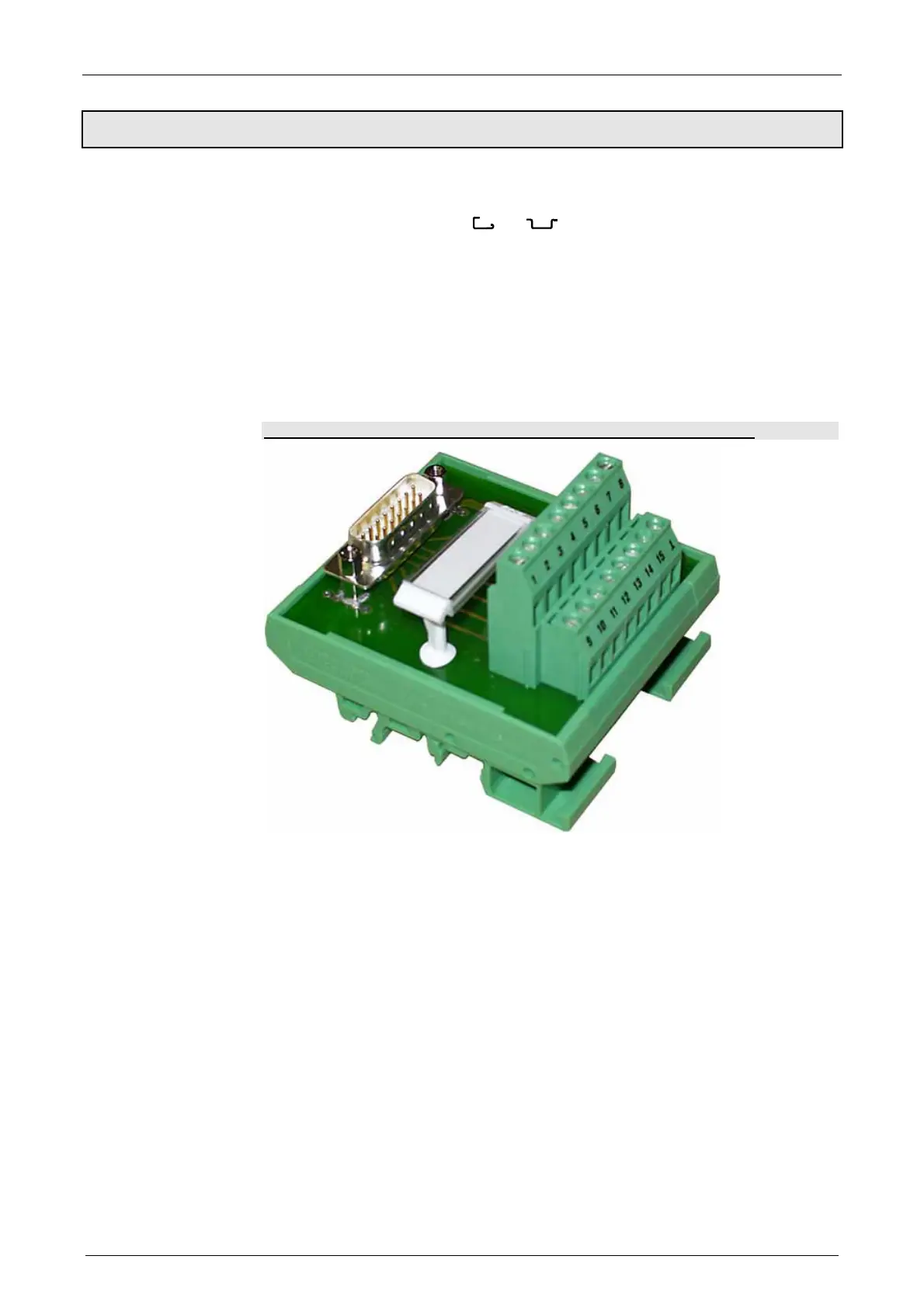

EAM6/01: terminal block without luminous indicator for X11 or X12
