Parker Compax3 S150 V4 User Manual

Parker EME
Compax3 Accessories
I11 T11 192-120101 N6 - March 2004 125

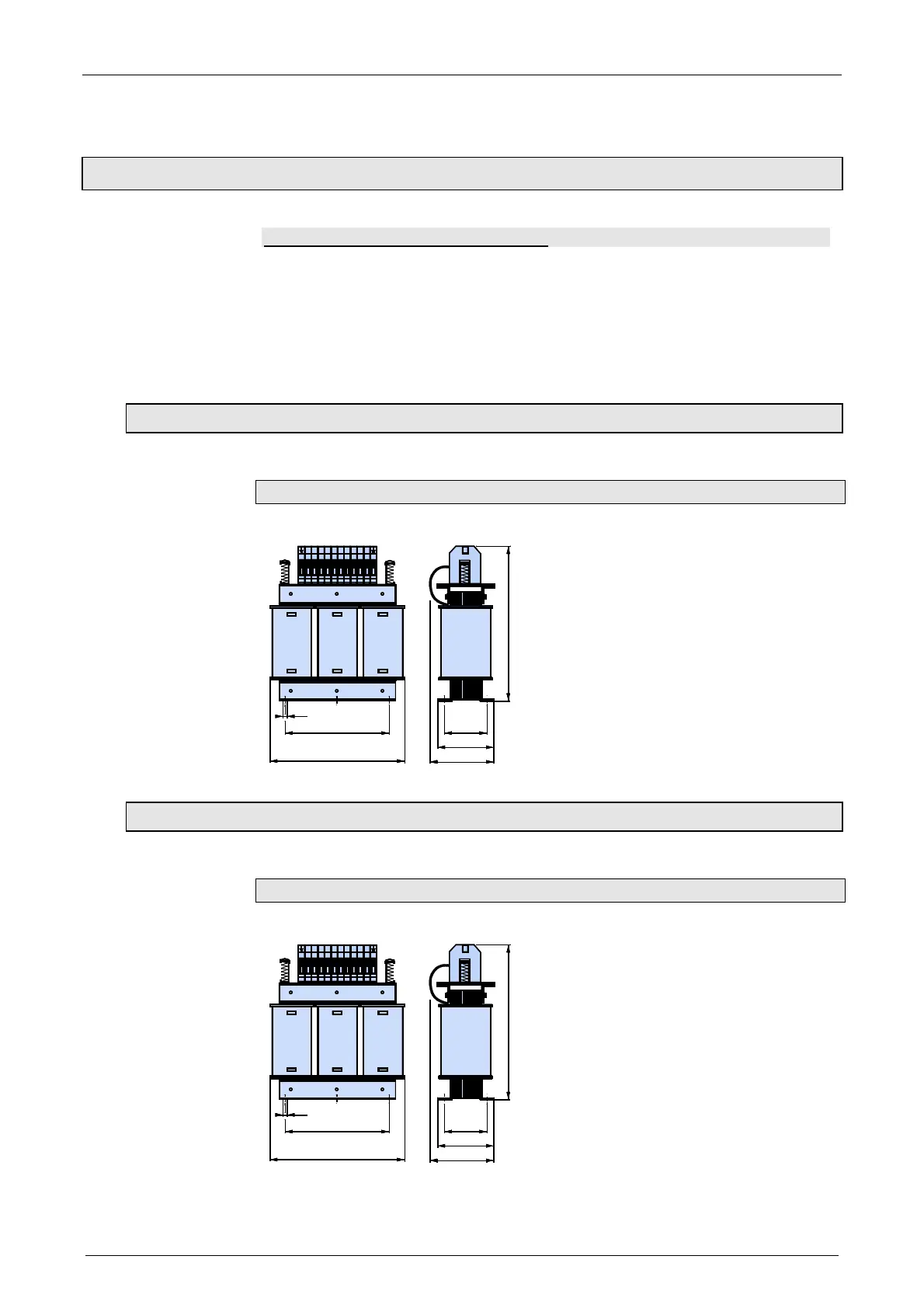

8.5.2. Motor output filter
In this chapter you can read about:
Motor output filter MDR01/04........................................................................................................125
Motor output fiter MDR01/01.........................................................................................................125
Motor ouptut filter MDR01/02........................................................................................................126
Wiring of the motor output filter.....................................................................................................126
We offer motor output filters for disturbance suppression when the motor
connecting cables are long (>20m):
8.5.2.1 Motor output filter MDR01/04
up to 6.3A rated motor current
Dimensional drawing:
120
54
95
5
90
40
1
7
0
U1 V1 W1 + - U2 V2 W2 + -
8.5.2.2 Motor output filter MDR01/01
Up to 16 A rated motor current
Dimensional drawing:
150
67
95
6
113
50
1
9
5
U1 V1 W1 + - U2 V2 W2 + -
