I11 T11 192-120101 N6 - March 2004 123
8.5 EMC measures
In this chapter you can read about:
Mains filter....................................................................................................................................123
Motor output filter..........................................................................................................................125
8.5.1. Mains filter
For radio disturbance suppression and for complying with the emission limit values
for CE compliant operation ((see on page 14 ) we offer mains filters:
Observe the maximum permitted length of the connection between the mains filter
and the device:
! unshielded <0.5m;
! shielded: <5m (fully shielded on ground – e.g. ground of control cabinet)
8.5.1.1 Mains filter NFI01/01
Mains filter for Compax3 S025 V2 and Compax3 S063 V2

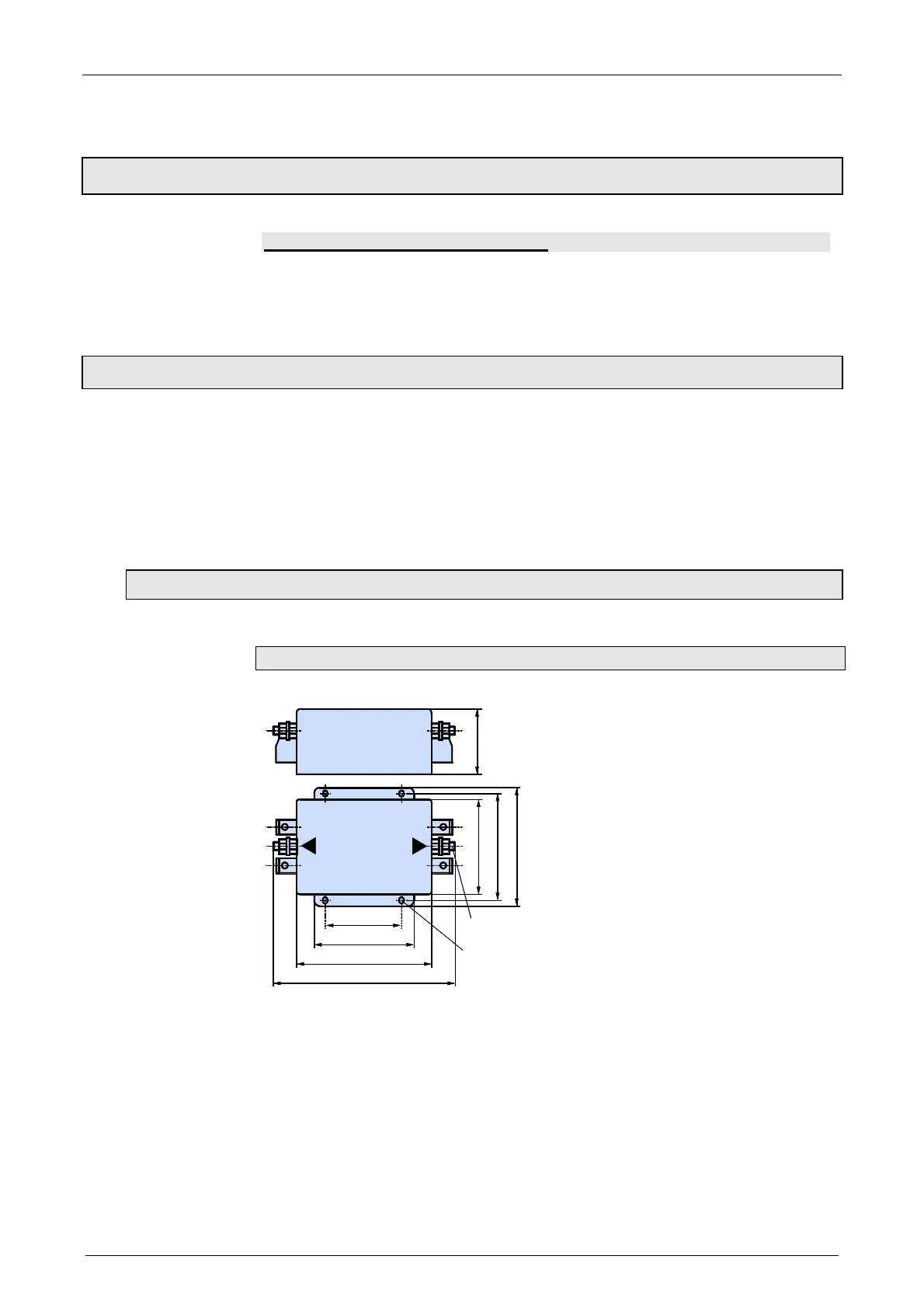

Dimensional drawing:
50,8±0,3
85,4
116
139
7
9
,
5
1
0
1
8
8
,
9
±
0
,
4
5
5
,
5
Ø 4
5,2 x 4
L
I
N
E
L
O
A
D
