Setting up Compax3
58 I11 T11 192-120101 N6 - March 2004
START 2 Positioning data record address is read in
Positioning data record 7 is executed
START 3 Positioning data record address is read in
Positioning data record 13 is executed
Defining the STOP function
The function of the input I0 "no STOP" (I0=0V = STOP) can be set.
STOP and terminate the current positioning
A new START does not continue the positioning at the interruption point.
The positioning address is read in new and the positioning data record is executed
completely.

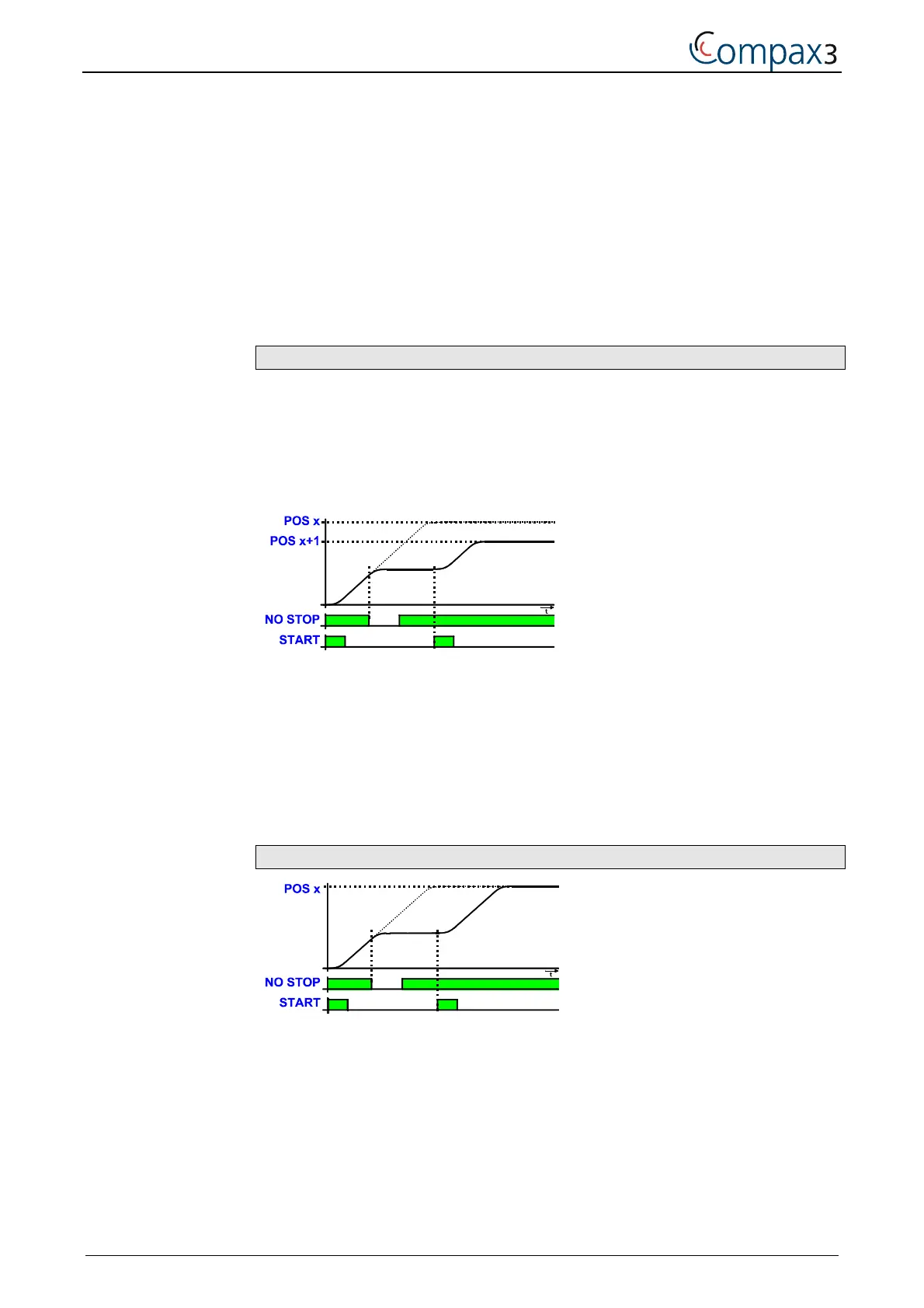

Single positioning example: The positioning data record address “Pos x+1” was
created before the new START.
NO STOP: I0: no STOP
START: I1: START-Signal (with edge)
! On STOP with termination, the sequentional positioning procedure is
discontinued.
! The positioning data record address is read in new.
STOP and interruption of the current positioning procedure.
STOP with
termination
Single positioning
Sequential
positioning
STOP without
termination
