Parker Compax3 Series User Manual

Setting up Compax3 C3I22T11
124 192-120114 N5 C3I22T11 June 2008

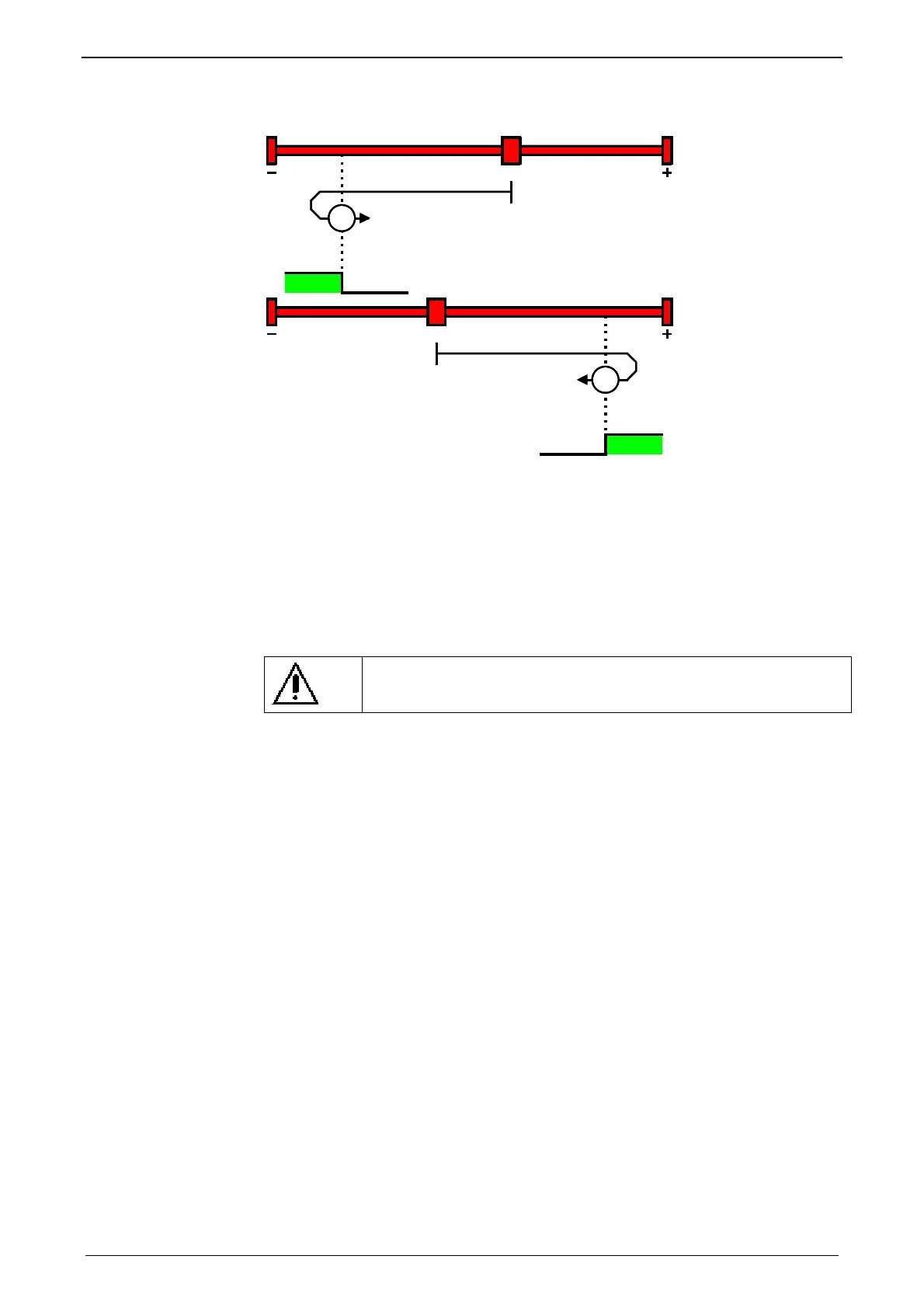

MN-M 17.18: Limit switch as machine zero
17
1
18
1
1: Logic state of the direction reversal switch
Function Reversal via Current threshold
If no direction reversal switches are available, the reversal of direction can also be
performed during the machine zero run via the function ”direction reversal via Cur-
rent threshold"
Here the drive runs towards the mechanical limit mounted at the end of the travel
range.
When the settable Current threshold is reached, the drive is braked and changes
the travel direction.
Caution!
Wrong settings can cause hazard for man and machine.
It is therefore essential to respect the following:
 Choose a low machine zero speed.
 Set the machine zero acceleration to a high value, so that the drive changes di-
rection quickly, the value must, however, not be so high that the limit threshold is
already reached by accelerating or decelerating (without mechanical limitation).
 The mechanical limitation as well as the load drain must be set so that they can
absorb the resulting kinetic energy.

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
