9.4.2.5 Braking resistor BRM11/01 & BRM12/01

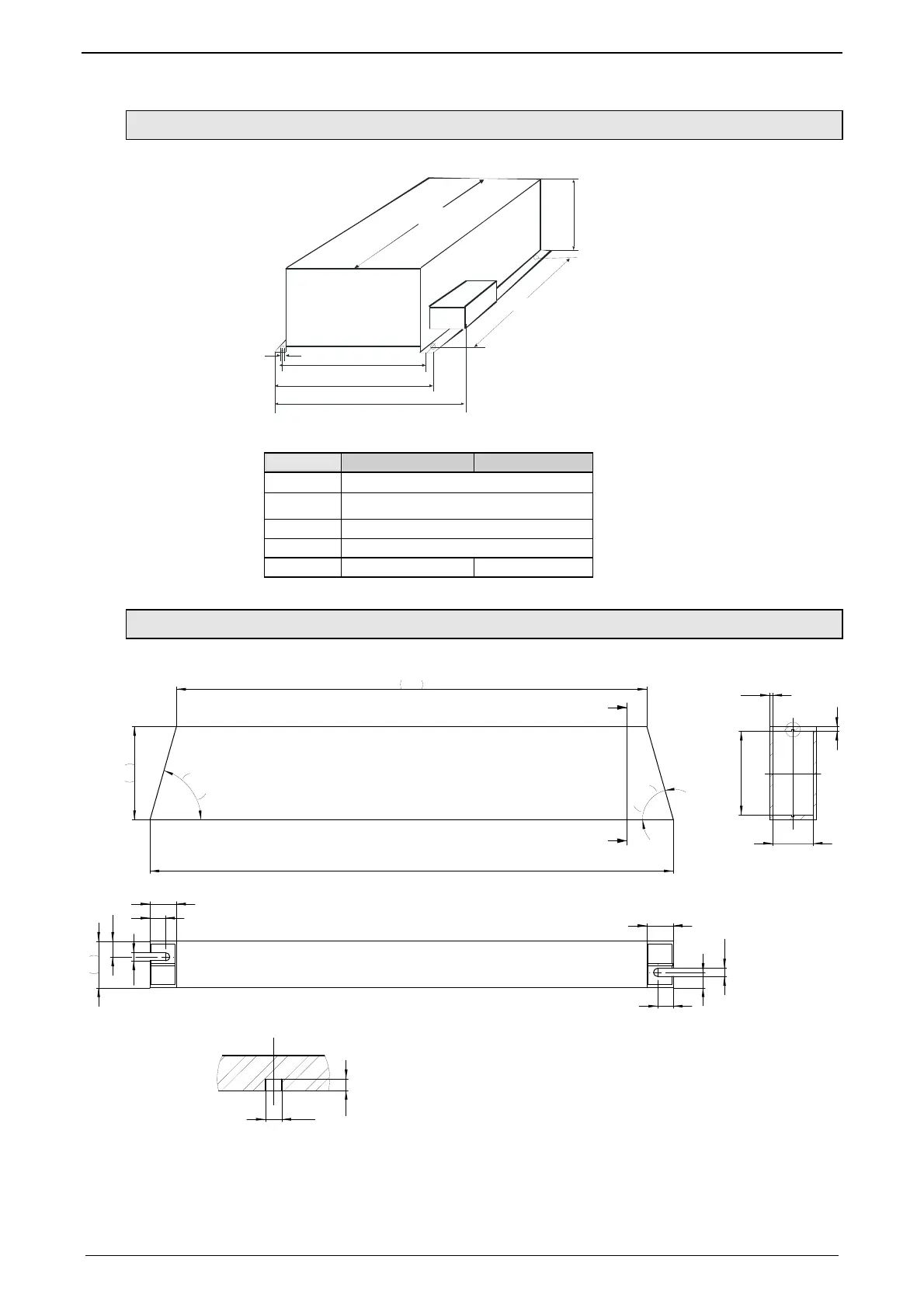

Dimensional drawing:
H
490
380
Ø10,5
B2
B1
B
Dimensions in mm:
BRM11/01 BRM12/02
B
330
B1
295
B2
270
H
260
Weight
6,0 7,0
9.4.2.6 Braking resistor BRM13/01 & BRM14/01
Dimensional drawing:
303
60
337
7
4
,
2
°
7
4
,
2
°
30
17
5,4
10
10
5,4
10
10
17
54
±0,2
26
±0,2
2
3
1,4
1
A
A
A-A
C
C (5 : 1)
Stated in mm
