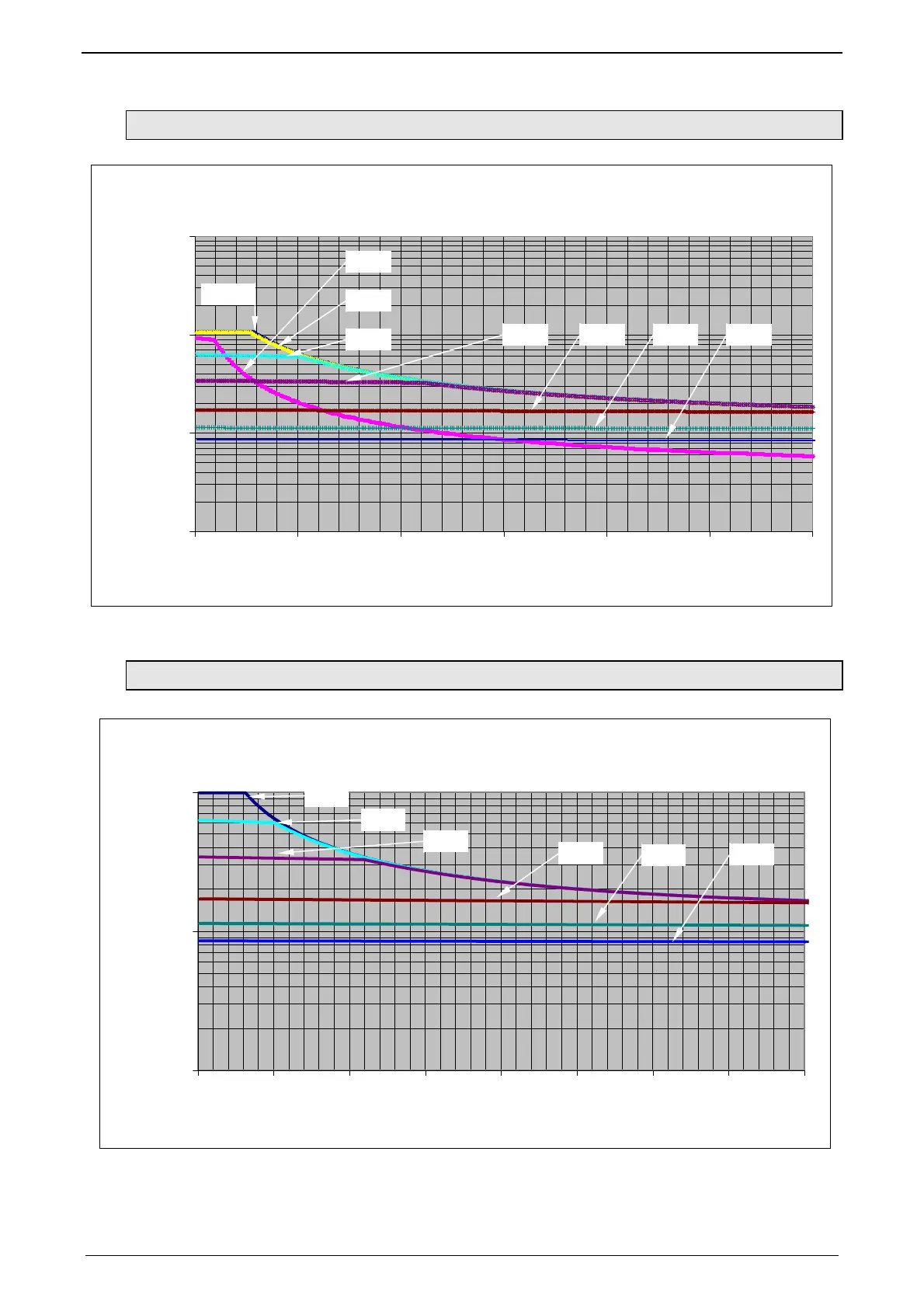

9.4.1.8 Permissible braking pulse power: BRM05/02 with C3S075V4
BRM05/02 (400/480V)
100
1000
10000
100000
00,511,522,53
Braking time [s]
PBdyn [W]
9.4.1.9 Permissible braking pulse power: BRM04/01 with C3S150V2
BRM04/01 (230V_3AC)
100
1000
10000
00,511,522,533,54
Braking time [s]
PBdyn [W]
F=20
F=10
F=5
F=2
F=1
F=0.5
F=50
F=100
F=10
F=20
F=5
F=2
F=1
F=0.5

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
