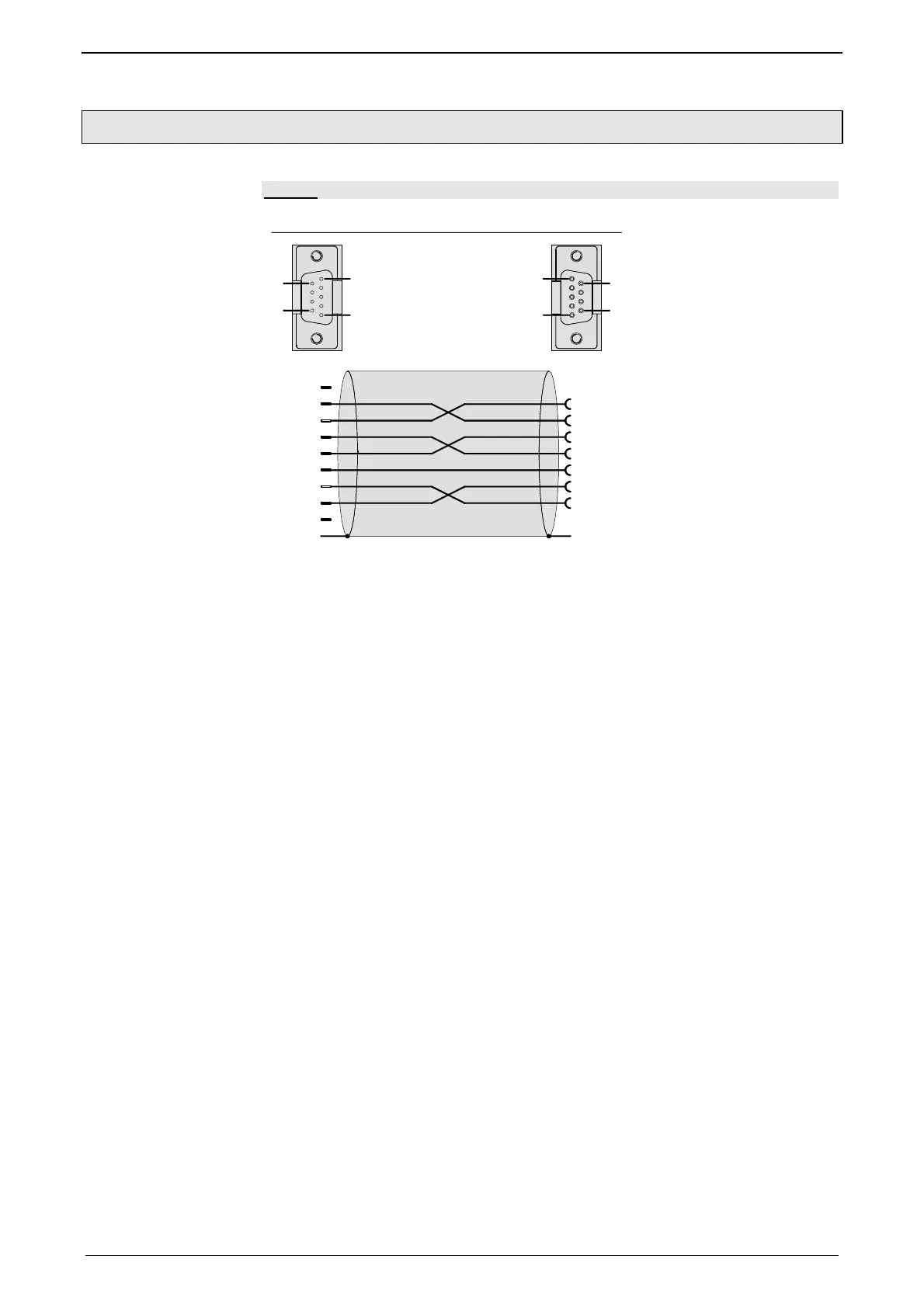

9.9.1. RS232 cable
SSK1/..
--->PC
2
3
4
6
5
7
8
RxD
TxD
DTR
DSR
GND
RTS
CTS
2
3
4
6
5
7
8
RxD
TxD
DTR
DSR
GND
RTS
CTS
9+5V
1n.c.
7 x 0,25mm + Schirm/Shield
1
5
6
9
1
5
6
9
X10 <---
You will find the length code in the
accessories order code (see page 342).
