Setting up Compax3
192-120114 N5 C3I22T11 June 2008 161
4.3.2. Scope
In this chapter you can read about:
Monitor information...........................................................................................................161
User interface ...................................................................................................................162
Example: Setting the Oscilloscope...................................................................................167
The integrated oscilloscope function features a 4-channel oscilloscope for the dis-
play and measurement of signal images (digital and analog) consisting of a graphic
display and a user interface.
Special feature:
in the single mode you can close the ServoManager after the activation of the me-
asurement and disconnect the PC from Compax3 and upload the measurement
into the ServoManager later.

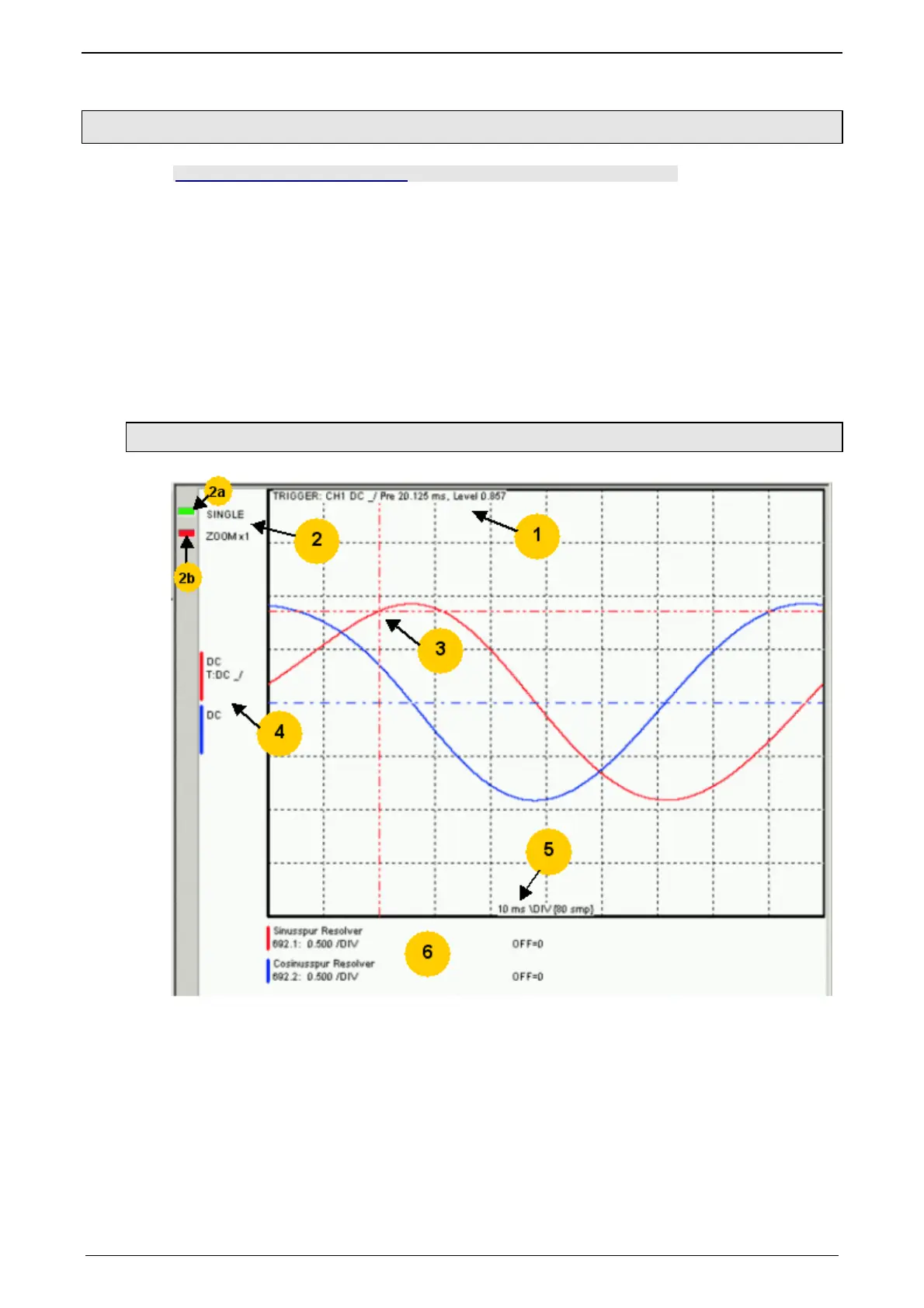

4.3.2.1 Monitor information
1: Display of the trigger information
2: Display of the operating mode and the zoom setting
 2a: Green indicates, that a measurement is active (a measurement can be star-
ted or stopped by clicking here).
 2b: Active channel: the active channel can be changed sequentially by clicking
here (only with valid signal source).
3: Trigger point for Single and Normal operating mode
4: Channel information: Type of display and trigger settiing
5: X-DIV: X deviation set
6: Single channel sources

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
