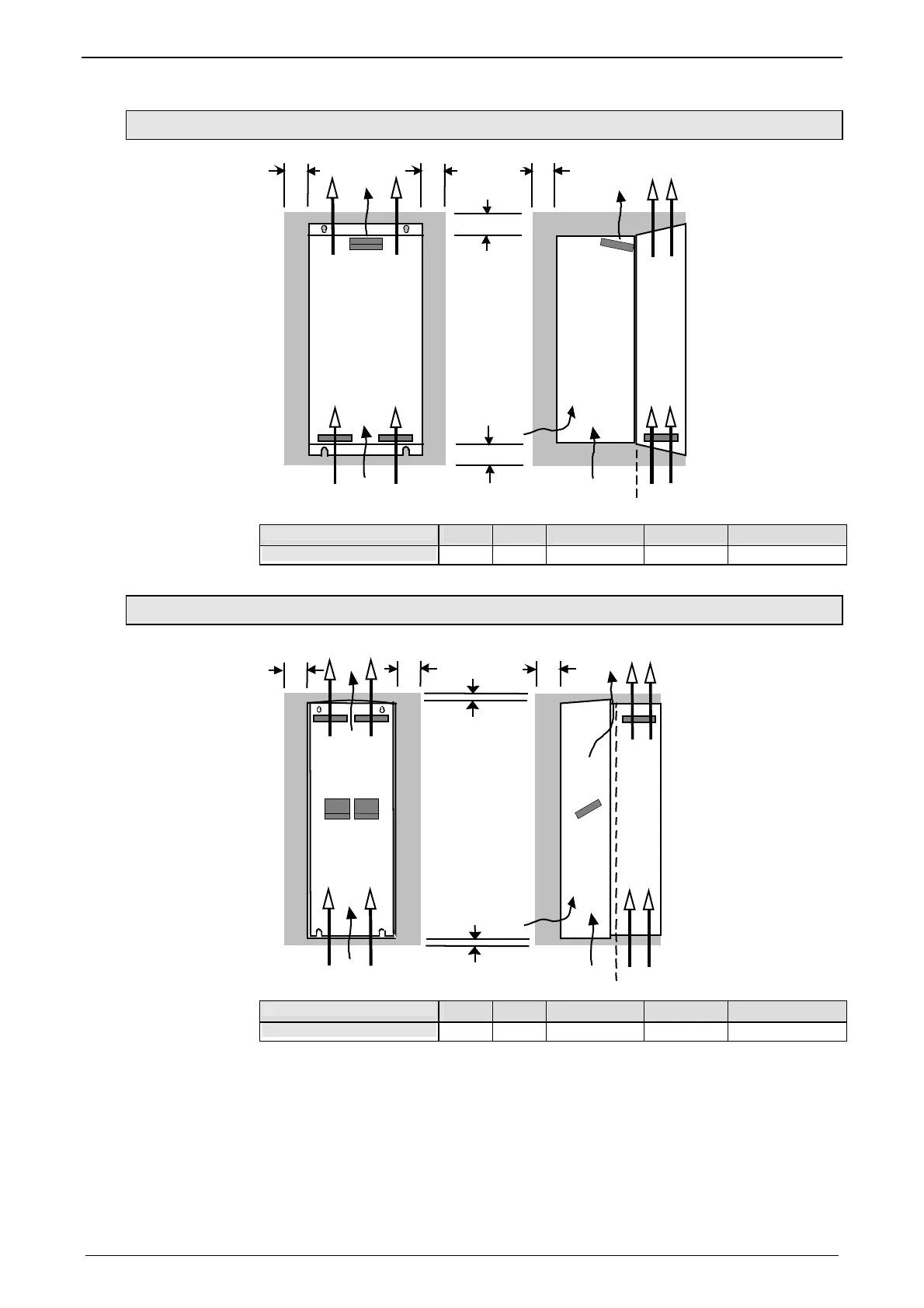

3.9.3.1 Mounting distances, air currents Compax3H050V4
J
I
K
M
L
in mm
I J K L M
C3H050V4
15 5 25 70 70
3.9.3.2 Mounting distances, air currents Compax3H090V4
J
I
K
M
L
in mm
I J K L M
C3H090V4
0 0 25 70 70
