Parker Compax3 Series User Manual

Parker EME
Compax3 device description
192-120114 N5 C3I22T11 June 2008 33
3.3.5. C3Sxxx V2
In this chapter you can read about:
Main voltage supply C3S connector X1 .............................................................................33
Braking resistor / high voltage DC C3S connector X2........................................................34

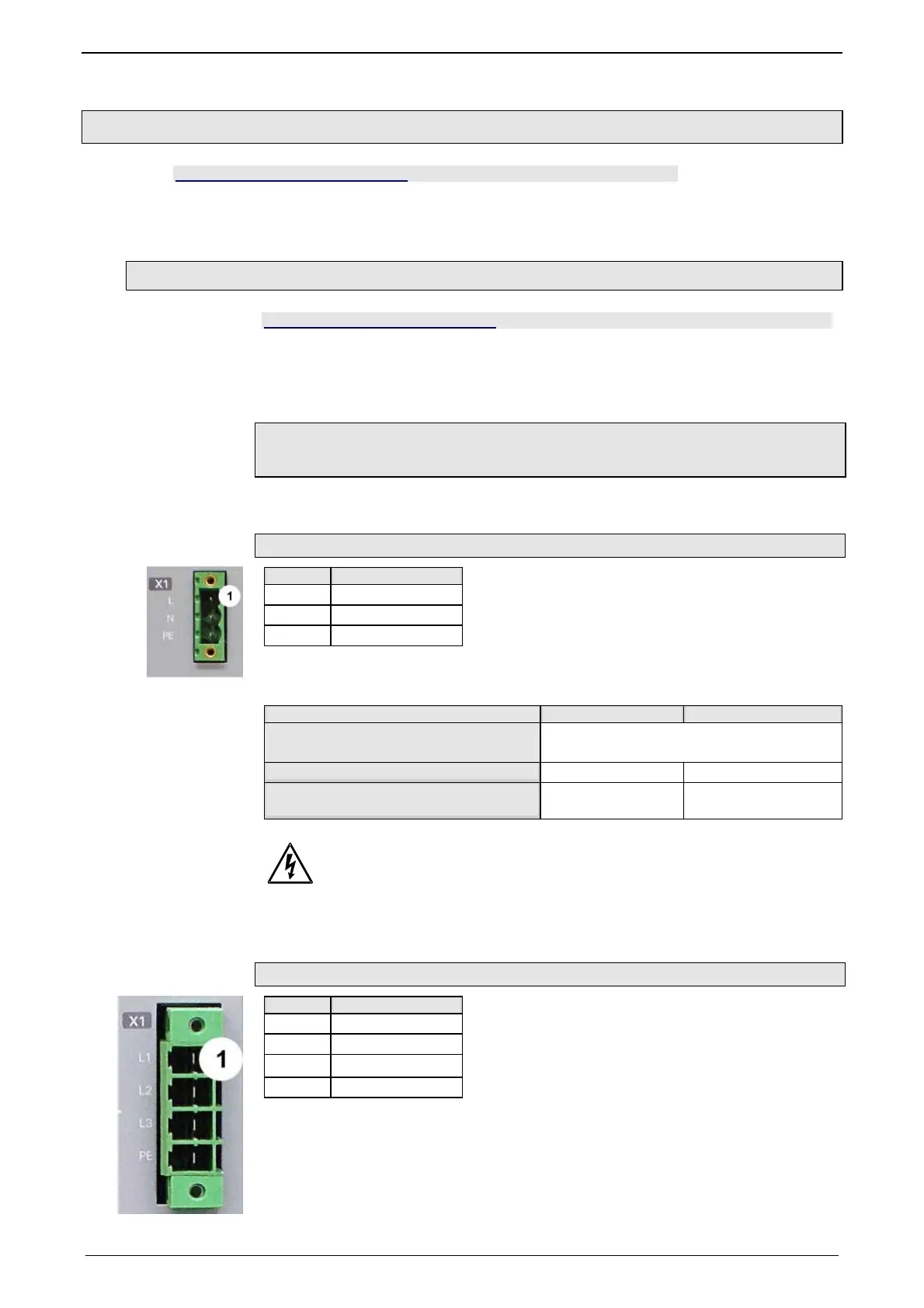

3.3.5.1 Main voltage supply C3S connector X1
In this chapter you can read about:
Power supply plug X1 for 1 AC 230VAC/240VAC devices................................................ 33
Power supply plug X1 for 3AC 230VAC/240VAC devices................................................. 33
By cyclically switching on and off the power voltage, the input current limita-
tion can be overloaded, which will cause a device error.
Therefore please wait at least 2 minutes after switching off before you switch
the device on again!
Power supply plug X1 for 1 AC 230VAC/240VAC devices
PIN Designation
1 L
2 N
3 PE
Mains connection Compax3S0xxV2 1AC
Controller type S025V2 S063V2
Supply voltage
Single phase 230VAC/240VAC
80-253 VAC/50-60Hz
Input current
6Aeff 13Aeff
Maximum fuse rating per device
(=short circuit rating)
10 A (MCB miniature
circuit breaker)
16 A (MCB miniature
circuit breaker)
Always switch devices off before wiring them!
Dangerous voltages are still present until 5 minutes after switching
off the power supply!
Power supply plug X1 for 3AC 230VAC/240VAC devices
PIN Designation
1 L1
2 L2
3 L3
4 PE
Device protection

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
