1: Basic speed range
2: Field weakening range
Rotor time constant
If the value of the rotor time constant is not known, it can be approximated automa-
tically.
Determination of the commutation settings
On the last wizard page of the Compax3 MotorManager, the commutation settings
(feedback direction reversal and commutation direction reversal) can be determi-
ned automatically.
Asynchronous motors: Extension of the controller structure

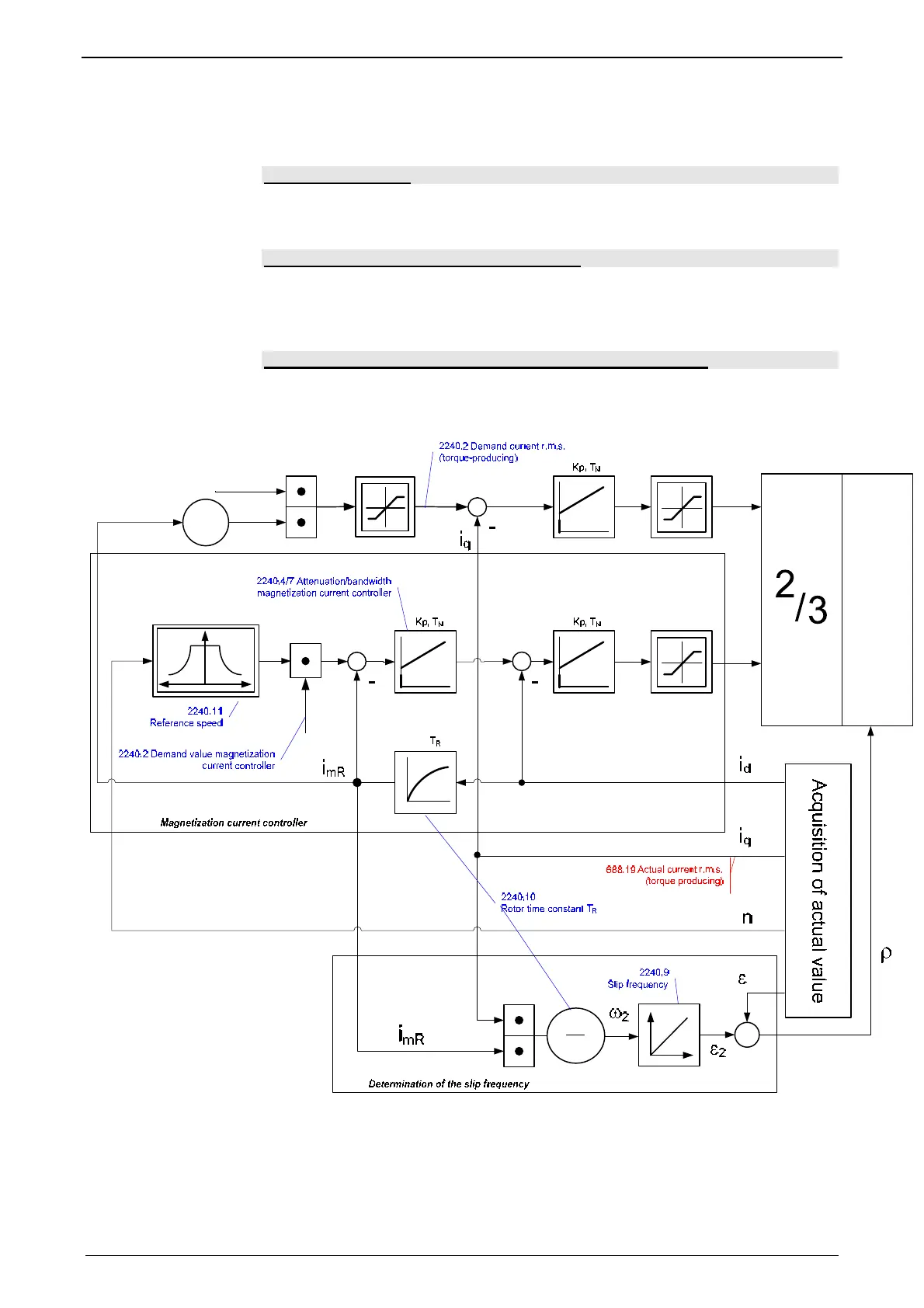

Structure of the magnetization current controller and determination of the
slip frequency:
ρ j
e
R
T
1
M
K

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
