Compax3 Xxxx I22T11 Introduction C3I22T11
24 192-120114 N5 C3I22T11 June 2008
Due to its high functionality, the Positioning version of Compax3 forms an ideal
basis for many applications in high-performance motion automation.
Up to 31 motion profiles with the motion functions:
Absolute or relative positioning,
electronic gearing
register-related positioning,
speed control,
Stop - Set
...
can be created with the help of the PC software.
Via different operating modes:
Speed Control
Direct positioning
Positioning with set selection
the motion functions can be triggered via the bus.
A number of different transfer telegrams, which can be conveniently adjusted with
the Compax3 ServoManager), can be used to adjust cyclic bus communication to
the requirements of specific applications.
High-performance control technology and openness for various sender systems
are fundamental requirements for a fast and high-quality automation of movement.
The structure and size of the device are of considerable importance. High-quality
electronics are a fundamental requirement for the particularly small and compact
form of the Compax3 devices. All connectors are located on the front of the Com-
pax3S.
Partly ingegrated mains filters permit connection of motor cables up to a certain
length without requiring additional measures. EMC compatibility is within the limits
set by EN 61800-3, Class A. The Compax3 is CE-conform.
The intuitive user interface familiar from many applications, together with the oscil-
loscope function, wizards and online help, simplifies making and modifying settings
via the PC.

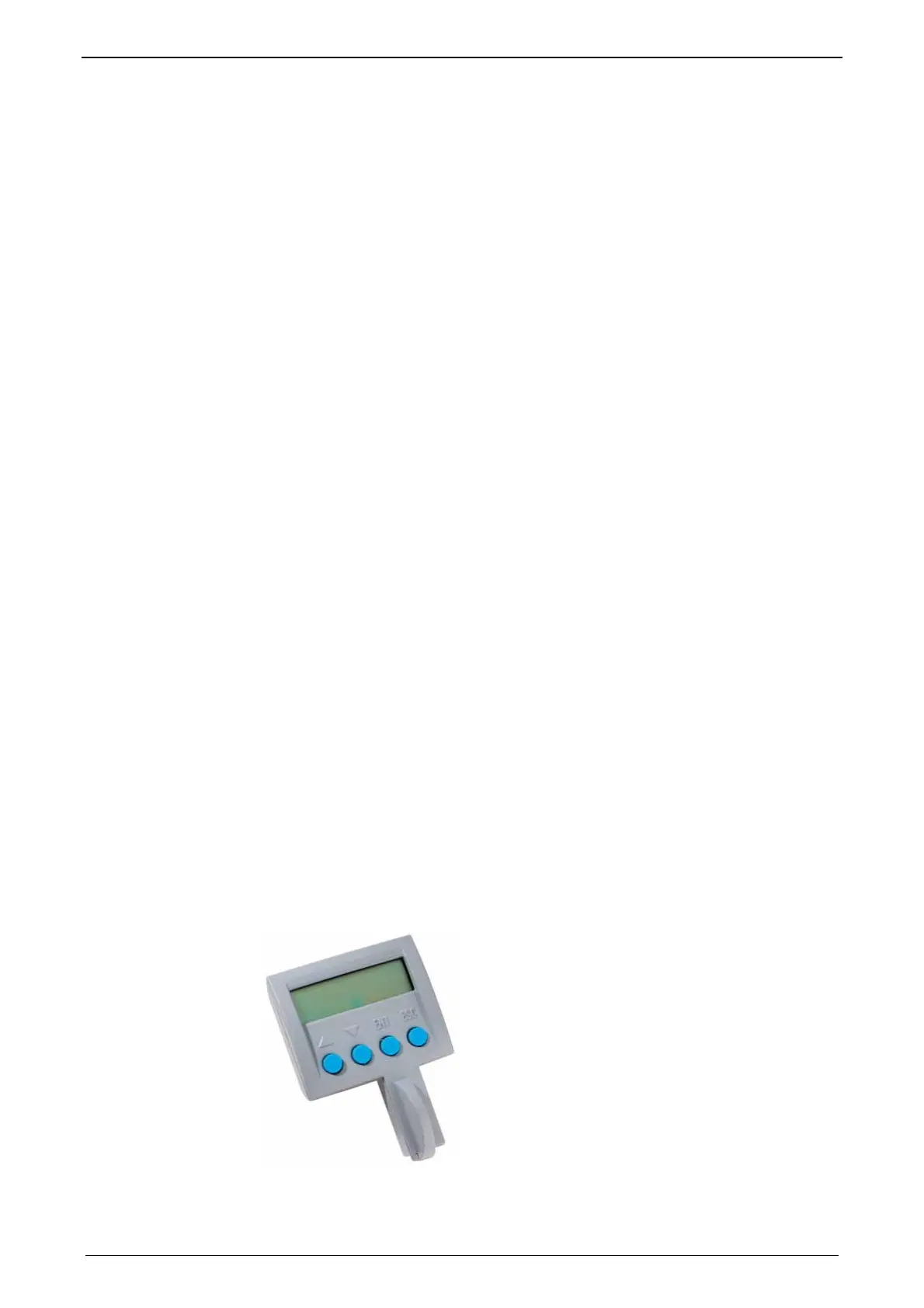

The optional Operator control module (BDM01/01 (see page 378)) for Com-
pax3S/F makes it possibl
e to exchange devices quickly without requiring a PC.
Configuration is made on a PC using the Compax3 ServoManager.
General proceeding (see page 102)
2. Compax3 Xxxx I22T11 Introduction
Compax3 control
technology
Model / standards /
auxiliary material
Configuration
