Parker Compax3 Series User Manual

Compax3 device description C3I22T11
72 192-120114 N5 C3I22T11 June 2008

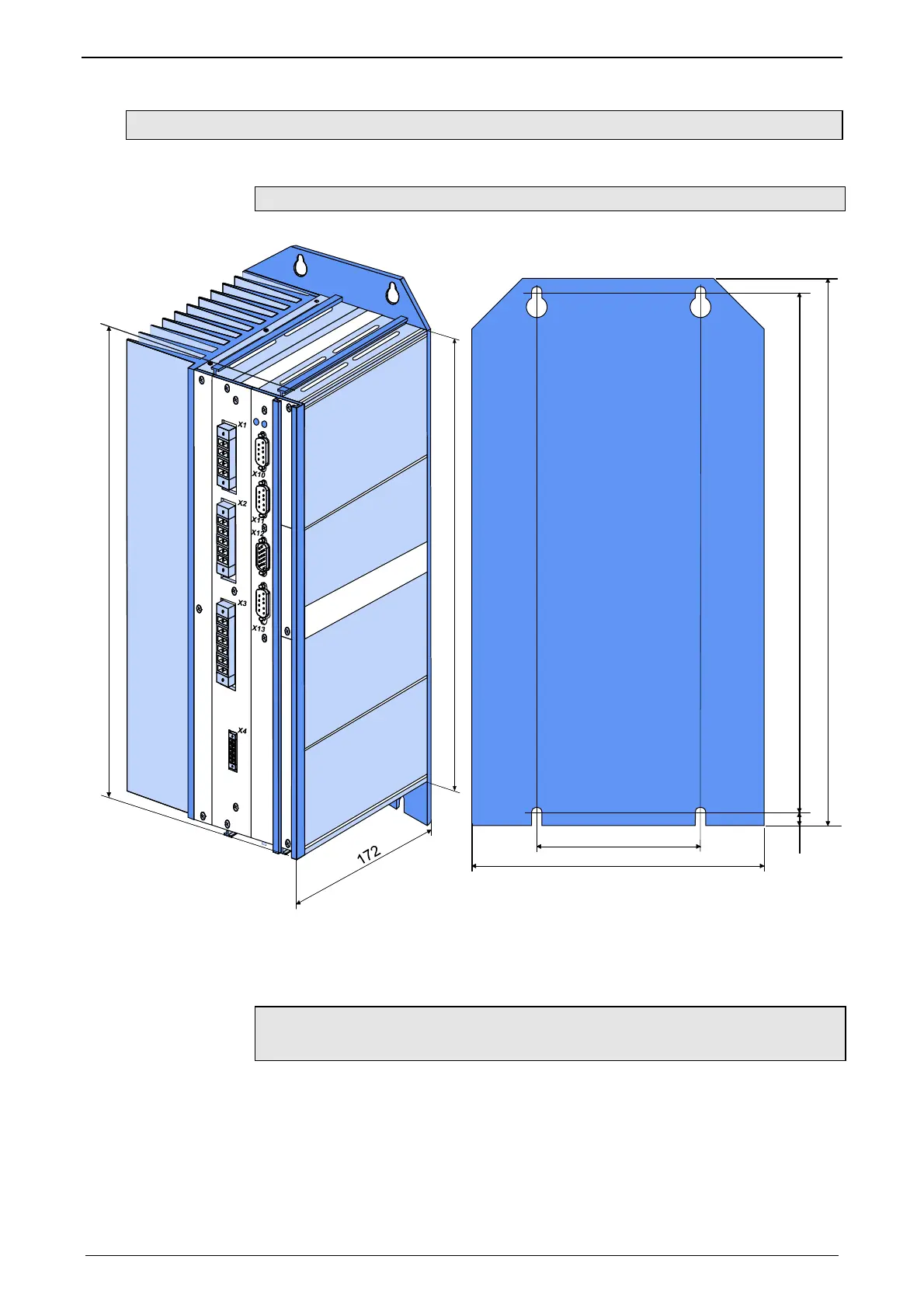

3.9.1.4 Mounting and dimensions Compax3S300V4
Mounting:
4 socket head screws M5
3
8
0
4
0
0
4
1
2
3
9
1
175
80
6
Please respect an appropriate mounting gap in order to ensure sufficient convec-
tion:
 At the side: 15mm
 At the top and below: at least 100mm
Compax3S300V4 is force-ventilated via a fan integrated into the heat
dissipator!

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
