9.4.2.3 Braking resistor BRM5/02, BRM9/01 & BRM10/01

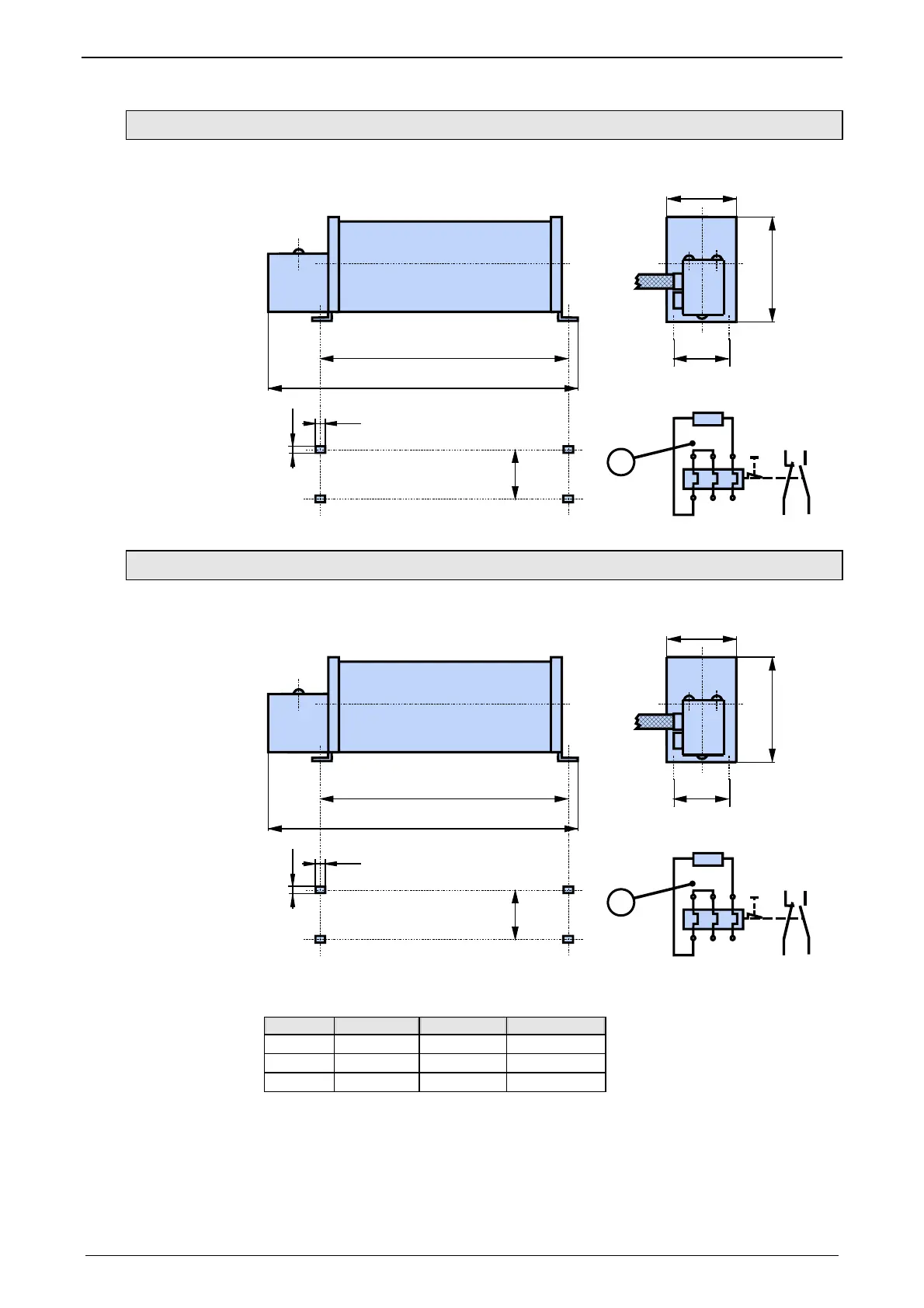

Dimensional drawing:
95 97
96
98
250
330
64
1
2
0
6
,
5
6
4
92
12
1
9.4.2.4 Braking resistor BRM4/0x
Dimensional drawing:
95 97
96
98
A
B
C
1
2
0
6
,
5
C
92
12
1
1: thermal current overload cut-off
Dimensions in mm:
Size: BRM4/01 BRM4/02 BRM4/03
A 250 300 540
B 330 380 620
C 64 64 64

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
