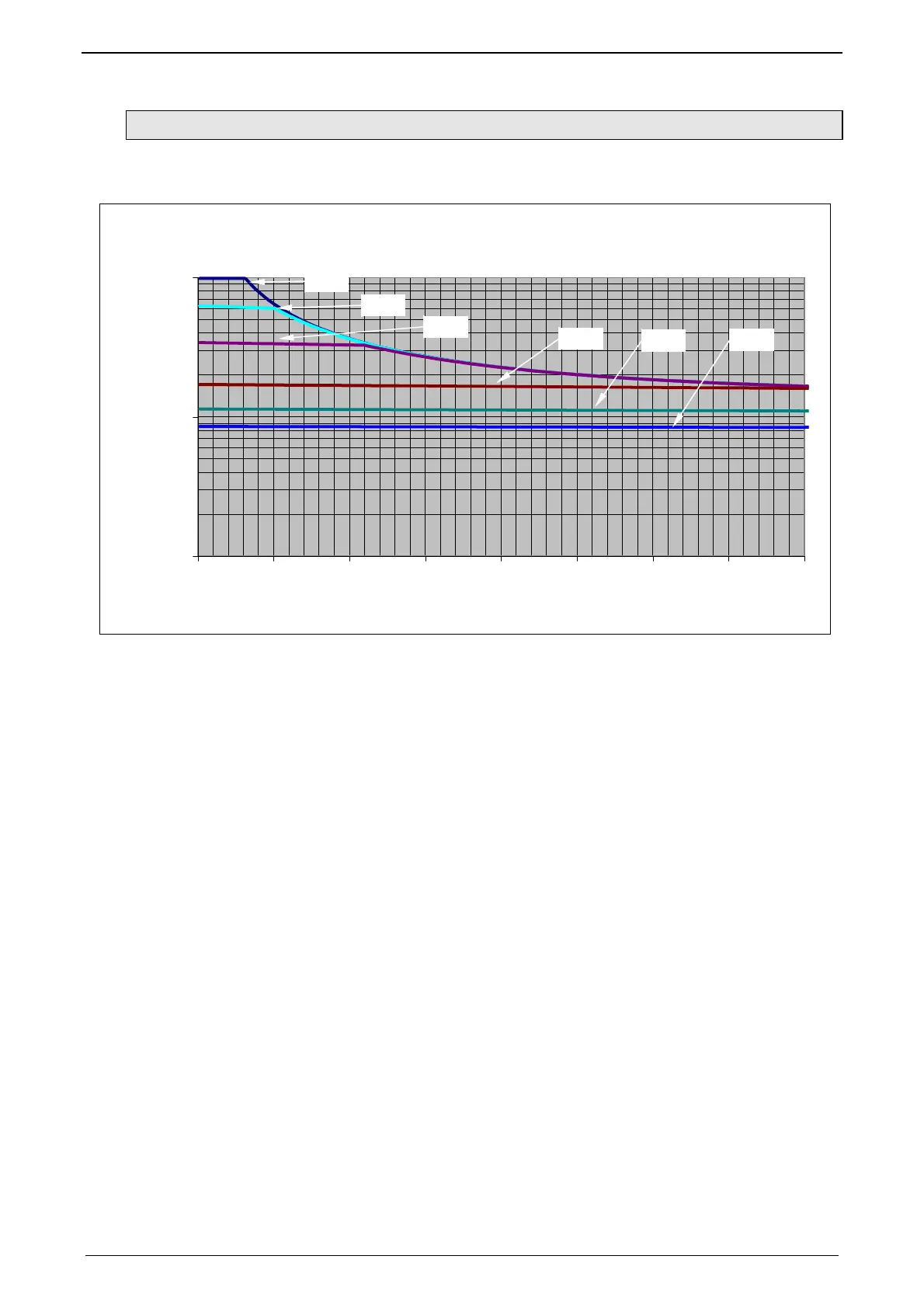

9.4.1.1 Calculation of the BRM cooling time
BRM04/01 (230V_3AC)
100
1000
10000
00,511,522,533,54
Braking time [s]
PBdyn [W]
F = Factor
Cooling time = F * braking time
Example 1: For a braking time of 1s, a braking power of 1kW is required. The Dia-
gram shows the following:
The required values can be found in the range between characteristic F = 0.5 and
F = 1. In order to achieve operating safety, please select the higher factor, this
means that the required cooling time is 1s.
F *
Braking
time
= cooling time
1 * 1s = 1s
Example 2: For a braking time of 0.5s, a braking power of 3kW is required. The
Diagram shows the following:
The required values can be found in the range between characteristic F = 2 and F
= 5. In order to achieve operating safety, please select the higher factor, this
means that the required cooling time is 2.5s.
F *
Braking
time
= cooling time
5 * 0.5s = 2.5s
F=10
F=20
F=5
F=2
F=1
F=0.5

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
