Parker EME
Setting up Compax3
192-120114 N5 C3I22T11 June 2008 163
1: Operating mode switch (see page 163) (Single / Normal / Auto / Roll)
2:
Setting the time basis (see page 163)
3: Starting / Stopping the measurement (prerequisites are valid channel sources
and if necessary valid trigger settings.)
4:
Setting channel (see page 164) (Channels 1 ...4)
5:
Special functions (see page 165) (Color settings; memorizing settings and
measurement values)
6: Loading a measurement from Compax3: in the single mode you can close the
ServoManager after the activation of the measurement and disconnect the PC from
Compax3 and upload the measurement later.
7:
Setting triggering (see page 165)
8: Copy osci display to clipboard
9: Zoom of the osci display (1, 2, 3, 8, 16 fold) with the possibility to move the zoom
window (<,>)

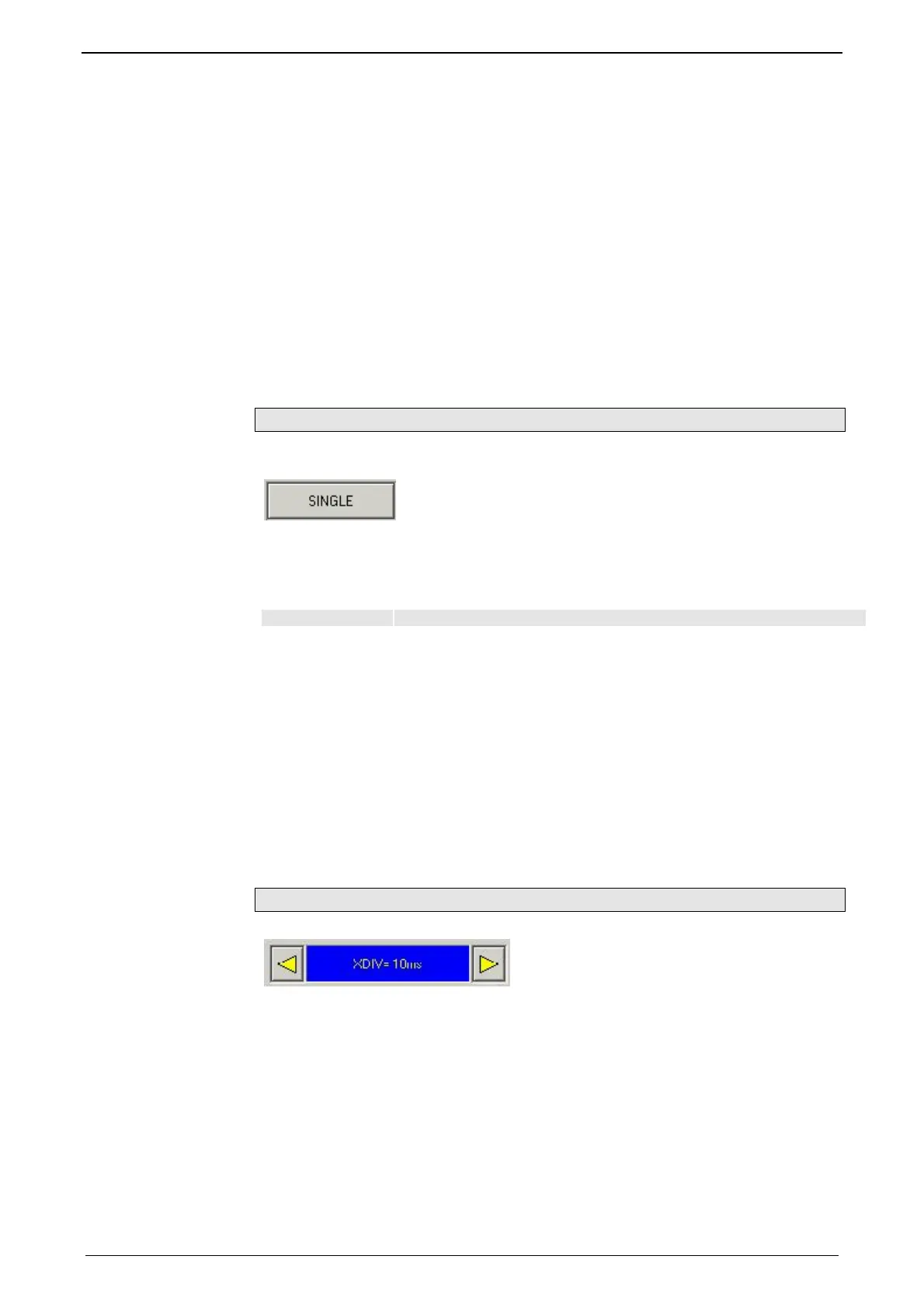

Oscilloscope operating mode switch:
Oscilloscope operating mode switch:
Selection of the desired operating mode: SINGLE, NORMAL; AUTO and ROLL by
clicking on this button.
Changing the operating mode is also permitted during a measurement. The current
measurement is interrupted and started again with the changed settings.
The following operating modes are possible:
Operating mode Short description
SINGLE Single measurements of 1-4 channels with trigger on a freely selec-
table channel
NORMAL Like Single, but after each trigger event, the measurement is star-
ted again.
AUTO No Trigger. Continuous measuring value recording with the selec-
ted scanning time or XDIV setting
ROLL Continuous measuring value recording of 1 .. 4 channels with selec-
table scanning time and a memory depth of 2000 measuring values
per channel.
With SINGLE / NORMAL / AUTO, the meansurement is made in Compax3 and is
then loaded into the PC and displayed.
With ROLL, the measuring values are loaded into the PC and displayed continu-
ously.
Setting the time basis XDIV
Setting the time basis XDIV
Depending on the selected operating mode, the time basis can be changed via the
arrow keys.
