Parker Compax3 Series User Manual

Setting up Compax3 C3I22T11
160 192-120114 N5 C3I22T11 June 2008

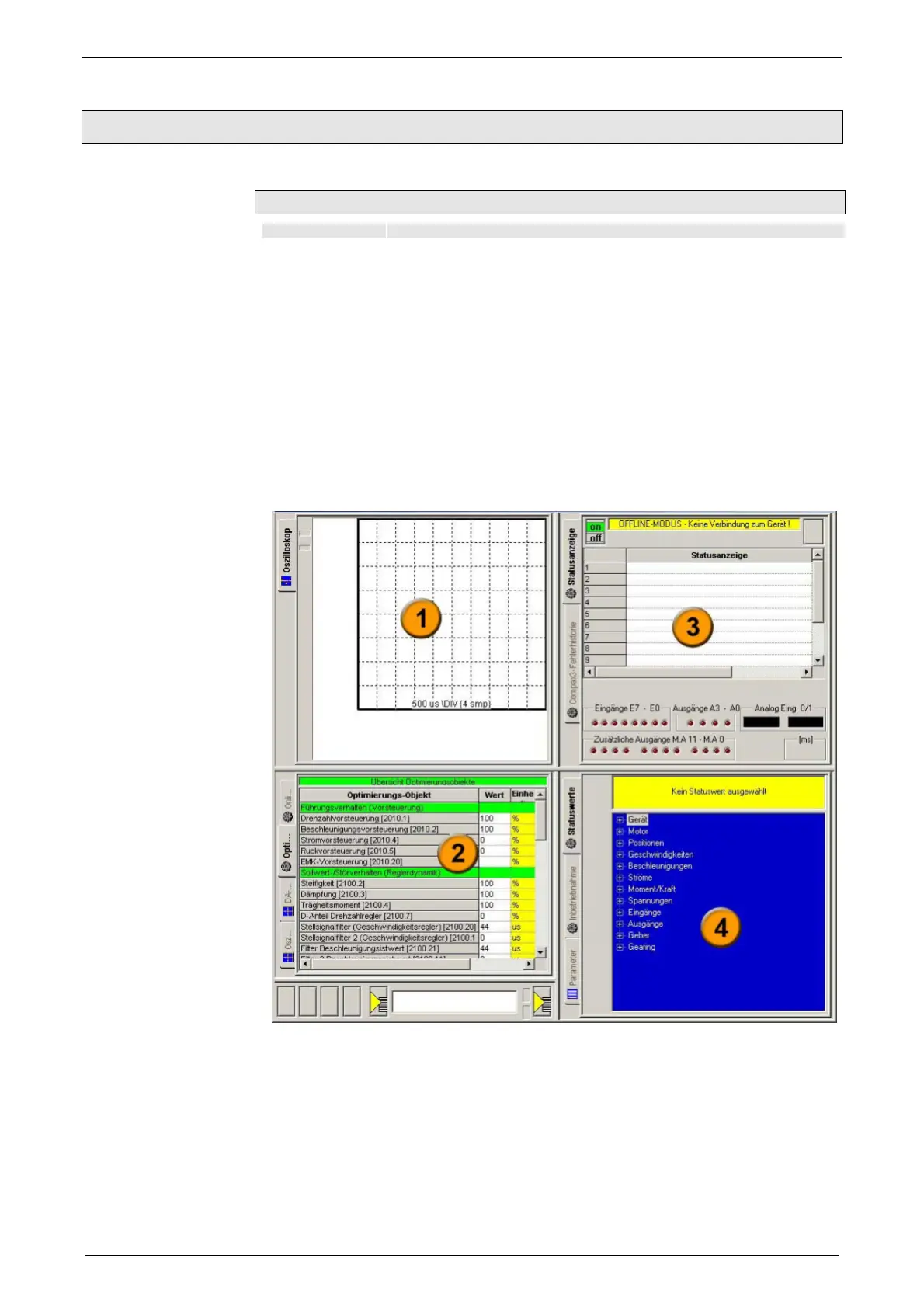

4.3.1. Optimization window
Layout and functions of the optimization window
Segmentation Functions (TABs)
Window1:
 Scope (see page 161)
Window 2:
 Optimization: Controller optimization
 D/A Monitor (see page 338): Output of status values via 2 ana-
log outputs
 Scope Settings
Window 3:
 Status Display
 Compax3 Error History
Window 4:
 Status values
 Commissioning: Setup mode (see page 242) with load identi-
fication
(see page 244)
 Parameters for commissioning, test movements (relative & ab-
solute) and for load identification.

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
