Parker Compax3 Series User Manual

Communication
C3I22T11
294 192-120114 N5 C3I22T11 June 2008
DIP Switch settings NetCom 113 for two-wire operation:
1ON 2ON 3off 4off (Mode: RS485 by ART (2 wire without Echo)
Communication settings C3S/C3M:
Object Function Value
810.1 Protocol 16 (two wire)
810.2 Baud rate 115200
810.3 NodeAddress 1..254
810.4 Multicast Address

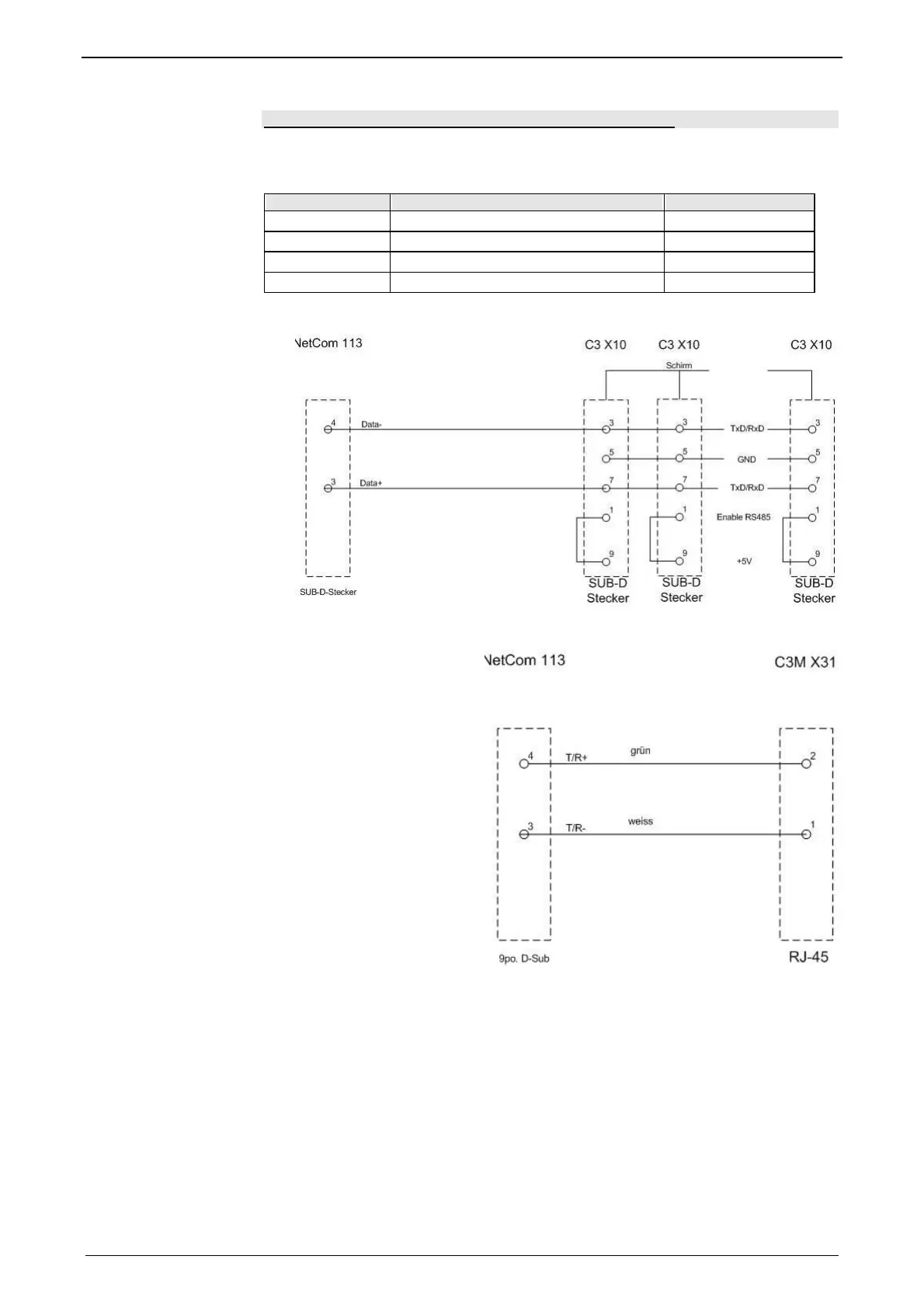

Connection plan NetCom113<-> C3S:
Connection plan NetCom113<-> C3M X31:

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
