Parker Compax3 Series User Manual

Communication
C3I22T11
322 192-120114 N5 C3I22T11 June 2008
Cubical interpolation (o3925.1=-3)
With the aid of the last position received, and the three previous values, the poly-
nomal coefficients of the polynomal
Y(t) = a * t^3 + b * t^2 + c* are determined. The speed within a bus cycle can chan-
ge quadratically, i.e. the acceleration is a first order function.
 Advantages: consistent course of speed and acceleration
 Disadvantages: This method may lead to overshoot in the interpolated position..
The Interpolation method does not support a reset value range.

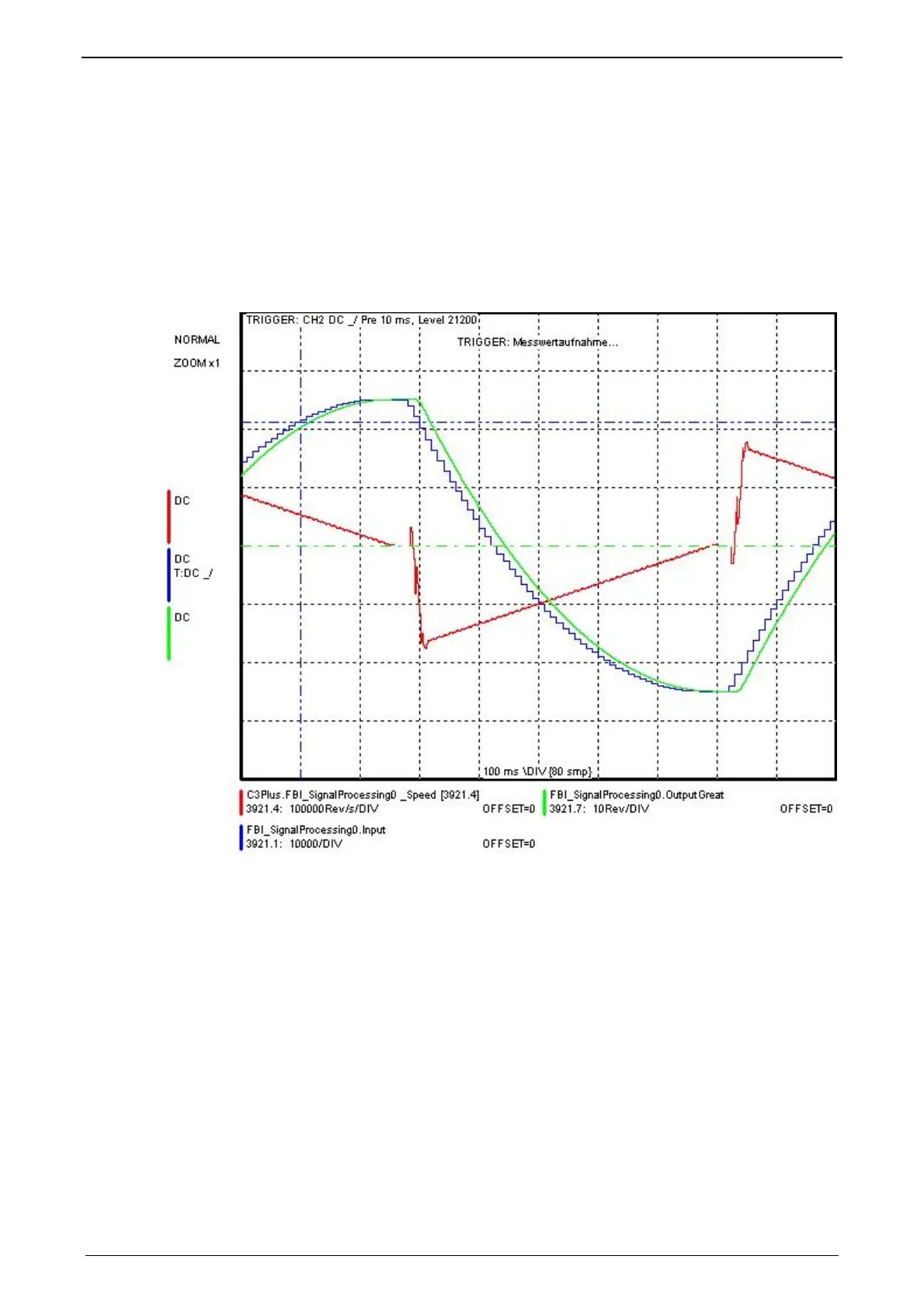

Example:

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
