Software Reference 115
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Gel Settings
To view the Gel Settings, select the Gel Settings check box on the
right side of the Gel Tab.

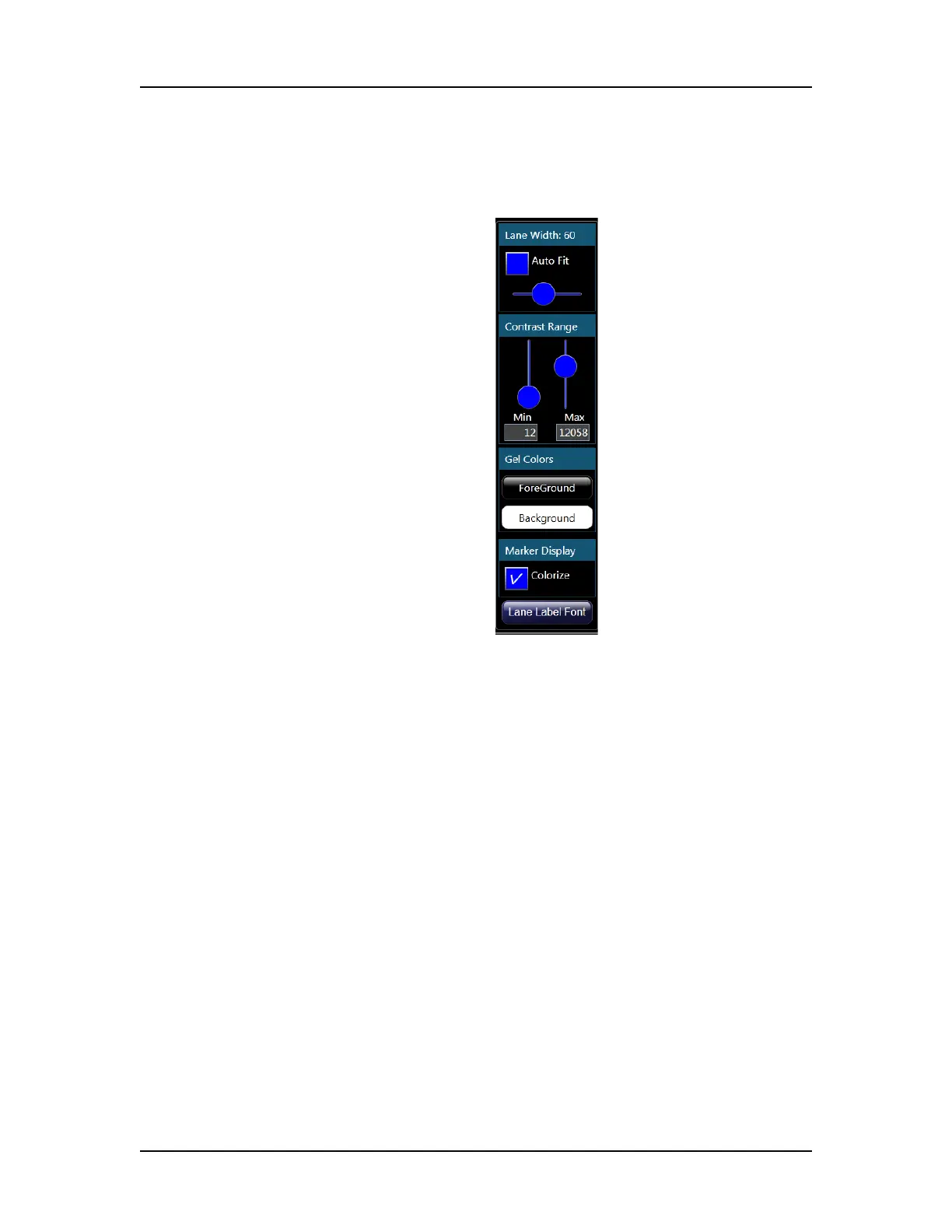

Figure 45. Gel Settings
The following properties can be set for the Gel tab:
Lane Width - Sets the width of the gels. Select the Auto Fit check
box to have the software automatically fit all the data, or use the
slider to manually set the width.
Contrast Range - Sets the minimum and maximum Gel Band
Contrast for the bands in each well. Use the sliders or type the
value in the text box to change the min and max values.
Gel Colors - Touch the Foreground color or the Background color
to open the Color window to choose the desired colors for the gel.
Marker Display Colorize check box - If selected, the marker
bands in each well are colored. If not selected, the marker bands
display in the selected Foreground color.
Lane Label Font button- Opens the Font window to change the
font, style, and size of the labels in the gel headers.
