Gel Tab
The Gel Tab is a visual representation of the data formatted to look
like the Gel slabs that were originally used to perform electrophoretic
separations. The data is shown in Time vs. Fluorescence (or digital
form).
Touch a gel lane (well) to select the well. Selected wells are
outlined with a dotted gray line. Wells selected in the Gel view are
also selected in the Select Wells to View Tab, Egram/Gel Tab, and
Gel Tab.
To open the Gel Tab, touch the Views button on the Navigation Bar
and then touch the Gel button.

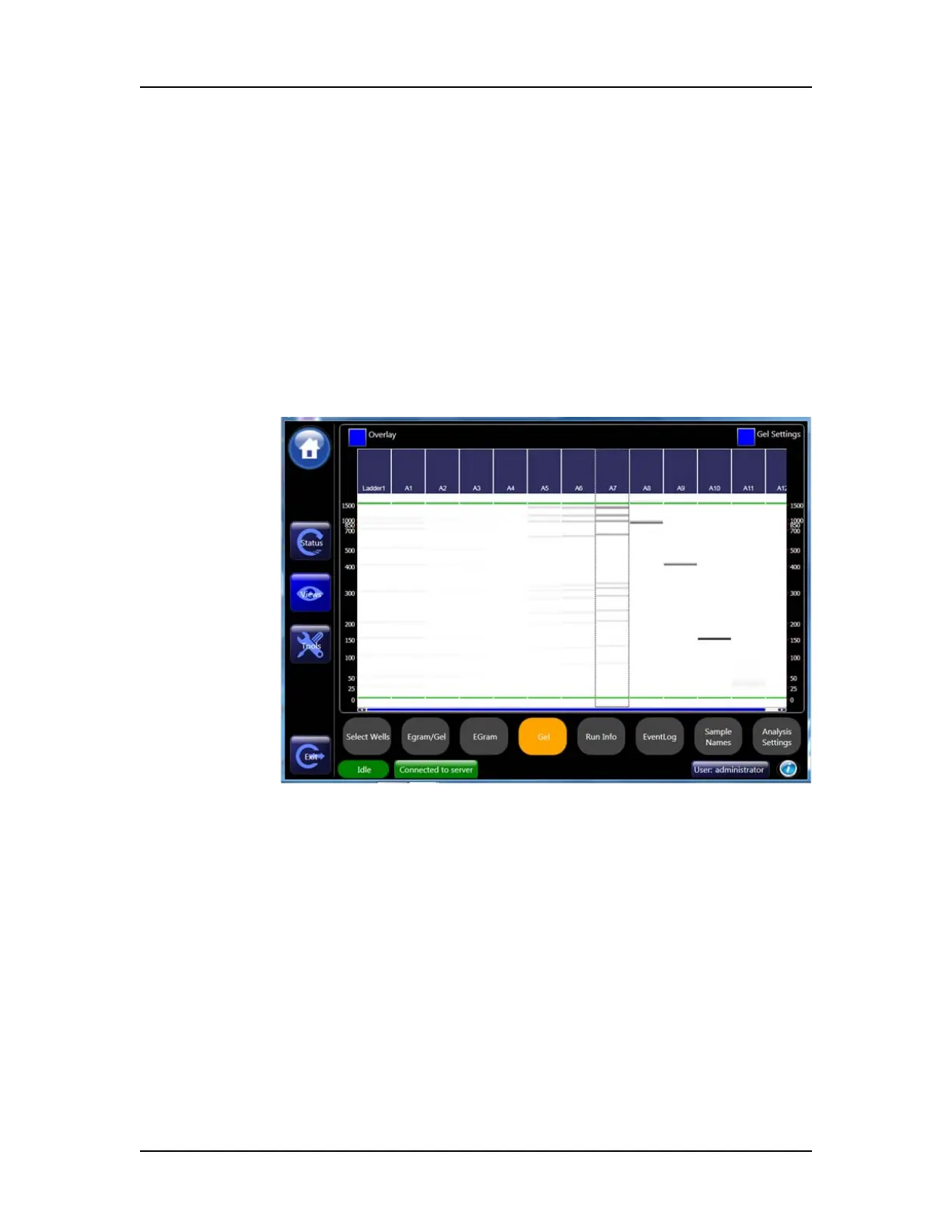

Figure 44. Gel Tab
For DNA assays, the upper and lower markers of all wells are
aligned to the upper and lower markers of the first well in the Gel
tab. For Protein and RNA assays, the lower markers of all wells are
aligned to the markers of the first well in the Gel tab.
The wells selected in the Gel tab are synchronized with the wells
selected in the Select Wells to View Tab, Egram/Gel Tab, and
EGram Tab.
