PerkinElmer LabChip GXII Touch User Manual

Preparing the Instrument to Run Samples 28
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Placing the Barcode on the Plate
For instruments equipped with a barcode reader, barcodes can be
placed on the plate before loading the plate into the instrument.

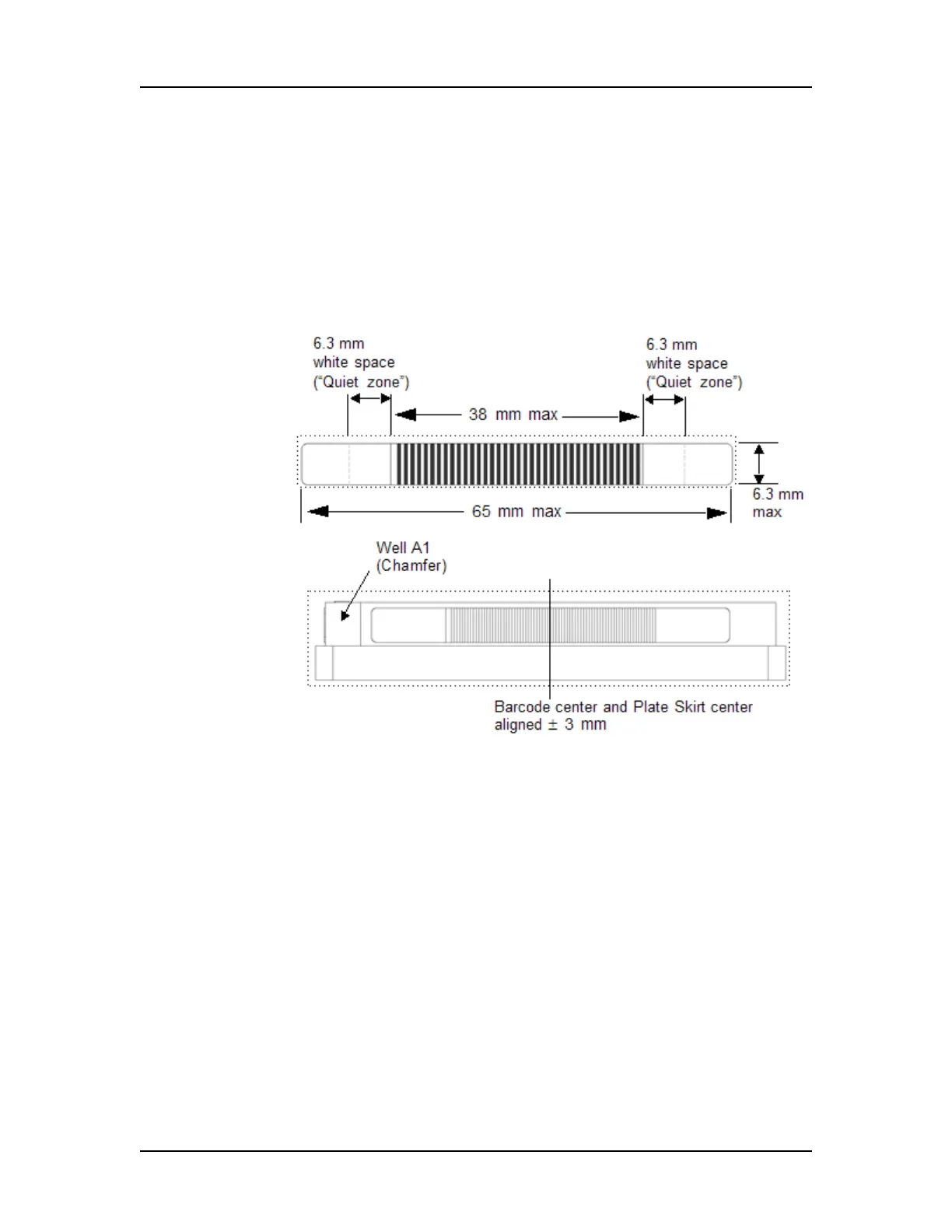

Figure 4 shows the size limits for the barcode label and the location
on the microplate where the label should be placed. The barcode
must be located on the short (portrait) end of the microplate, closest
to well A1. If the barcode is not positioned properly, the barcode
reader will not be able to read the barcode.
Figure 4. Barcode Label Position
