Software Reference 90
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Export Setup Tab
Use the Export Setup tab to select the auto export options to
automatically export data at the end of a run. To automatically
export data, select the Auto Export check box on the Setup Run
Tab. To open the Export Setup tab, touch the Tools button on the
Navigation Bar and then touch the Export Setup button.
Peak Tables and Well Tables are exported to either CSV files or
XML files. CSV files can be imported into a spreadsheet program
such as Microsoft
®
Excel
®
. Raw Data can be exported to a CSV file,
an XML file, or to a Chromatography Data Interchange Format file
(formerly AIA), which is used by some graphical analysis software
tools.

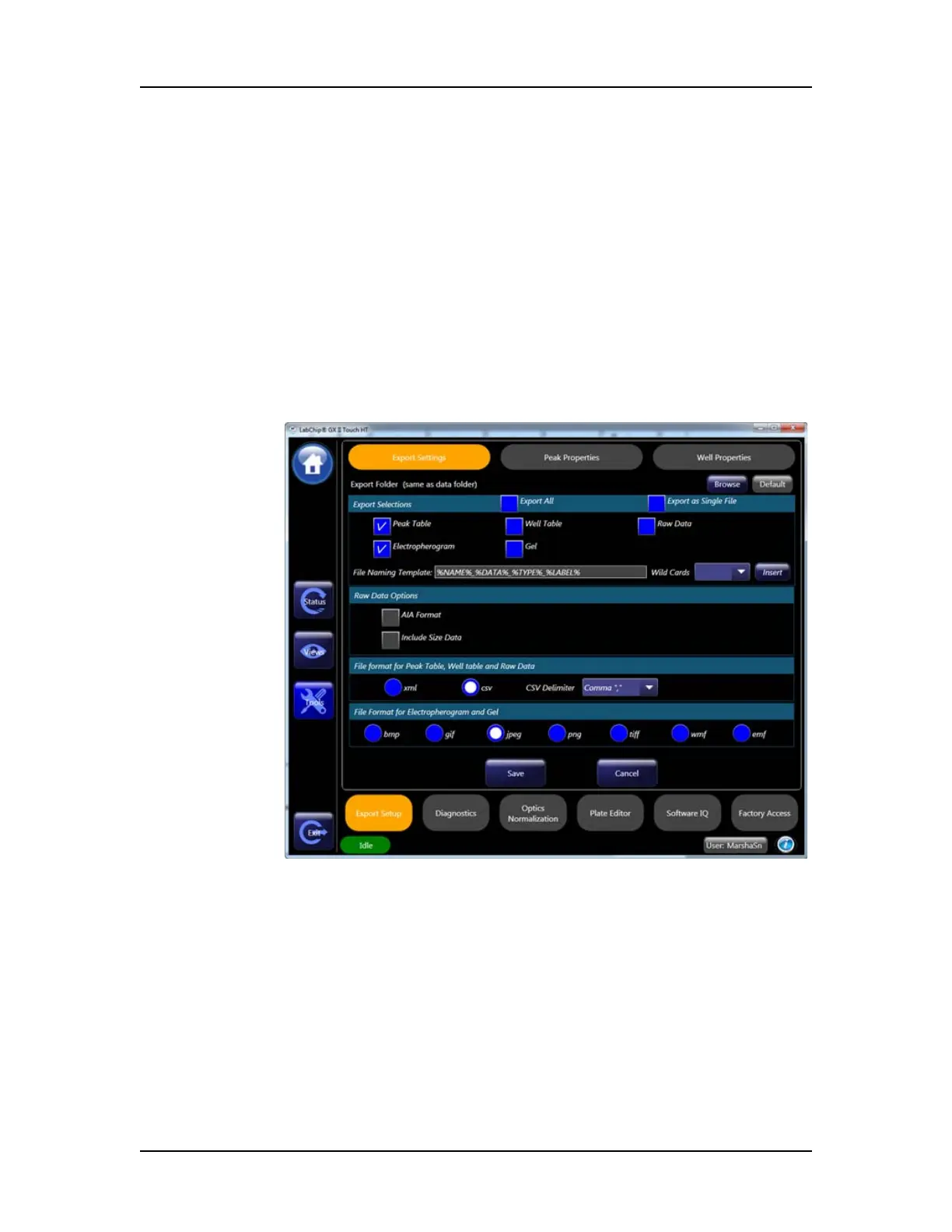

Figure 29. Setup Tab
The following tabs display on top of the Export Setup tab:
• Export Settings Tab
• Peak Properties Tab
• Well Properties Tab
