Software Reference 94
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Well Properties Tab
Use the Well Properties tab to select the columns to export in the
Well Table if Well Table is selected in the Export Settings Tab in the
Tools Window. The columns available for export do not display until
after the run is started.

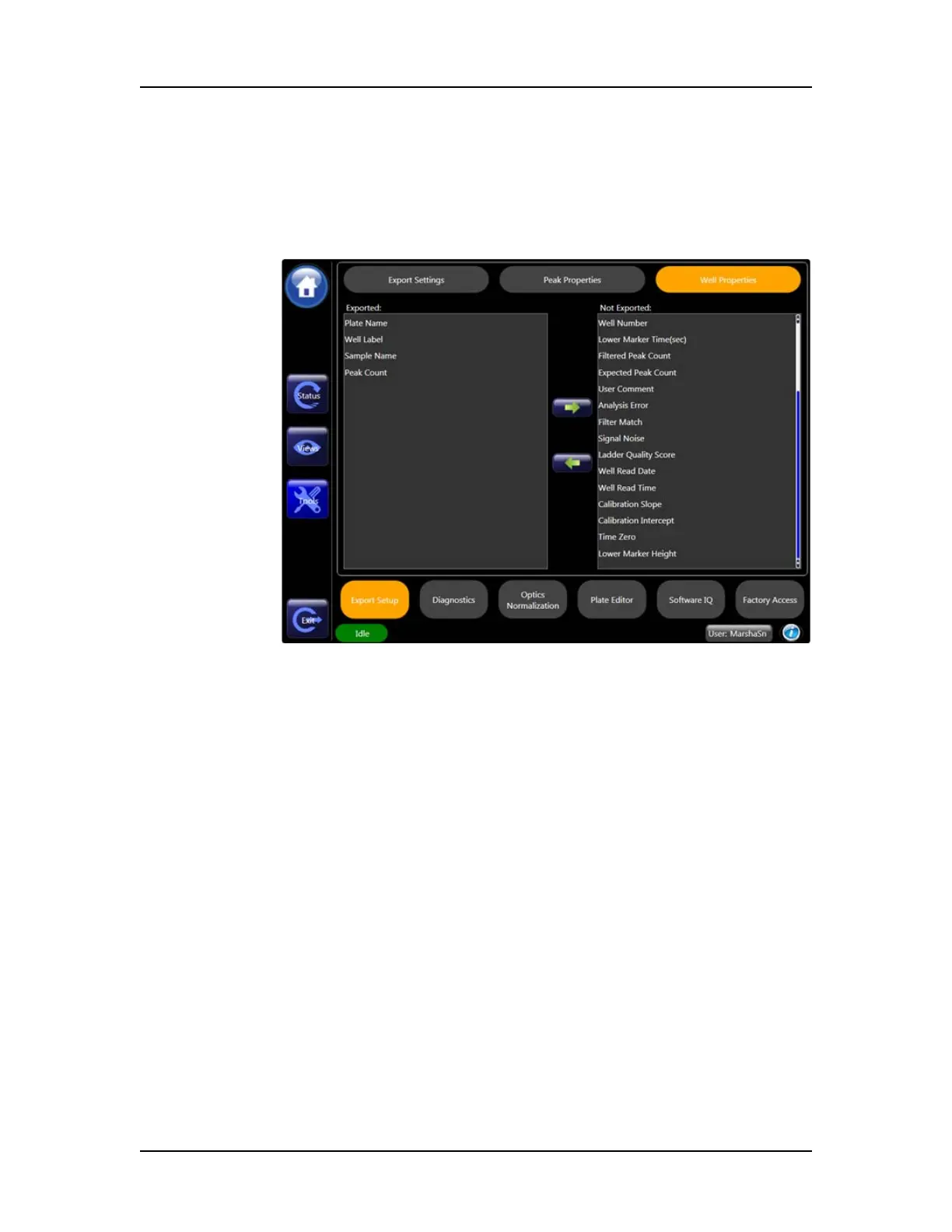

Figure 31. Well Properties Tab
Not exported list box - Lists the columns in the Well Table that are
not included in the exported Well Table. The columns available
depend on the type of assay that generated the data.
Exported list box - Lists the columns in the Well Table that will be
included in the exported Well Table.
Left and Right arrow buttons - Move the highlighted table column
to the Not exported or exported list boxes.
