Software Reference 108
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Egram/Gel Tab
Use the EGram/Gel tab to view the electropherogram and gel of
analyzed well data after a well is complete. To change the view in
the EGram/Gel tab, see Viewing Data in the Egram/Gel Tab on
page 50. To open the Egram/Gel tab, touch the Views button on the
Navigation Bar and then touch the Egram/Gel button.

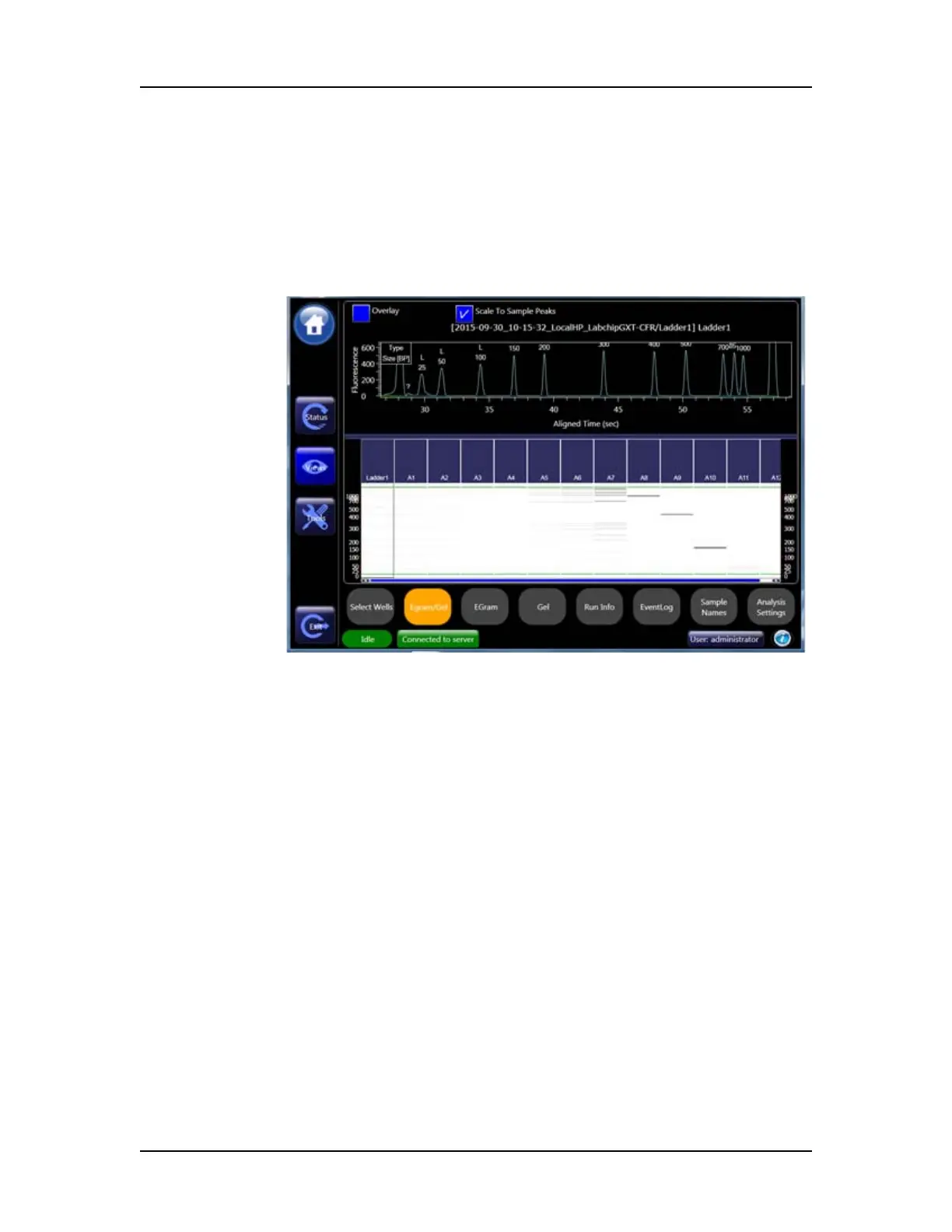

Figure 41. Egram/Gel Tab
The Egram/Gel tab contains:
Overlay check box - If selected, multiple graphs display in the
electropherogram. Select the desired wells by touching a gel at the
bottom of the tab or selecting the well in the Select Wells to View
Tab. If Overlay is selected, the foremost graph is the last well
selected. To bring a graph to the front, touch the gel at the bottom of
the tab. The Overlay legend displays the well number and the
sample name of the wells, with the front graph at the top of the list.
Scale to Sample Peaks check box - If selected, scales the view to
the minimum and maximum X values of the current sample peaks.
Marker and/or system peaks are ignored. (If Overlay is selected,
the view scales to the sample peaks in the most recently selected
well.) If not selected, scales the view to the minimum and maximum
X values of all peaks, including marker peaks and system peaks.
Graph - Displays the graph of one or more wells. To change the
graph settings, use the Graph Settings on the EGram Tab.
Gel - Displays a gel of each well in the run. To change the gel view
settings, use the Gel Settings on the Gel Tab.
