Software Reference 122
P/N CLS151164 Rev. B LabChip GX Touch/GXII Touch User Manual PerkinElmer, Inc.
Analysis Settings Tab
Use the Analysis Settings tab to change Sample or Ladder Peak
Find Settings during a run or to preview changes to analysis
settings on a plate open for review. Analysis Settings can be saved
before the run is complete if Auto Export is not selected. If Auto
Export is selected, then Defer Export to Plate Completion must also
be selected on the Setup Run Tab. Analysis Settings cannot be
saved after a run is complete. To open the Analysis Settings tab,
touch the Views button on the Navigation Bar and then touch the
Analysis Settings button.

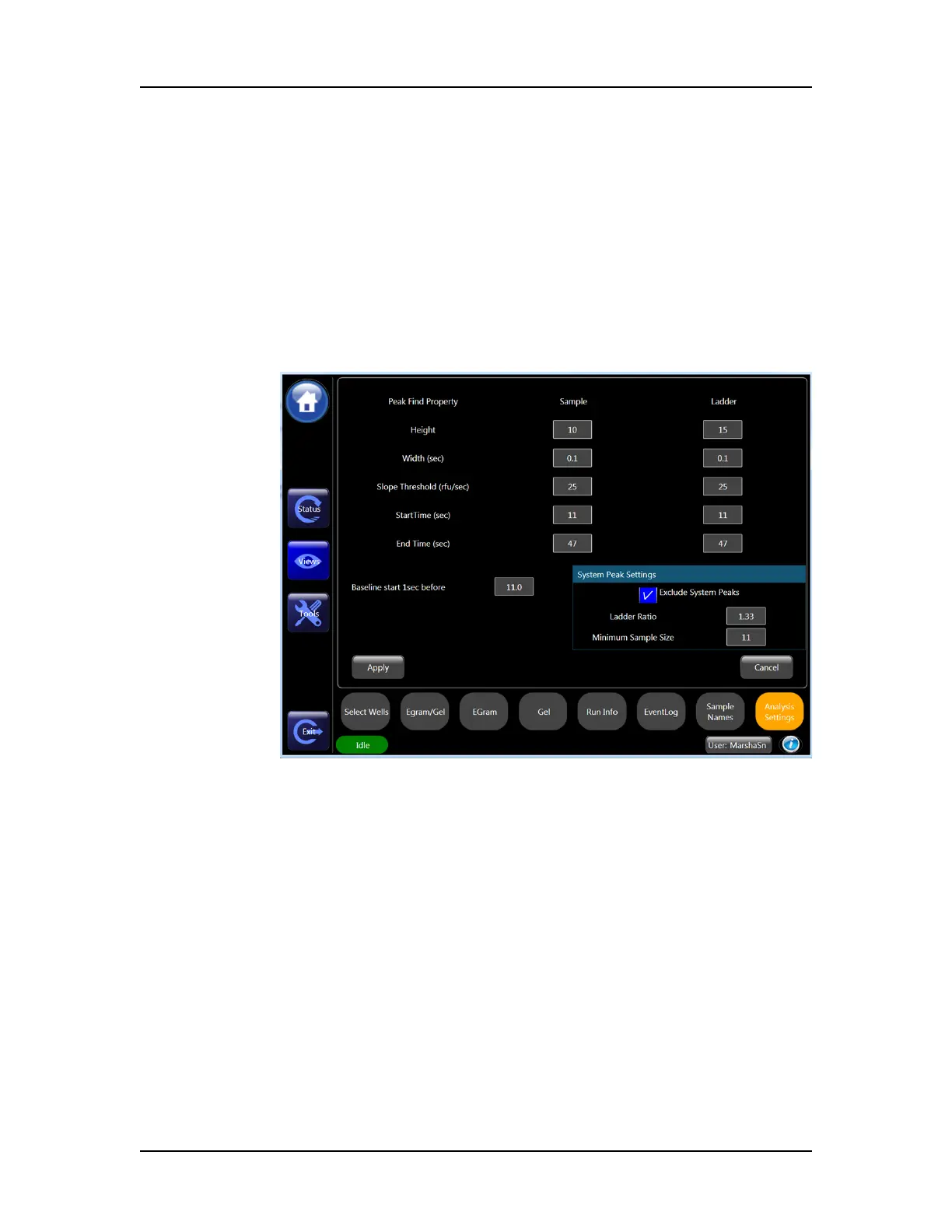

Figure 49. Analysis Settings Tab
The Analysis Settings tab displays the following settings for Sample
wells and for Ladder wells:
• Height - Specifies the height limit below which a peak is not
detected. For each peak, the difference between the height at
the Peak Start Time and the height at the Peak Apex must be
greater than this value.
• Width (sec) - Specifies the minimum width of a peak in
seconds. Peaks narrower than this time are not detected.
