98 Workshop Manual, TPD 1377E, issue 4
100 Series
To fit Operation 11-2
Special requirements

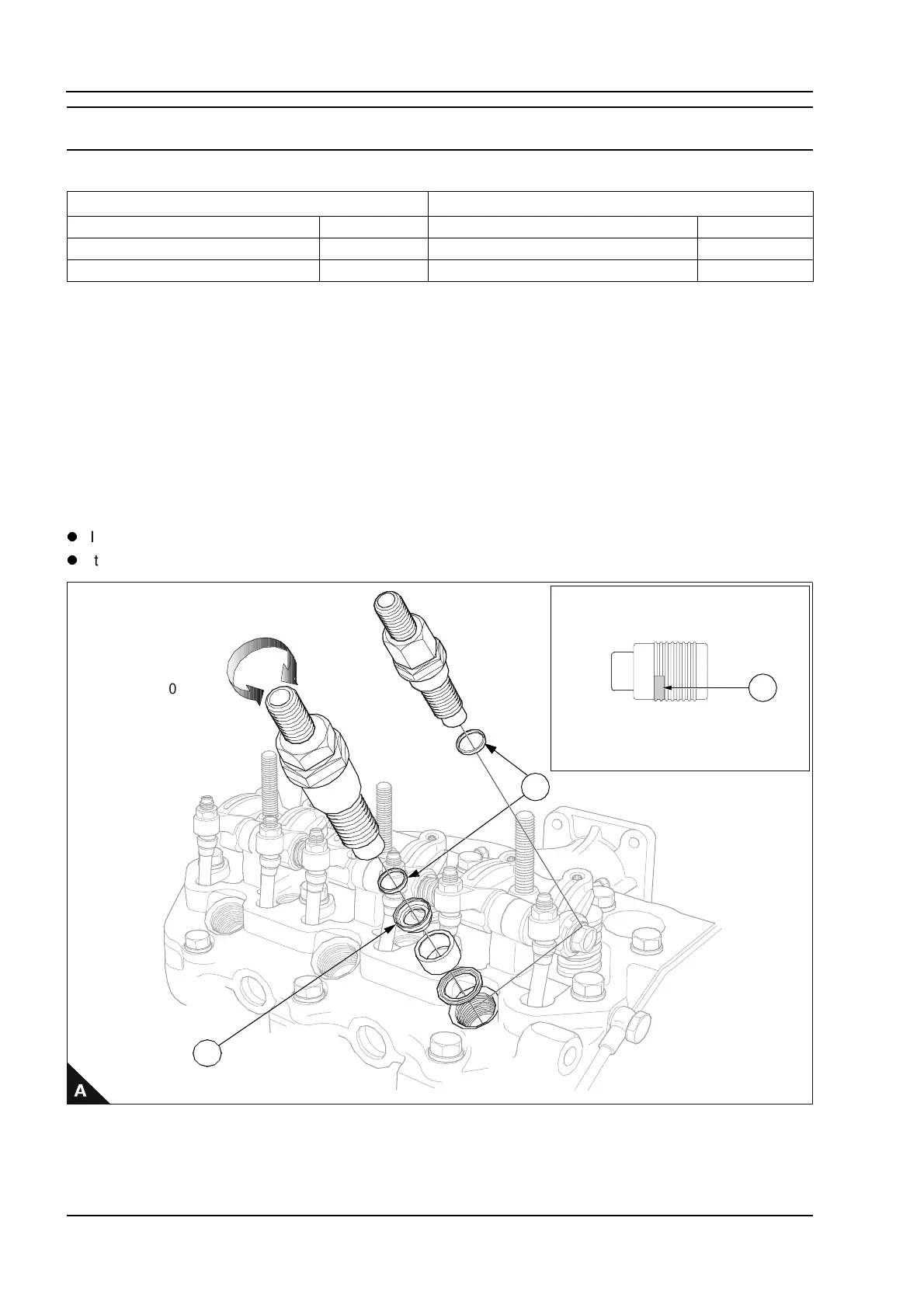

1 Clean and dry the male and female threads of the atomiser and the cylinder head.
2 Apply a 2 mm (0.08 in) bead of sealant POWERPART universal jointing compound, part number 1861117,
to extend 6 mm (0.24 in) along the first two threads of the atomiser (A3).
Engine serial numbers KR-----924551F to KR-----926370F require two nozzle washers (A2) fitted when
servicing any of the above engine serial numbers.
All 104-22 engines built from engine serial number KR-----926371F require one nozzle washer (A2) fitted when
servicing.
If a new cylinder head is fitted on engine serial numbers KR-----924551F to KR-----926370F then only one
nozzle washer (A2) is fitted.
Notes:
Item (A1) is used on 103-10 engine only.
Item (A2) is part number 131426200.
Torque Nm (lbf ft) kgf m Test pressures kgf/cm² (lbf/in²) ats
102-05, 103-07 64 (47) 6,5 102-05, 103-07 120 (1707) 116
103-10 81 (60) 8,2 103-10 120 (1707) 116
103-13, 103-15, 104-19, 104-22 64 (47) 6,5 103-13, 103-15, 104-19, 104-22 150 (2133) 145
2
A
102-05
103-07
103-10
103-13
103-15
104-19
104-22
1
3
