Workshop Manual, TPD 1377E, issue 4 45
100 Series

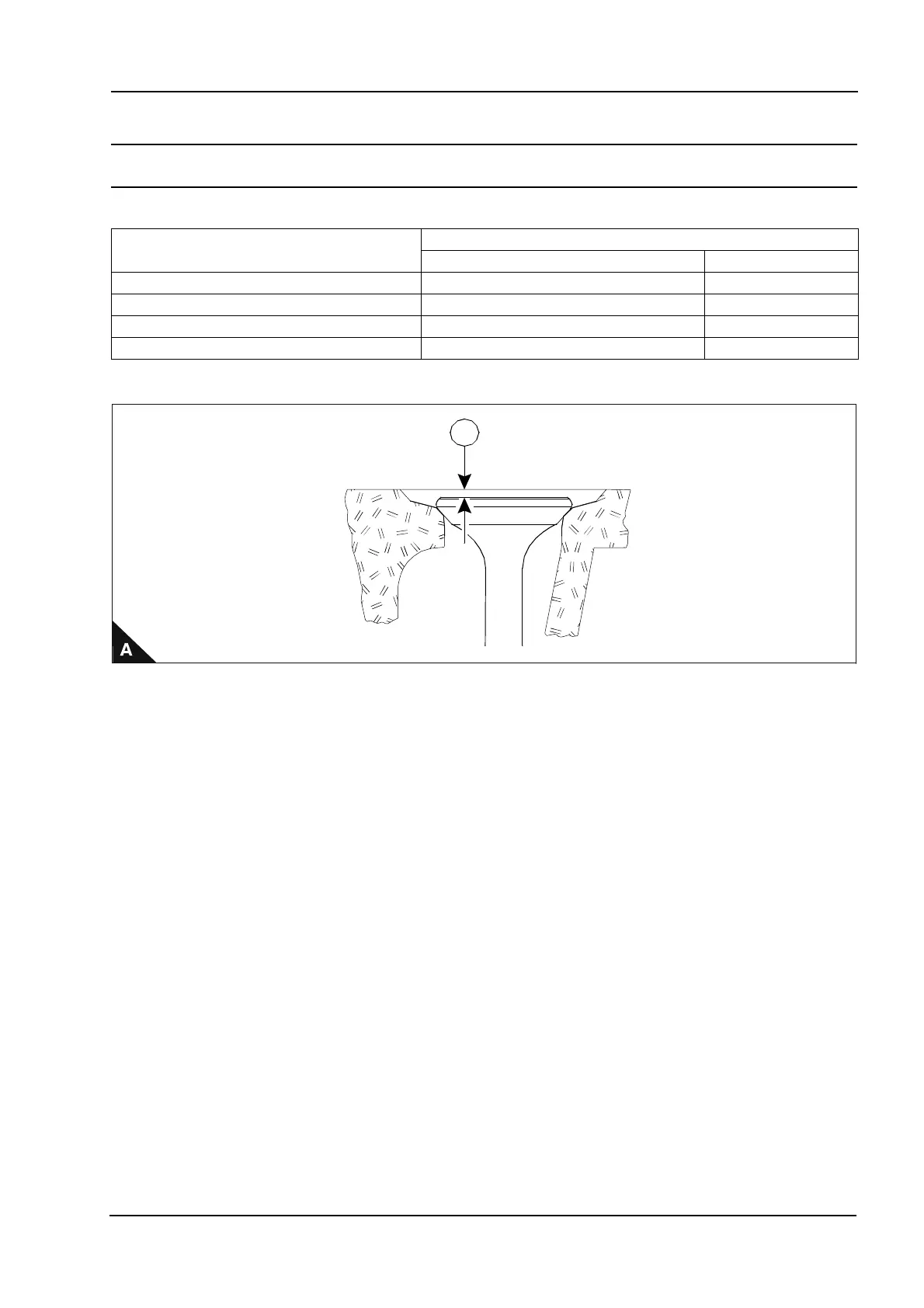

Valve depth
To correct Operation 3-21
Special requirements
Rectify if the depth is more than the service limit.
Engine model
Depth (A1) mm (in)
Standard Service limit
102-05, 103-07 0,70 - 0,90 (0.0276 - 0.0354) 1,8 (0.071) max
103-10 0,85 - 1,15 (0.0335 - 0.0453) 1,8 (0.071) max
103-13, 103-15 0,85 - 1,15 (0.0335 - 0.0453) 1,8 (0.071) max
104-19, 104-22 0,65 - 0,95 (0.0256 - 0.0374) 1,8 (0.071) max
1
