Perkins 103-13 - Wiring Diagram 40 Amp Alternator - 103-10 (When Fitted with Optional Alternator)

14
122 Workshop Manual, TPD 1377E, issue 4
100 Series

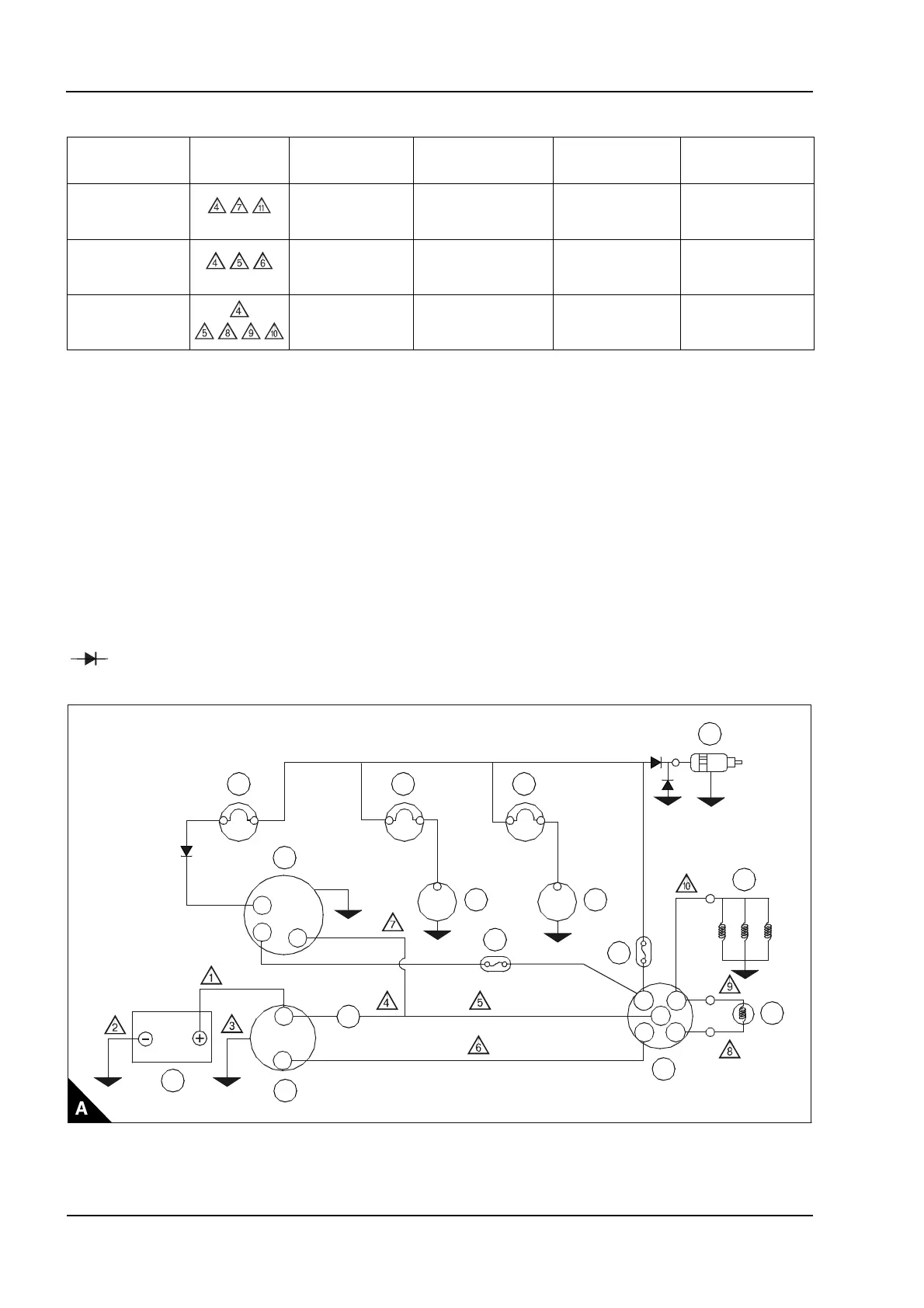

Wiring diagram 40 amp alternator - 103-10 (when fitted with optional alternator)
Wiring diagram maximum circuit resistance
The resistance of battery cables 1,2 and 3 must not exceed 0.0018
Ù.
(1) Max current draw for standard oil pressure switch is 0.42 amps (5 Watt lamp max).
Circuit Cable number Circuit current
Maximum circuit
resistance
Maximum circuit
volt drop
Remarks
Alternator
charging
40 amp 0.0125 Ùs0.5 Volt
See Glow Plugs
Circuit
Starter motor
solenoid
15.75 amp 0.04 Ùs 0.63 Volt
See Glow Plug
Circuit
STD glow plugs
(via glow signal)
(Peak max)
39 amp
0.0128 Ùs0.5 Volt
1 Alternator warning lamp
2 Alternator
3Battery
4 Starter motor
5 Oil pressure warning lamp
6 Oil pressure switch
(1)
7 Water temperature warning lamp
8 Thermostat switch
9 Key switch
10 Glow signal
11 Glow plugs
12 Fuse
13 Fuse
14 Solenoid switch
15 A delayed fuse can be fitted if required
= Diode. Capacity: Current 3 amp. Reverse Voltage: 600V. (This is mandatory).
B
B
S
AC
17
30
50 19
N
F
1
2
3
4
9
10
11
5 7
6 8
12
13
15
14
