Perkins 103-13 - Page 133

14
Workshop Manual, TPD 1377E, issue 4 123
100 Series

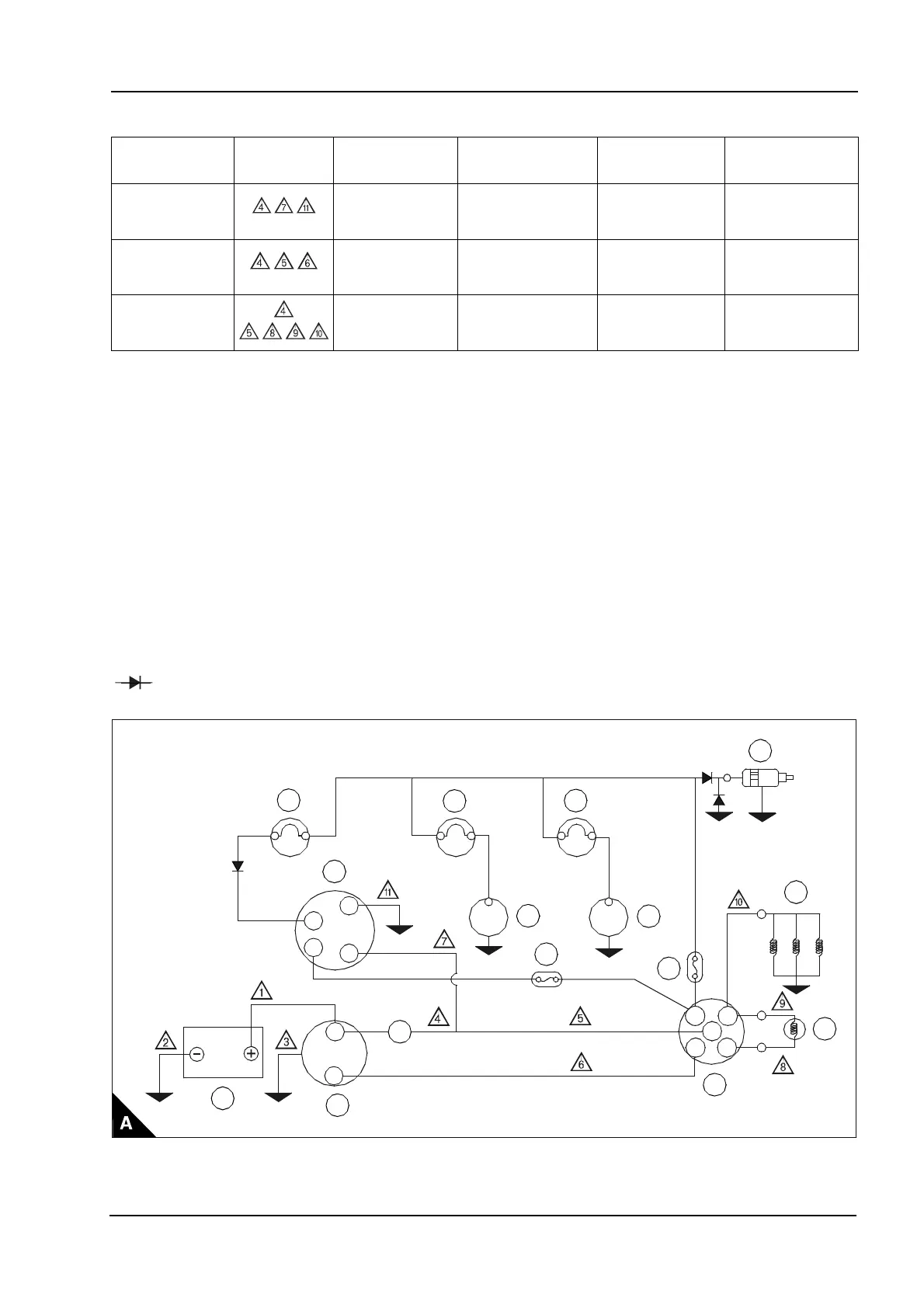

Wiring diagram 55 amp alternator - 103-15, 104-19, 104-22
Wiring diagram maximum circuit resistance
The resistance of battery cables 1, 2 and 3 must not exceed 0.0018
Ù.
Note: Maximum cable size for 375 lucar terminals on the alternator is 65/0,3 mm (4,5 mm
2
) therefore twin
cables are required at the connection to the alternator.
(1) Max current draw for standard oil pressure switch is 0.42 amps (5 Watt lamp max).
Circuit Cable number Circuit current
Maximum circuit
resistance
Maximum circuit
volt drop
Remarks
Alternator
charging
55 amp 0.009 Ù 0.5 Volt
See Glow Plugs
Circuit
Starter motor
solenoid
15.75 amp 0.04 Ù 0.63 Volt
See Glow Plugs
Circuit
STD glow plugs
(via glow signal)
(Peak max)
39 amp (3 cyl)
52 amp (4 cyl)
0.0128 Ù (3 cyl)s
0.0096 Ù (4 cyl)s
0.5 Volt
1 Alternator warning lamp
2 Alternator
3Battery
4 Starter motor
5 Oil pressure warning lamp
6 Oil pressure switch
(1)
7 Water temperature warning lamp
8 Thermostat switch
9 Key switch
10 Glow signal
11 Glow plugs
12 Fuse
13 Solenoid switch
14 A delayed fuse can be fitted if desired
= Diode. Capacity: Current 3 amp. Reverse Voltage: 600V. (This is mandatory).
B
B
B
S
AC
17
30
50 19
N
F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
