Workshop Manual, TPD 1377E, issue 4 61
100 Series
Bearing clearance
To check Operation 5-4
Special requirements
Use Plastigauge® to check the bearing clearance.
Tighten the main bearings to the torque settings given in Operation 5-5 for two and three cylinder engines or
Operation 5-6 for four cylinder engines.
Engine model
Clearance mm (in)
Standard Service limit
102-05, 103-07 0,031 - 0,079 (0.00122 - 0.00311) 0,20 (0.0079)
103-10 0,035 - 0,083 (0.00138 - 0.00327) 0,20 (0.0079)
103-13, 103-15, 104-19, 104-22 0,035 - 0,085 (0.00138 - 0.00335) 0,20 (0.0079)

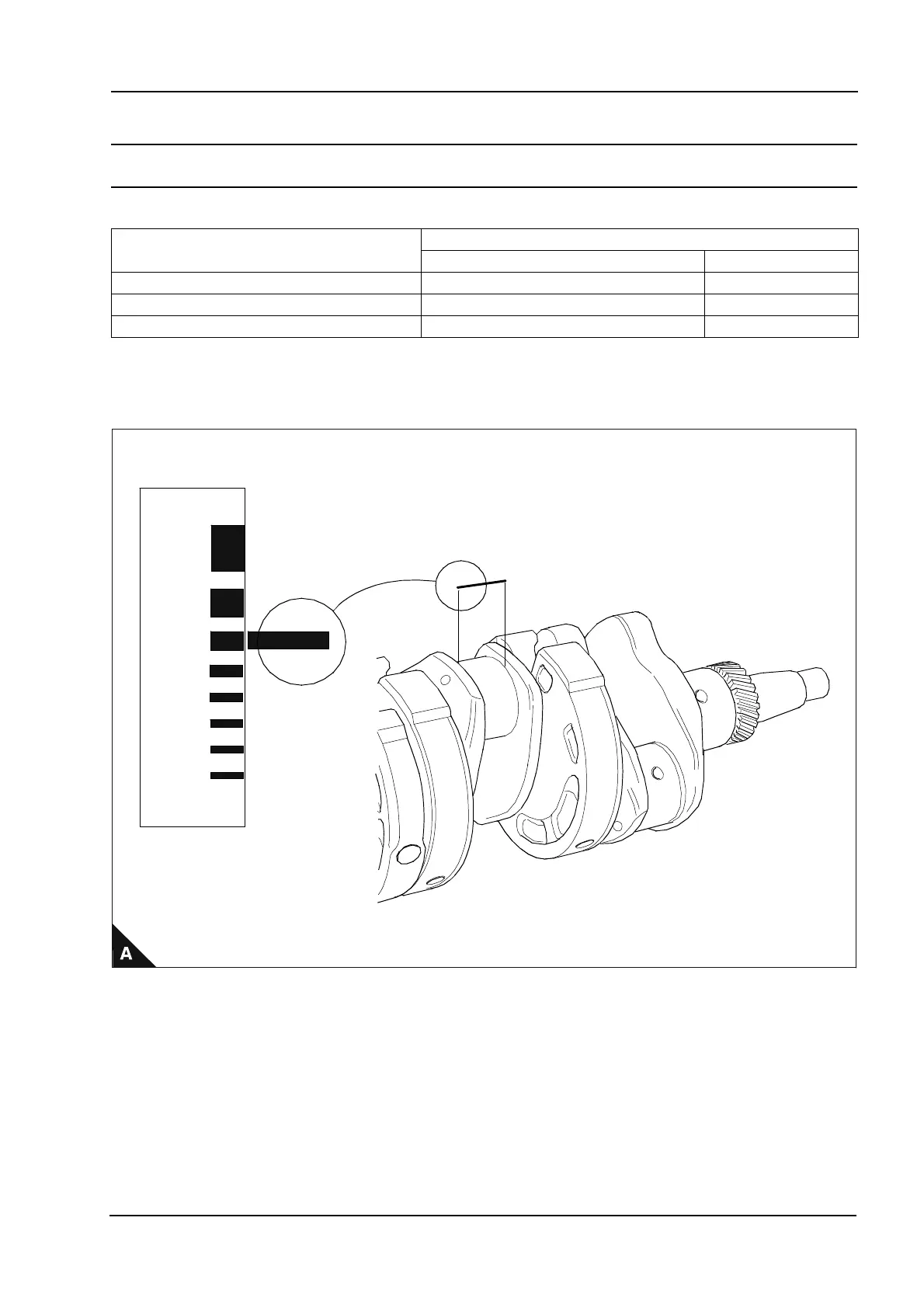

PLASTIGUAGEPLASTIGUAGEPLASTIGUAGE
1.01.01.0
2.0
2.5
3.0
4.04.04.0
5.0
6.06.06.0
7.0
INCHINCHINCH
