104 Workshop Manual, TPD 1377E, issue 4
100 Series
Vent points
To eliminate air from the fuel system Operation 11-8
To vent the 100 series fuel system

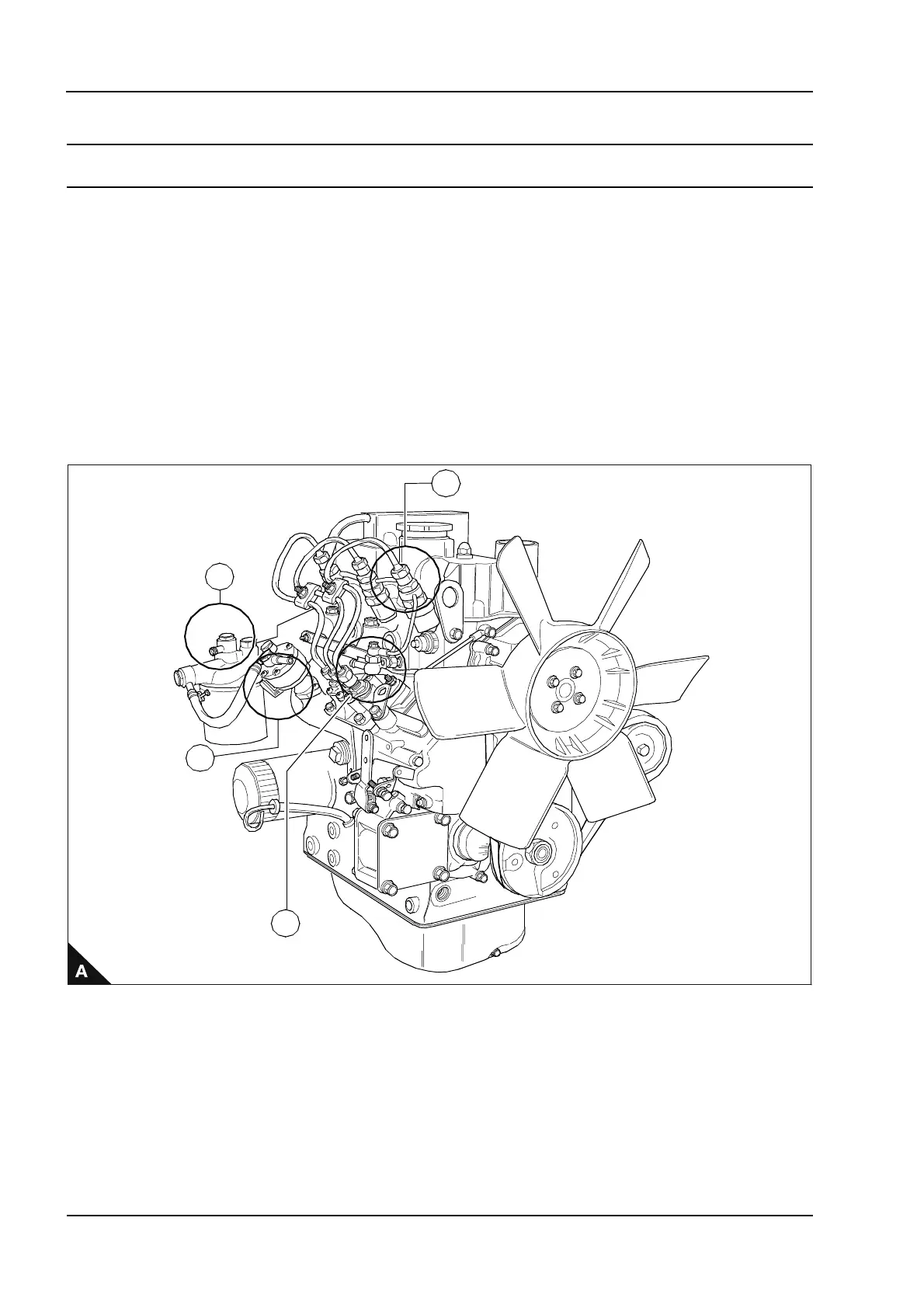

1 Identify the location of fuel lift pump (A3).
2 Locate the vent screw on top of the fuel filter (A2) and loosen off.
3 Operate the hand primer on lift pump until air free fuel flows. Tighten the vent screw.
4 Identify the vent screw on the fuel injection pump (A4) and loosen off. Operate the hand primer until air free
fuel flows. Tighten the vent screw.
5 Identify the fuel pipes from fuel injection pump to the atomiser (A1) and loosen them all off at the atomiser
end. Operate the starter motor until fuel flows from the injector pipes. Tighten all pipe connections.
The engine is now ready to start.
Caution: When the starter motor is operated, do not exceed continuous rotation for more than 15 second
periods. Wait for 30 seconds between periods of turning if fuel does not flow on initial rotation.
1
2
3
4
