Workshop Manual, TPD 1377E, issue 4 33
100 Series
Atomisers

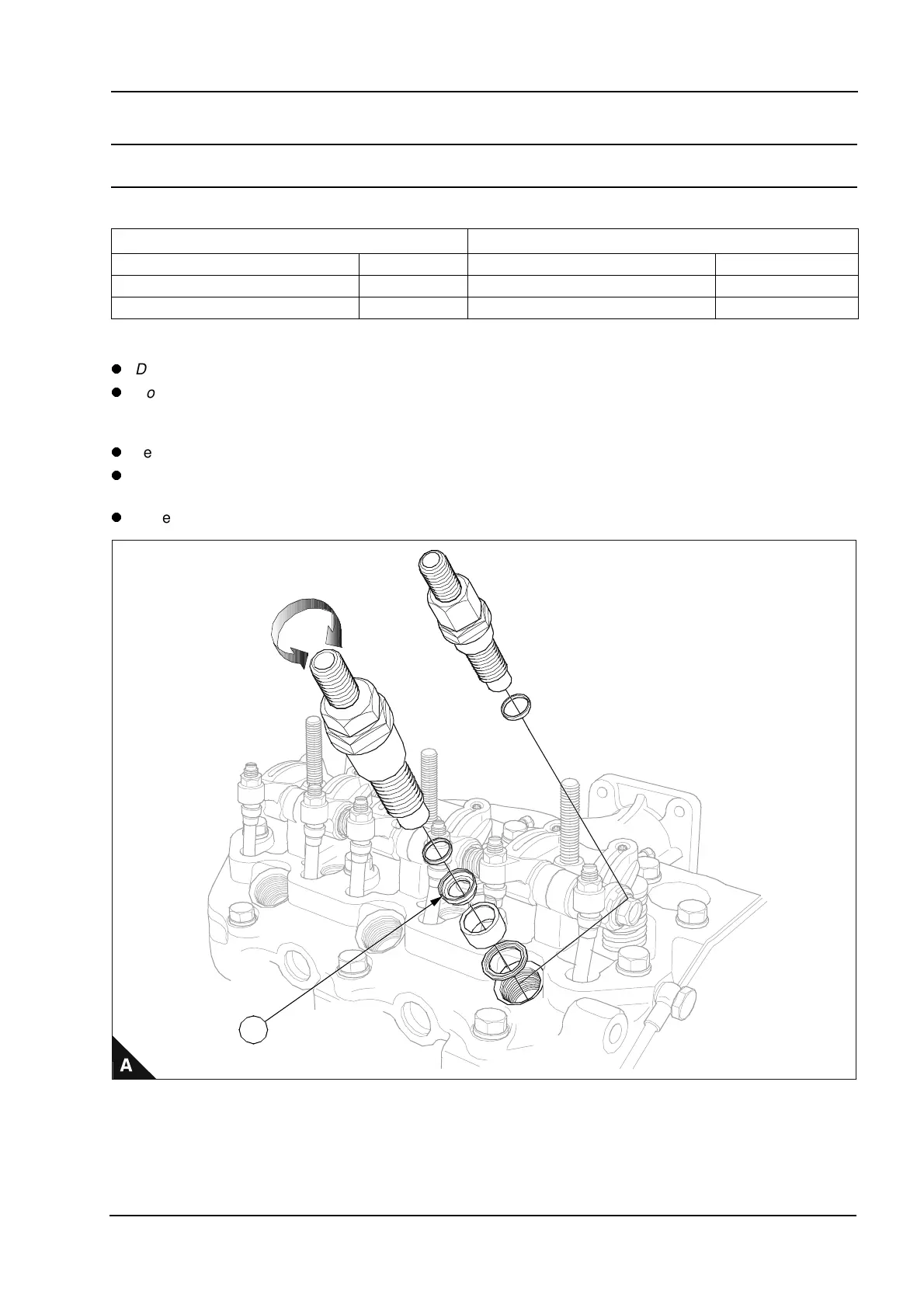

To remove and to fit Operation 3-9
Special requirements
Cautions:
Deep sockets should always be used during this procedure.
Connections should be blanked off until assembly.
Notes:
Item (A1) is used on 103-10 engines only.
For emissions approved engines. It is essential that the fuel adjustment screw is not altered from the
original setting.
For emissions approved engines. The maximum No Load Speed must be checked after assembly.
Torque Nm (lbf ft) kgf m Test Pressure kgf/cm² (lbf/in²) ats
102-05, 103-07 64 (47) 6,5 102-05, 103-07 120 (1707) 116
103-10 81 (60) 8,2 103-10 120 (1707) 116
103-13, 103-15, 104-19, 104-22 64 (47) 6,5 103-13, 103-15, 104-19, 104-22 150 (2133) 145
1
102-05
103-07
103-10
103-13
103-15
104-19
104-22
