Workshop Manual, TPD 1377E, issue 4 27
100 Series

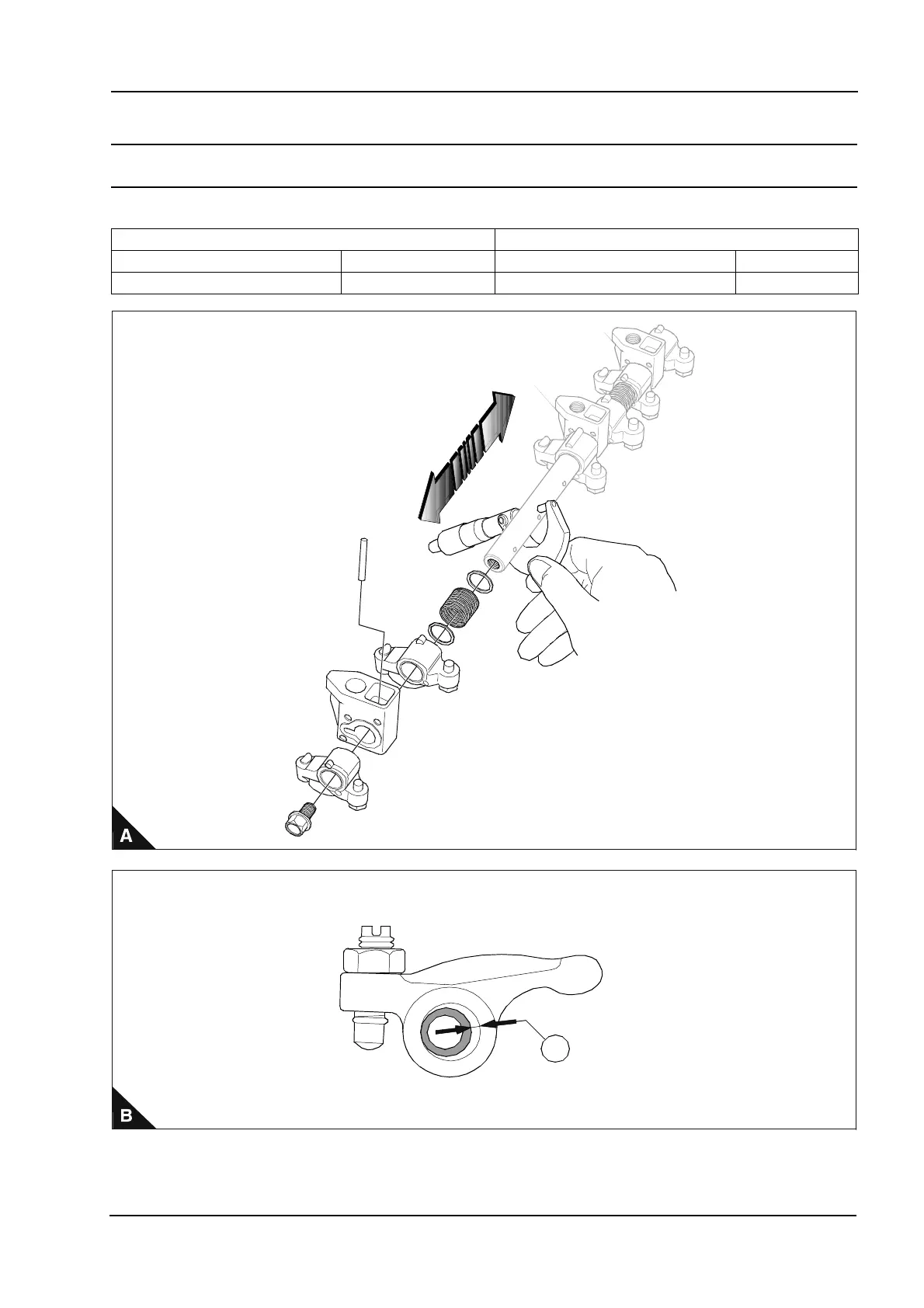

Rocker shaft (102-05, 103-07, 103-10)
To dismantle, to inspect and to assemble Operation 3-3
Special requirements
Diameter (A) mm (in) Clearance (B1) mm (in)
Standard Service limit Standard Service limit
11,65 - 11,67 (0.4587 - 0.4595) 11,57 (0.4555) max 0,032 - 0,068 (0.00126 - 0.00268) 0,2 (0.008) max
