Workshop Manual, TPD 1377E, issue 4 49
4
100 Series
Piston and connecting rod assemblies 4

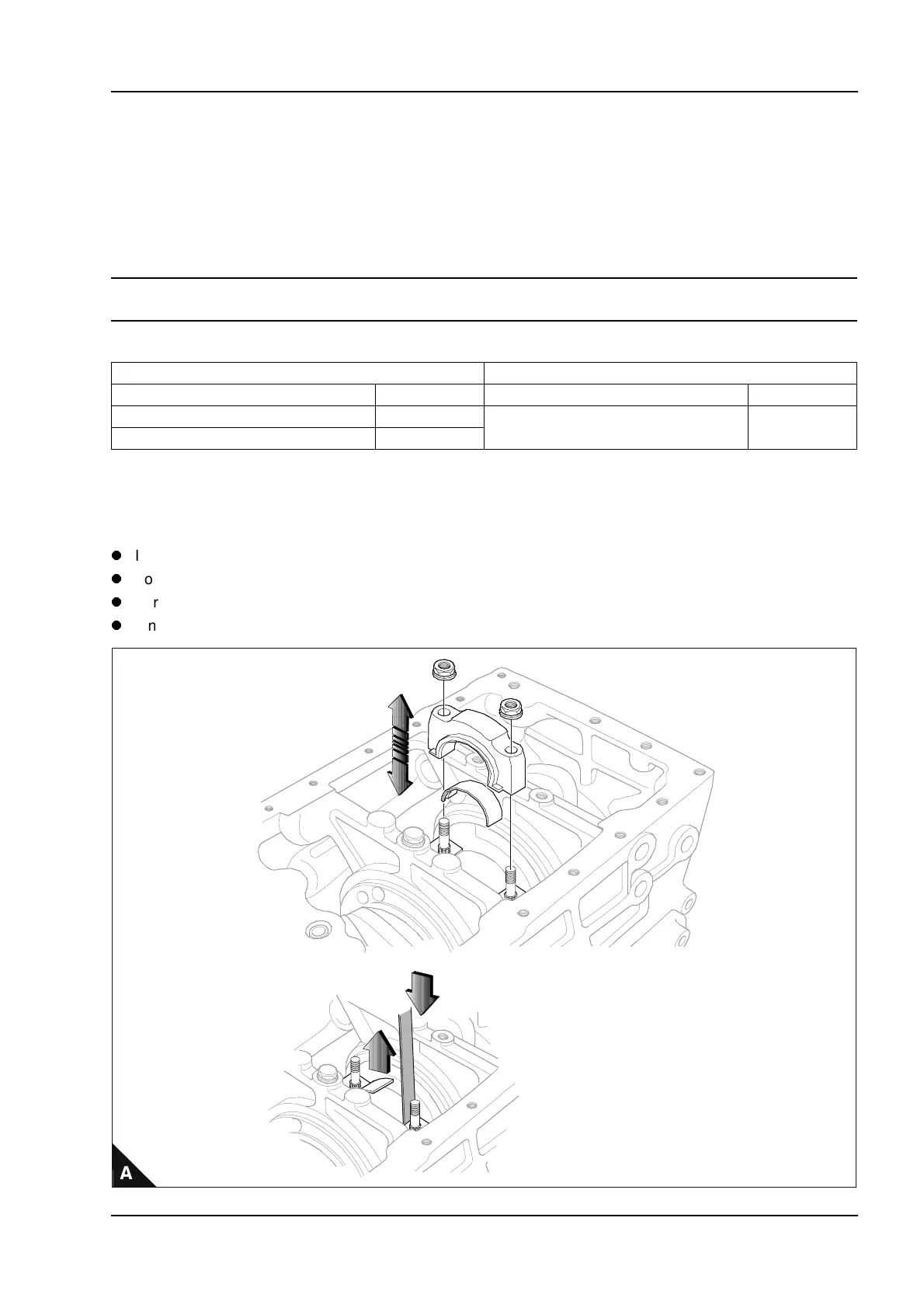

Big end bearing and cap
To remove and to fit Operation 4-1
Special requirements
Ensure that when the connecting rods are fitted an axial play (clearance) is provided.
During assembly apply a thin layer of clean engine lubricating oil to the crank pins with.
Notes:
Identify each rod/piston/cylinder pair on disassembly.
For emissions approved engines. The fuel adjustment screws must not be altered from the original settings.
For emissions approved engines. The maximum No Load Speed must be checked after assembly.
If new connecting rods are fitted, see Operation 3-13.
Torque Nm (lbf ft) kgf m Clearance mm (in)
102-05, 103-07 23 (17) 2,3 Standard Service limit
103-10 32 (24) 3,2
0,1 - 0,3 (0.004 - 0.012) 0,7 (0.276)
103-13, 103-15, 104-19, 104-22 52 (38) 5,3
