Perkins 103-13 - Head Bolts - All Variants

3
38 Workshop Manual, TPD 1377E, issue 4
100 Series
Head bolts - all variants

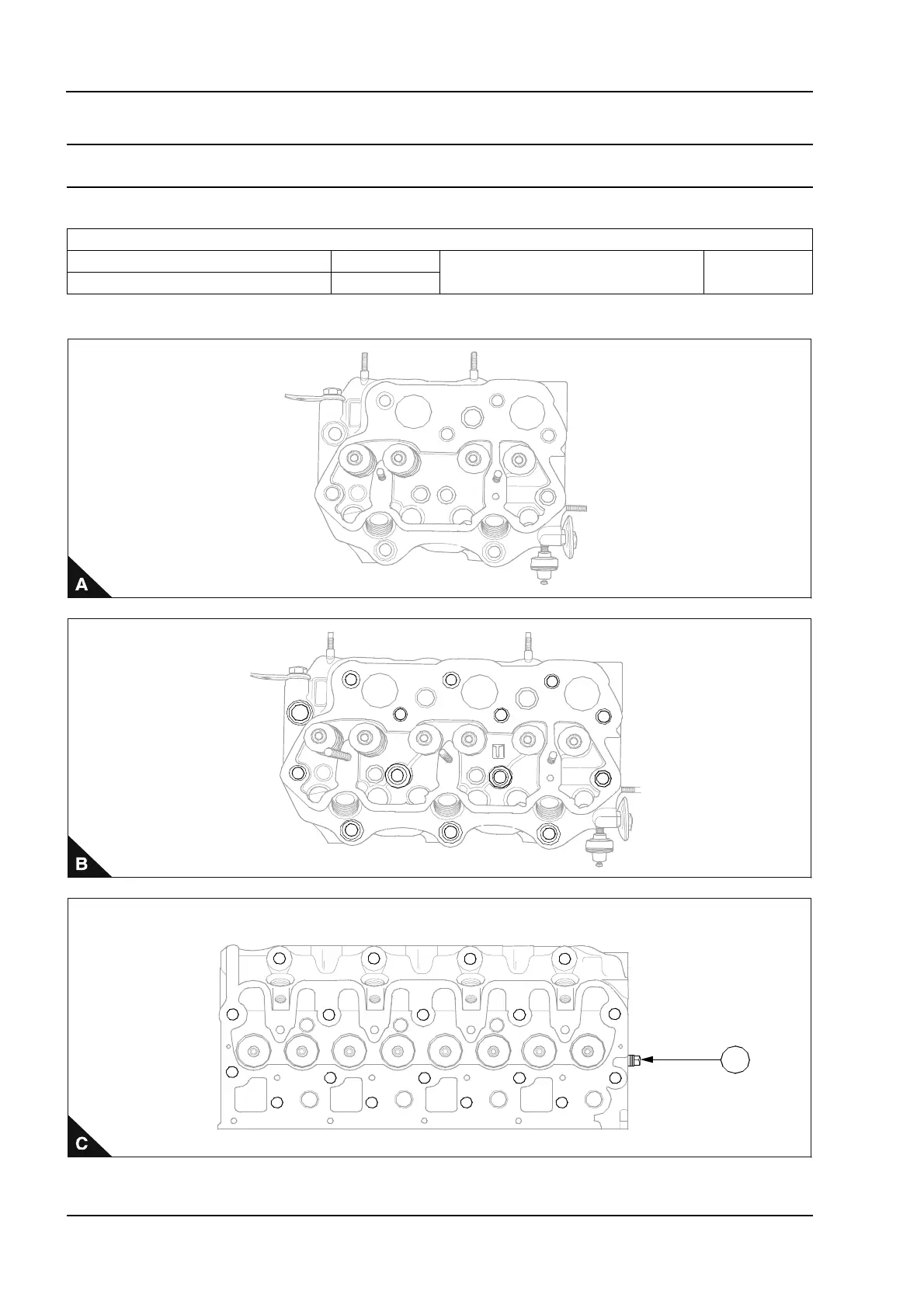

Tightening sequence Operation 3-14
Special requirements
Note: All torques should be rechecked after tightening. Item (C1) is present on 104-19 models only.
Torque Nm (lbf ft) kgf m
102-05, 103-07 37 (27) 3,7
103-13, 103-15, 104-19, 104-22 100 (74) 10,2
103-10 51 (38) 5,2
102-05
1
2
7
108
9
5
4
3
6
103-07
103-10
103-13
103-15
1
2
3
4
6
5
7
8
9
10
11
12
13
14
104-19
104-22
3
6
1
8
10
7
9
16
18
17
15
5
13
11
4
2
12
14
1
