Workshop Manual, TPD 1377E, issue 4 47
100 Series

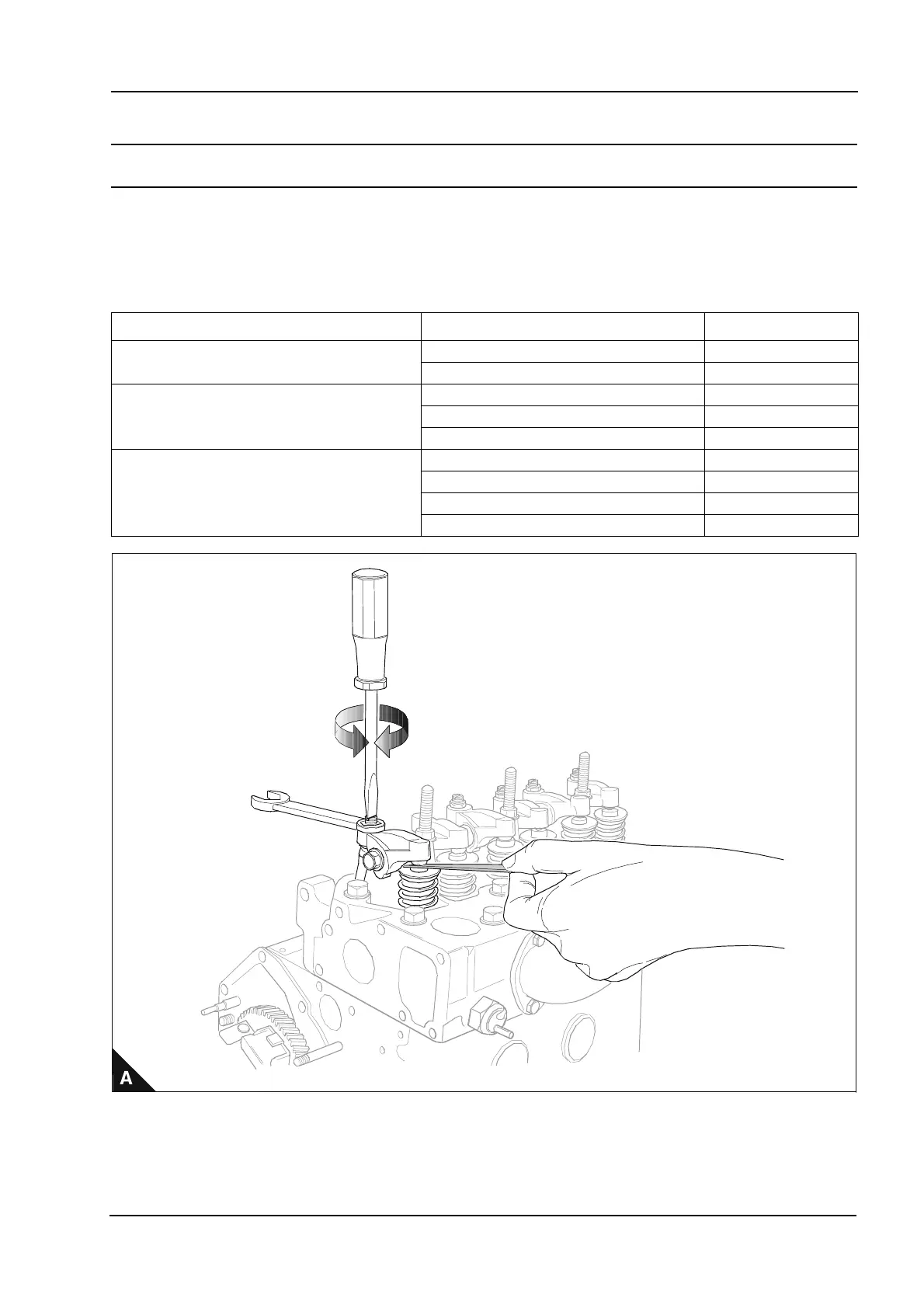

Valve tip clearance
To check Operation 3-23
The valve sequence is viewed from the front of the engine.
Rotate the crankshaft clockwise when viewed from the front.
Adjust the clearance of both intake and exhaust valves to 0,2 mm (0.0078 in).
Note: Always adjust when the engine is cold.
Engine model Valve overlap Adjust valves
2 Cylinder engines
No.1 Cyl 3 and 4
No.2 Cyl 1 and 2
3 Cylinder engines
No.1 Cyl 3 and 6
No.2 Cyl 2 and 5
No.3 Cyl 1 and 4
4 Cylinder engines
No.4 Cyl 1 and 2
No.2 Cyl 5 and 6
No.1 Cyl 7 and 8
No.3 Cyl 3 and 4
