Oil pipes
To remove and to fit Operation 3-8
Special requirements
Notes:
Be aware of the oil restriction in the banjo bolts (A1).

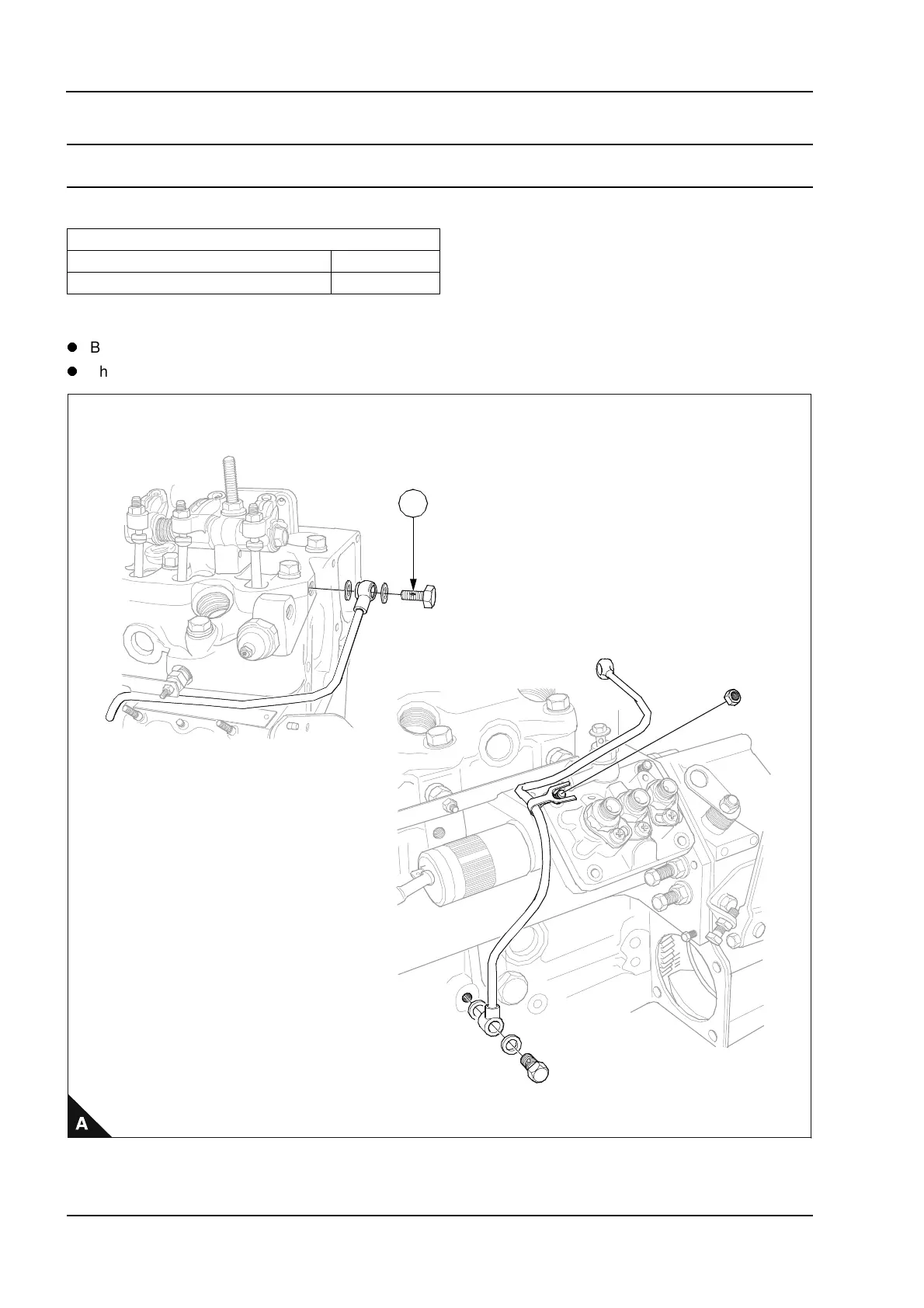

The diagram below shows a typical arrangement only.
Torque Nm (lbf ft) kgf m
102-05, 103-07, 103-10 11 (8) 1,1
103-13, 103-15, 104-19, 104-22 12 (9) 1,2
