100 Series

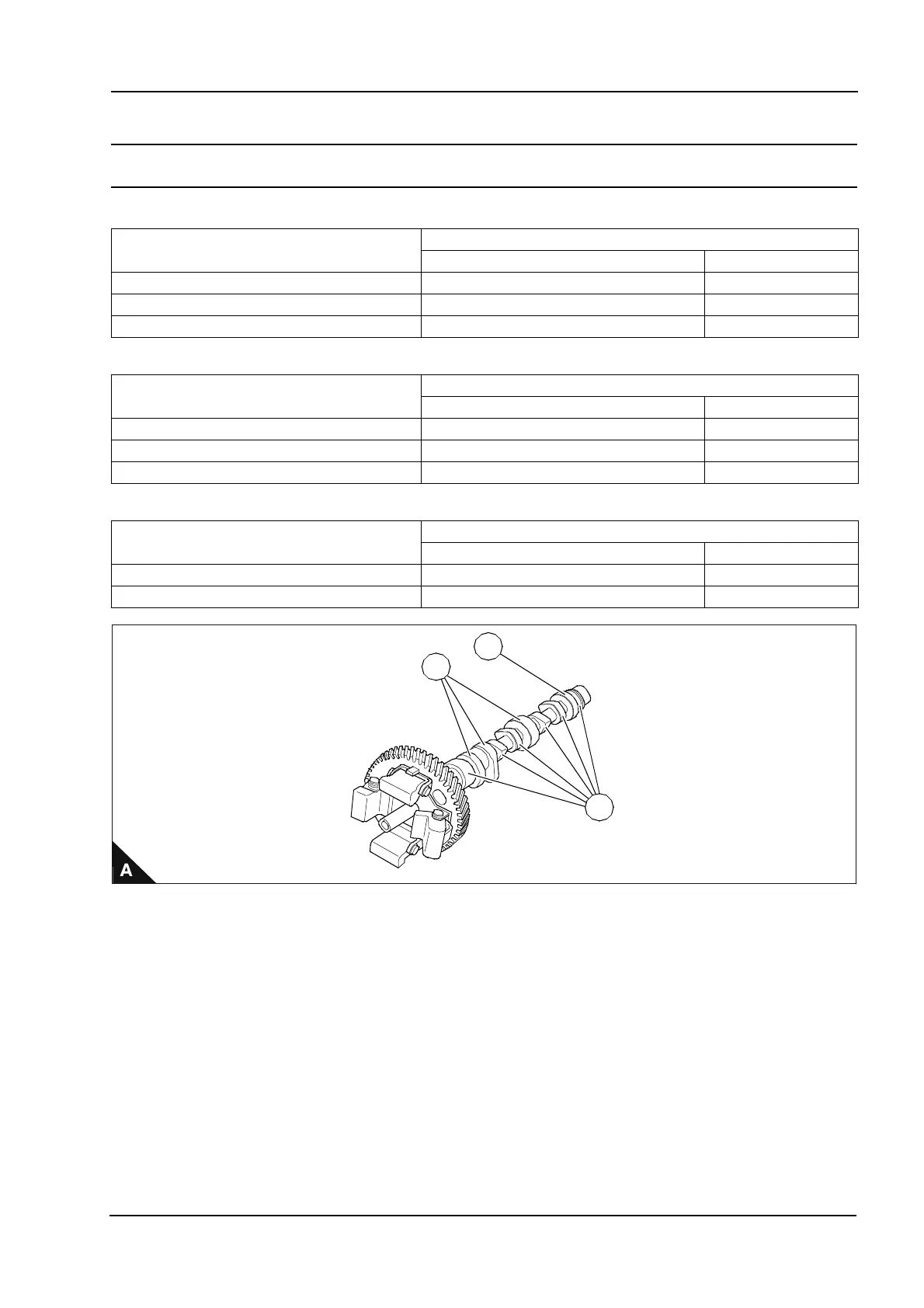

Camshaft assembly
To inspect Operation 6-7
Cam height (intake and exhaust cams) (A1)
Height of cam for injection pump (A2)
Height of cam for fuel feed pump (A3)
Engine model
Height mm (in)
Standard Service limit
102-05, 103-07 26,565 - 26,620 (1.04590 - 1.04803) 26,1 (1.028)
103-10 26,445 - 26,500 (1.04114 - 1.04330) 26,1 (1.028)
103-13, 103-15, 104-19, 104-22 34,065 - 34,120 (1.34114 - 1.34330) 33,7 (1.327)
Engine model
Height mm (in)
Standard Service limit
102-05, 103-07 34,480 - 34,520 (1.3575 - 1.3591) 34,3 (1.351)
103-10 33,940 - 34,060 (1.3362 - 1.34094) 33,8 (1.331)
103-13, 103-15, 104-19, 104-22 41,940 - 42,060 (1.65120 - 1.65590) 41,8 (1.645)
Engine model
Height mm (in)
Standard Service limit
102-05, 103-07, 103-10 27,900 - 28,000 (1.09842 - 1.10236) 27,0 (1.063)
103-13, 103-15, 104-19, 104-22 31,900 - 32,000 (1.25590 - 1.25984) 30,0 (1.181)
3
2
1
