70 Workshop Manual, TPD 1377E, issue 4
100 Series
To fit Operation 6-6
Cautions:
The new camshaft is not interchangeable with the old camshaft.
If a new camshaft is fitted, new cam followers of the correct type must be fitted as well.
From engine serial number 333367J the camshaft and the cam followers fitted to the 103-07 engine have
changed.
The width of the injection cams for N°2 and N°3 cylinders have been increased by 0,5 mm.
To prevent interference with the wider injection cam on the camshaft, the diameter of the tappet end of the
exhaust cam follower for N°1 cylinder has been decreased by 1,0 mm to 17 mm.
B

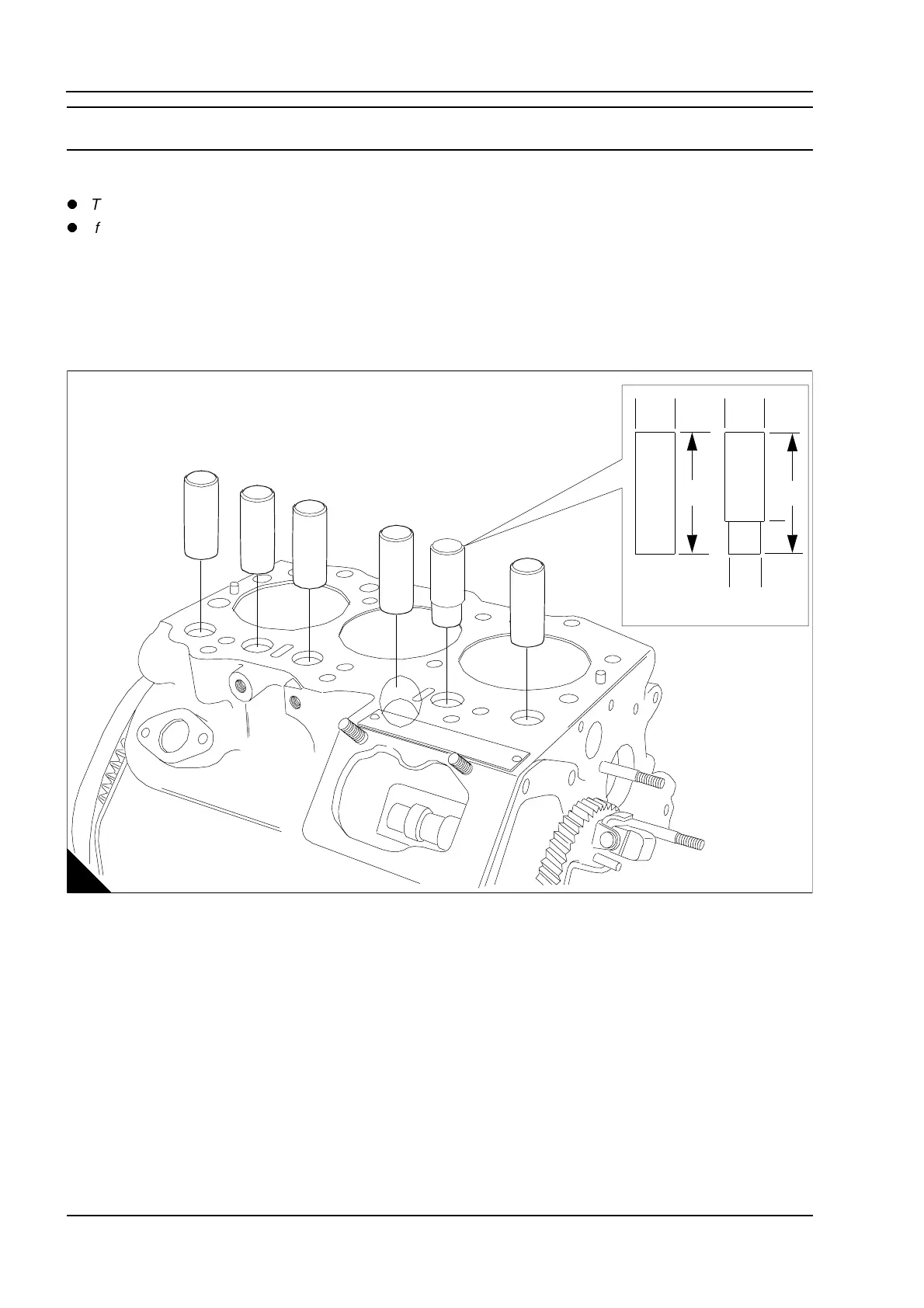

Ø 18 Ø 18
Ø 17
40
10.5
40
Tappet
Current New
120116100 120116180
