Workshop Manual, TPD 1377E, issue 4 85
8
100 Series
Engine timing 8
Fuel injection pump timing
To check timing Operation 8-1
Special requirements
1
Set the piston for number 1 cylinder to TDC on the compression stroke. Turn the crankshaft counter-
clockwise a quarter of a revolution.

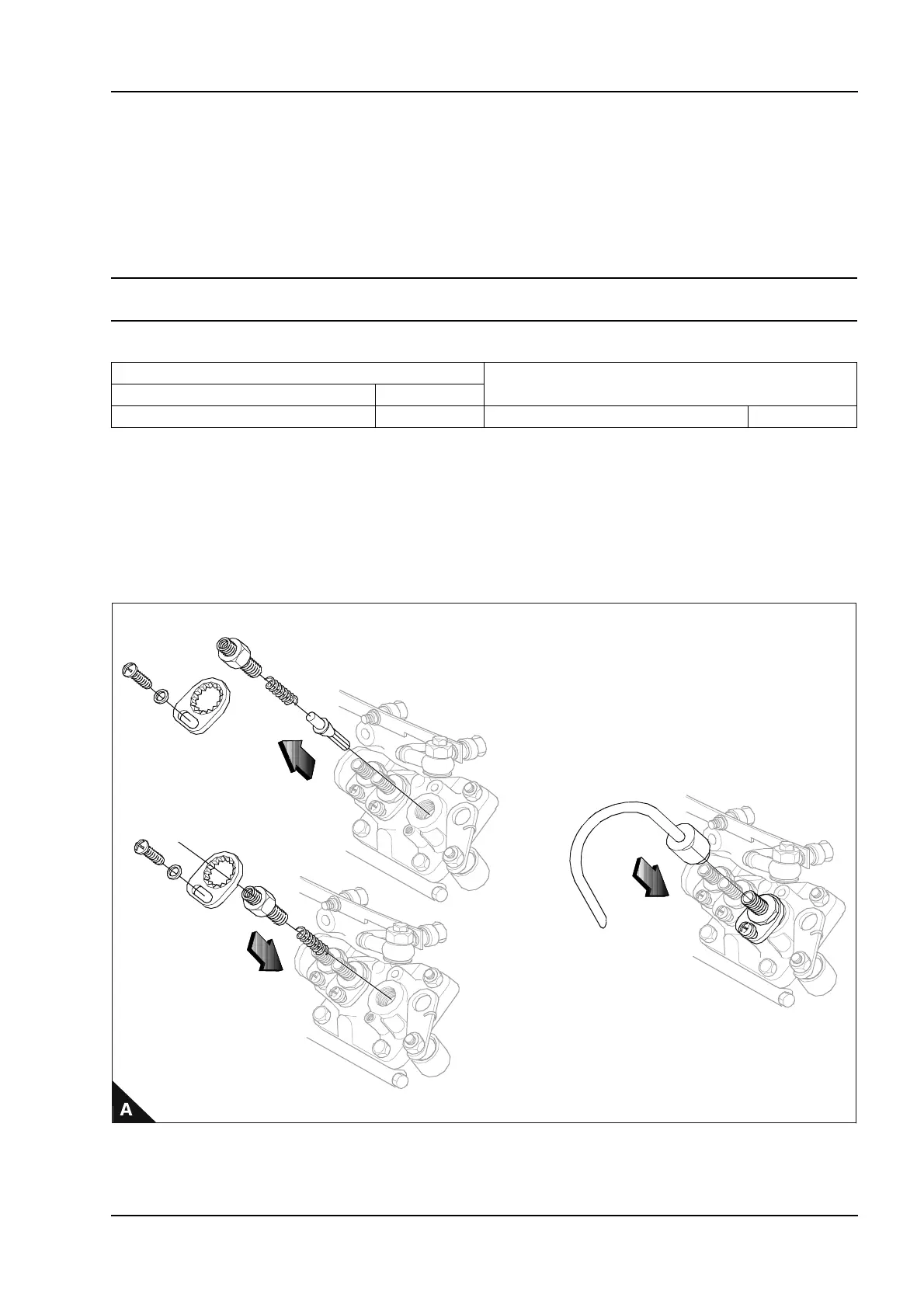

2 Disconnect or remove the ESOS, HP pipes and LP fuel inlet pipes from pump (A).
3 Ensure the throttle lever is held in the maximum fuel position after the procedure.
4 Remove the delivery valve holder for number 1 cylinder and remove the delivery valve. Store the delivery
valve in appropriate clean fuel until assembly.
Note: The fuel pump may need to be moved to an upright position to remove and to fit the delivery valves.
Continued
Special tools
Torque Nm (lbf ft) kgf m
Description Part number
Fuel pump spill pipe 21825680 Delivery valve holder 42 (31) 4,2
