5 Connect a suitable tank, which has a tap and contains 0,2 litres (¼ pint) of clean fuel, to the pump inlet.

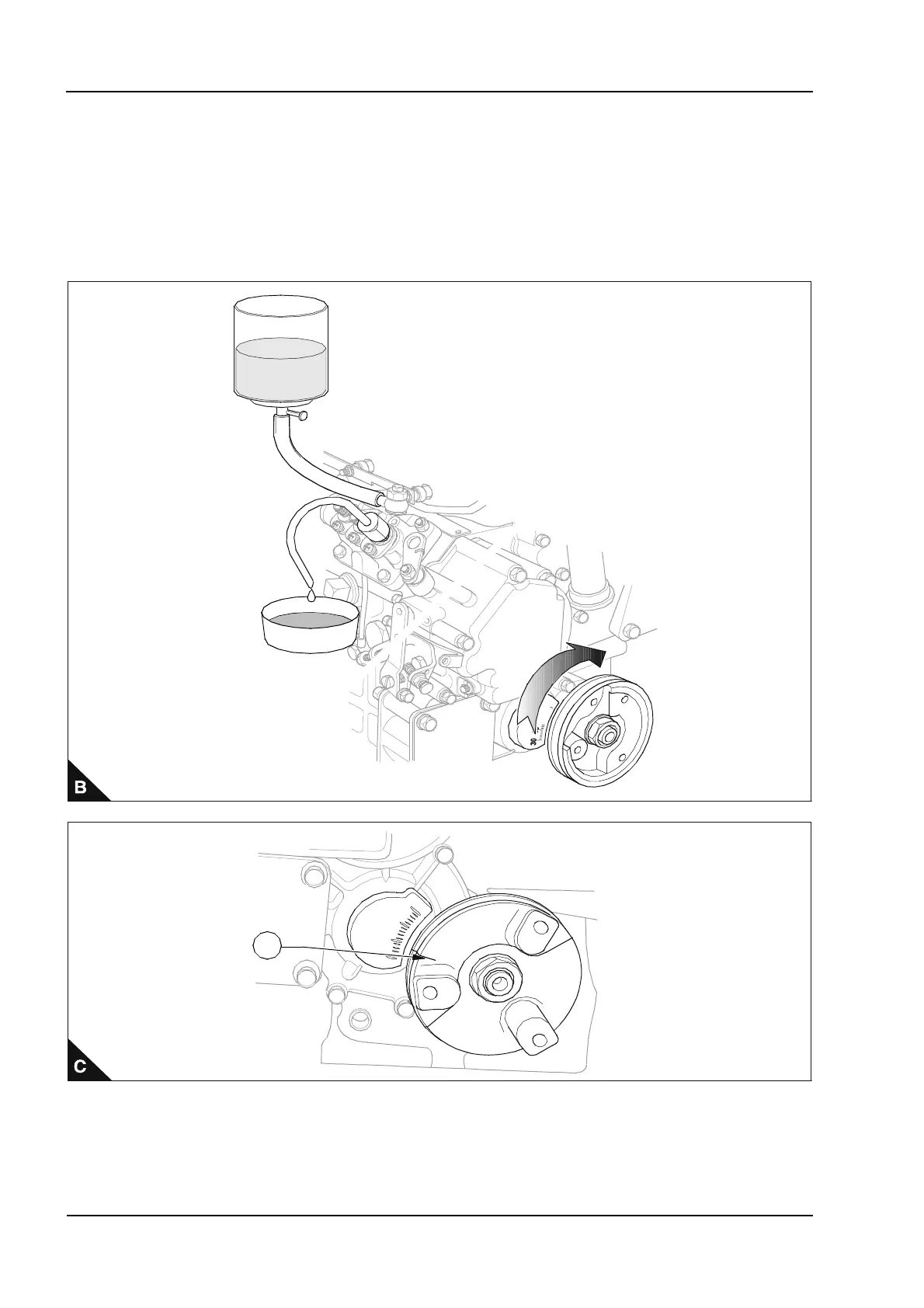

6 Connect the fuel pump spill pipe to the delivery valve holder for number 1 cylinder. Put a suitable waste fuel
container below the pipe neck and open the tap, if correctly set fuel should flow (B).
Note: The outlet from the tank should be approximately 152 mm (6 in) above the pump.
7 Turn the crankshaft slowly until the flow of fuel reduces to a drop which falls from pipe neck every 7-10
seconds. This is then the timing point.
8 Use the value shown by the timing mark (C1) with the injection timing tables given in "Injection timing" on
page 15.
