Workshop Manual, TPD 1377E, issue 4 43
100 Series
Cylinder head
To check the distortion of the lower face Operation 3-19
Special requirements

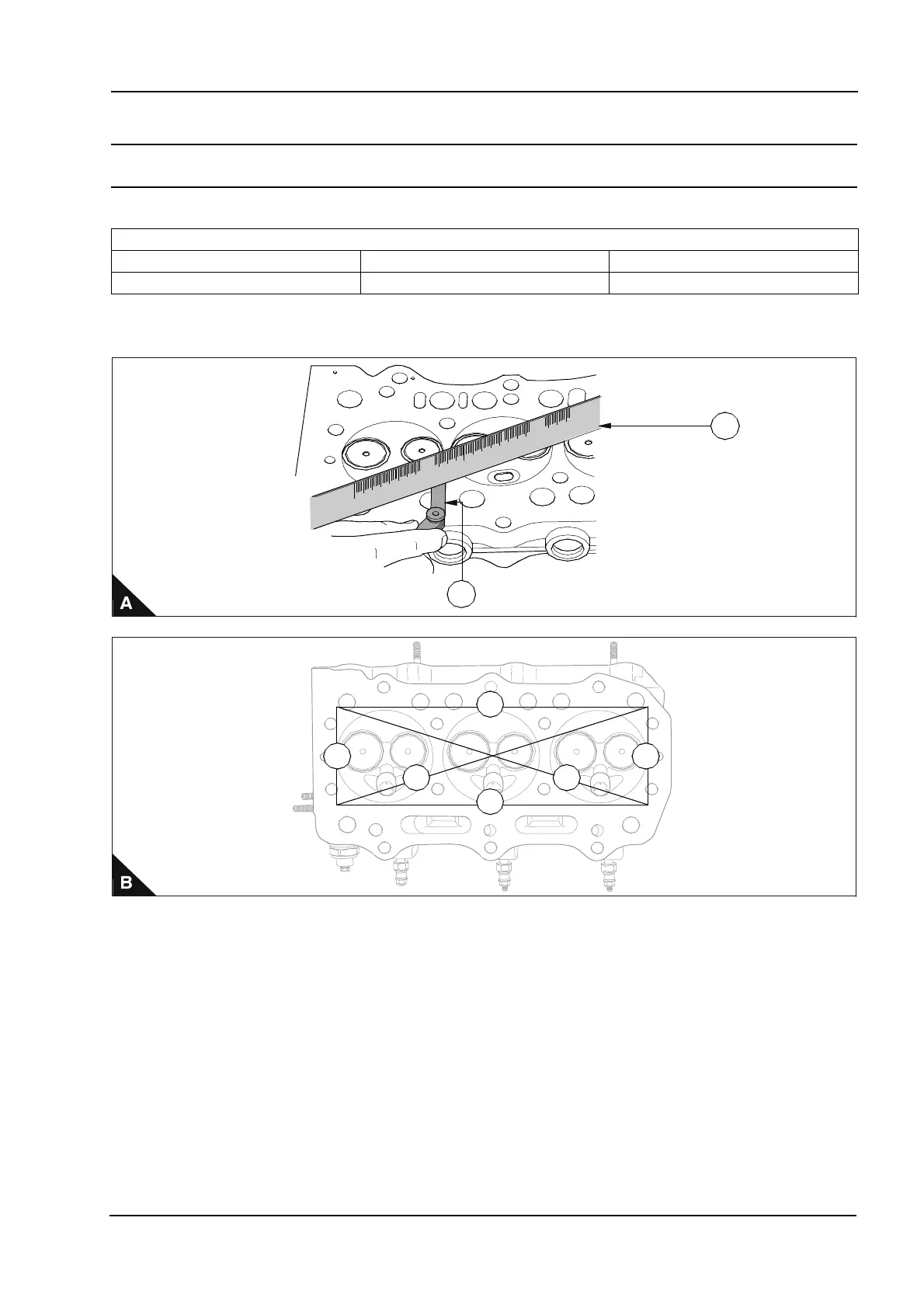

Using a straight edge (A1) and feeler gauge (A2) check the six positions (lines B1 to B6) for distortion. Do not
machine beyond the maximum limit.
Maximum machine limit mm (in)
Distortion Max service limit Max regrind
0,05 (0.002) OR LESS 0,12 (0.005) 0,15 (0.006)
1
2
3
1
2
4
65
