Workshop Manual, TPD 1377E, issue 4 105
12
100 Series
Cooling system 12

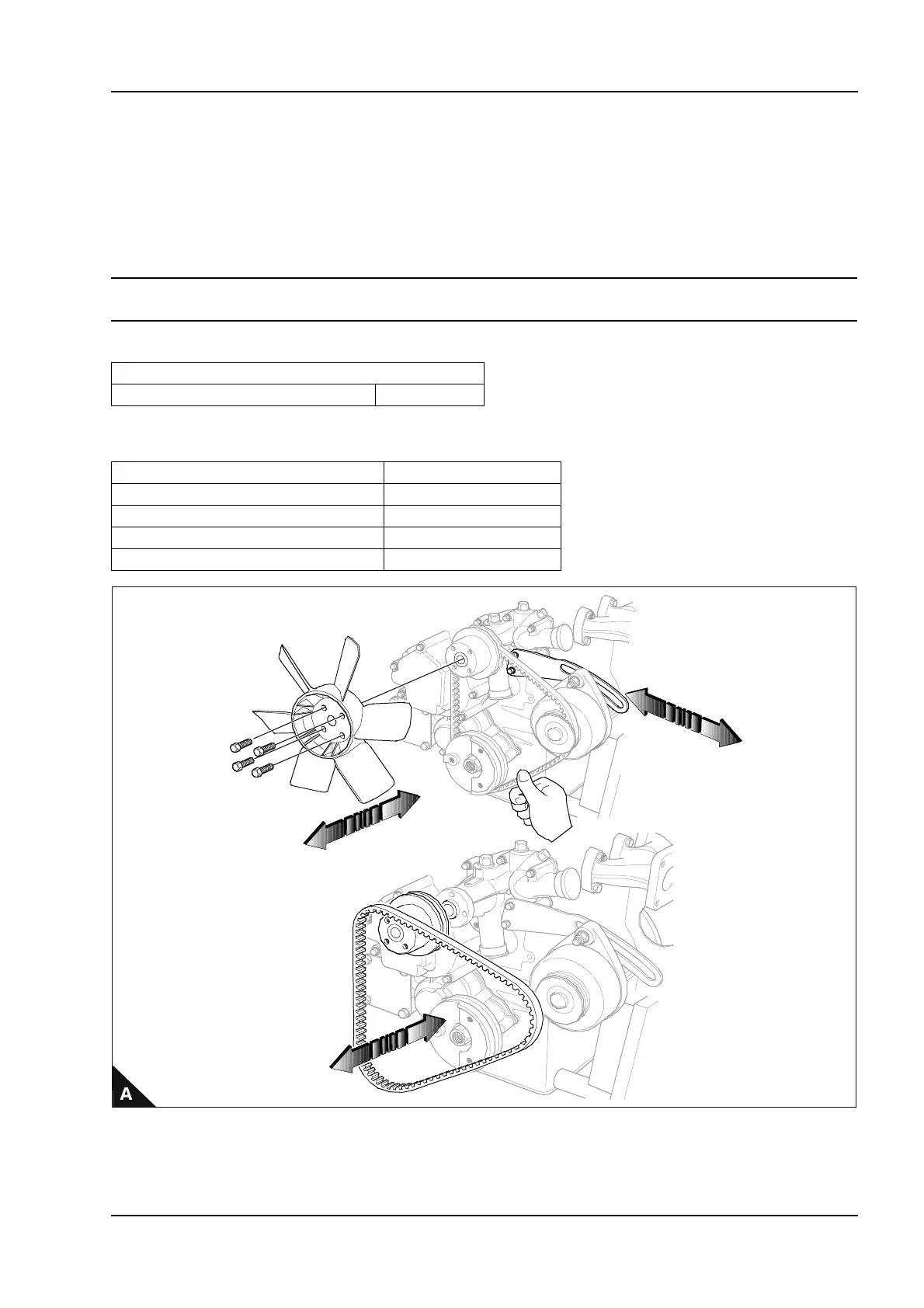

Fan and mounting
To remove and to fit Operation 12-1
Special requirements
Depress the fan belt at the centre between the crankshaft pulley and the alternator pulley with a finger force of
49 N (11 lbf) 5 kgf, approximately. The belt deflection is shown in the table below:
Torque Nm (lbf ft) kgf m
Setscrews 11 (8) 1,1
Engine type Belt deflection
102-05, 103-07 4 mm Approx.
103-10 5 mm Approx.
103-13, 103-15, 104-19 6 mm Approx.
104-22 7 mm Approx.
