100 Workshop Manual, TPD 1377E, issue 4
100 Series
To remove and to fit the latest fuel lift pump Operation 11-4

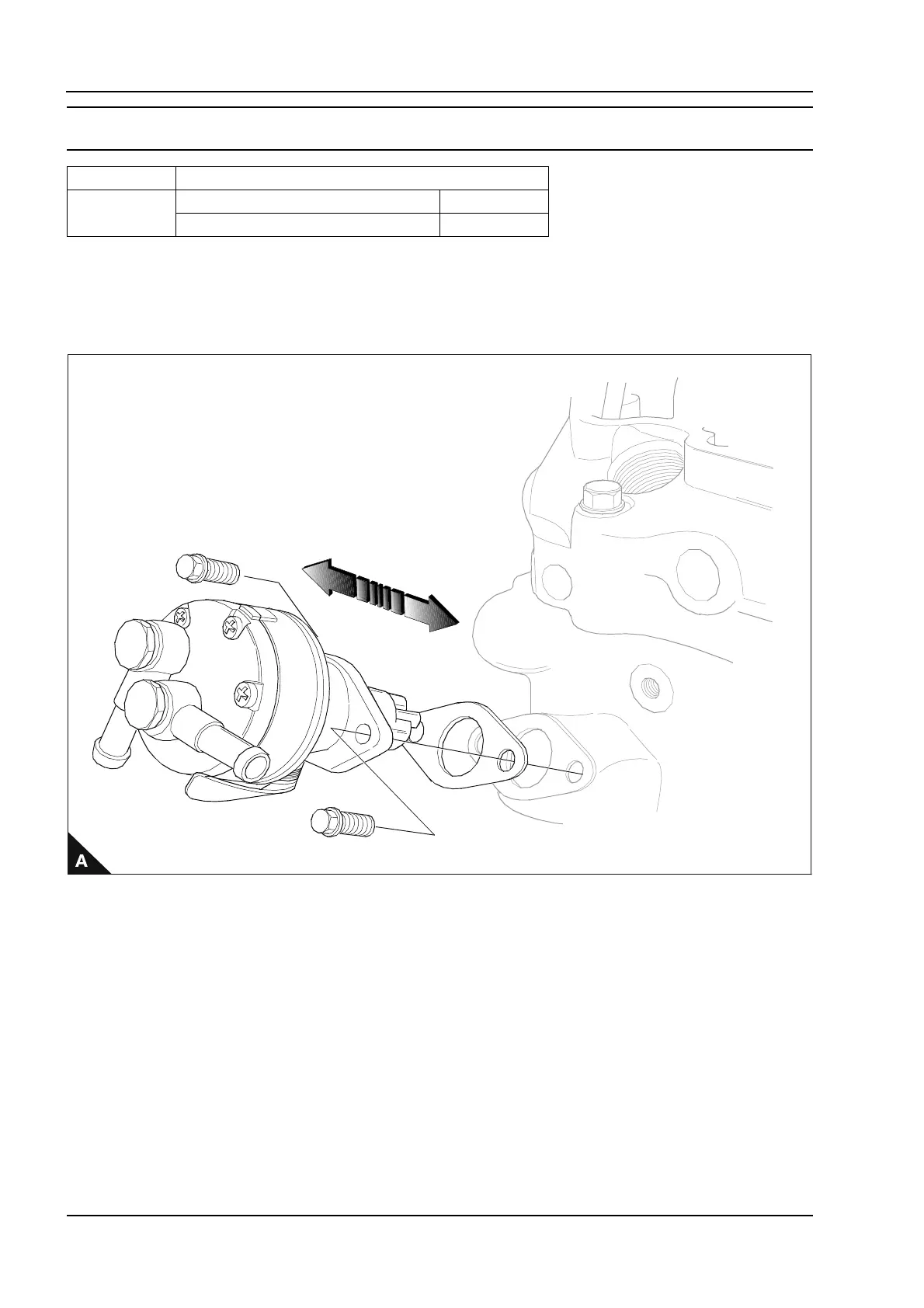

The fuel inlet for the fuel lift pump can rotate 360° and is adjustable in 15° increments.
The fuel lift pump flange has two sets of locating holes this allows the pump to be fitted in four positions for the
outlet connection.
Note: Camshaft eccentric must be in the minimum lift position for the priming lever to operate correctly.
Engine Torque Nm (lbf ft) kgf m
All models
Lift pump setscrew 6 (4.4) 0,6
Lift pump inlet adjusting bolt (A1) 2,5 (1.8) 0,25
